Quick Details
-
Opening height:
-
560mm
-
Effective stroke:
-
200mm
-
Worktable effective area:
-
400mm
-
Blanking hole diameter:
-
60mm
-
Color:
-
Customizable
-
Product name:
-
Power Press Machine
-
Application:
-
Metal Sheet Stamping
-
Function:
-
Punching Ang Press
Quick Details
-
Place of Origin:
-
Shandong, China
-
Nominal force:
-
200kn/300kn/500kn
-
Pressure of hydraulic system:
-
32.5Mpa
-
Opening height:
-
560mm
-
Effective stroke:
-
200mm
-
Worktable effective area:
-
400mm
-
Blanking hole diameter:
-
60mm
-
Color:
-
Customizable
-
Product name:
-
Power Press Machine
-
Application:
-
Metal Sheet Stamping
-
Function:
-
Punching Ang Press

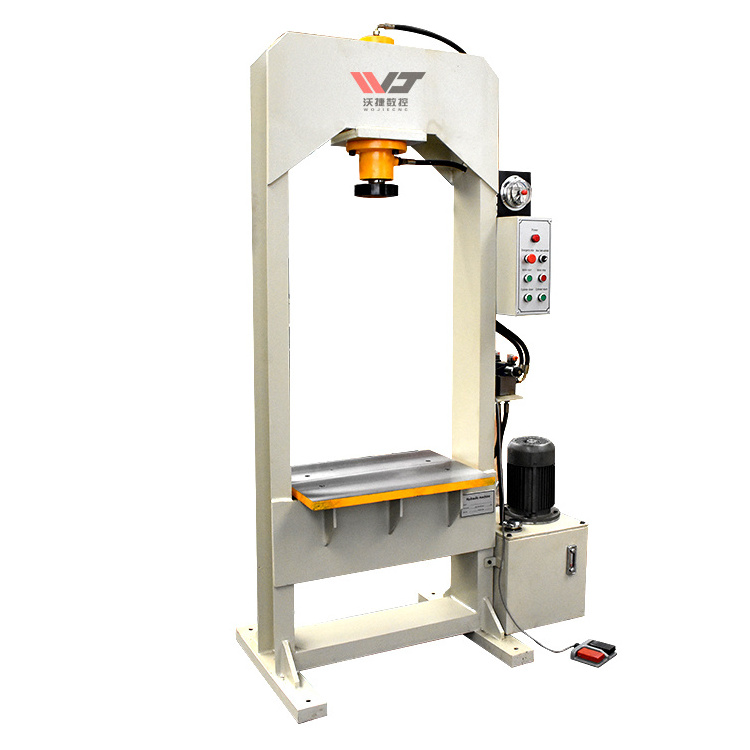

Y32-10 Four column hydraulic press water tank panels hydraulic press
Product Application
1. Gateway steel frame structure
2. Adopts the hydraulic ram with manual and foot-operated functions
3. Applied in dismounting, molding, aligning in the vehicle repairing
4. The manual hydraulc press are used for assembling, dismantling, alignment, stamping, drawing, straightening and punching.
5. It features with small volume, high pressure, simple structure and light weight.
6. mandrel presses have the advantages of small volume ,simple structure ,and little cost.The machine is suitable for operating in the open alror the other special situation.
|
Specification |
Unit |
YM-20 |
YM-40 |
Y-63 |
Ym-100 |
|
Nominal force |
Kn |
200 |
400 |
630 |
1000 |
|
Max pressure of hydraulic system |
Mpa |
31.5 |
31.5 |
31.5 |
31.5 |
|
Max. Opening height |
mm |
560 |
560 |
560 |
600 |
|
Effective stroke |
mm |
200 |
200 |
220 |
220 |
|
Worktable effective area (Left and right) |
mm |
400 |
400 |
400 |
550 |
|
Worktable effective area (front and back ) |
mm |
450 |
500 |
500 |
500 |
|
Blanking hole diameter |
mm |
60 |
80 |
100 |
140 |
|
Motor power |
Kw |
3 |
3 |
5.5 |
5.5 |
The main features:
1.This machine can preset pressure
2.Can be used for production and processing
3.Correct deformed work piece .
4.Dismounting all kinds of close fitting component
5.Used in alignment and stamping of plates and sectional material
