The Preformed Suspension Clamp is the connecting hardware of ADSS cable which hanging in transmission line pole (tower). It can reduce static stress at the support point, improve cable ant-vibration ability, and cushioned against the dynamic stress of Aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hunan, China
-
Application:
-
Telecommunication,communication cables
-
Product name:
-
Hanging Fiber Optic Cable Suspension Clamp
-
Material:
-
Alimunium alloy,Stainless Steel,Hot dip galvanized steel,
-
Color:
-
Silver,White
-
Packing:
-
Export Wooden case or As required
-
Installation:
-
Hanging cable fittings
-
Suitable diameter:
-
8-20mm
-
Usage1:
-
Installed On Terminal Pole or Tower
-
Usage 2:
-
ADSS OPGW Fiber Optic Cable accessories Fittings
-
Certification:
-
ISO9001
Quick Details
-
Brand Name:
-
SL
-
Type:
-
Hanging cable hardware
-
Model Number:
-
ADSS Cable Suspension clamp
-
Place of Origin:
-
Hunan, China
-
Application:
-
Telecommunication,communication cables
-
Product name:
-
Hanging Fiber Optic Cable Suspension Clamp
-
Material:
-
Alimunium alloy,Stainless Steel,Hot dip galvanized steel,
-
Color:
-
Silver,White
-
Packing:
-
Export Wooden case or As required
-
Installation:
-
Hanging cable fittings
-
Suitable diameter:
-
8-20mm
-
Usage1:
-
Installed On Terminal Pole or Tower
-
Usage 2:
-
ADSS OPGW Fiber Optic Cable accessories Fittings
-
Certification:
-
ISO9001
Product Description

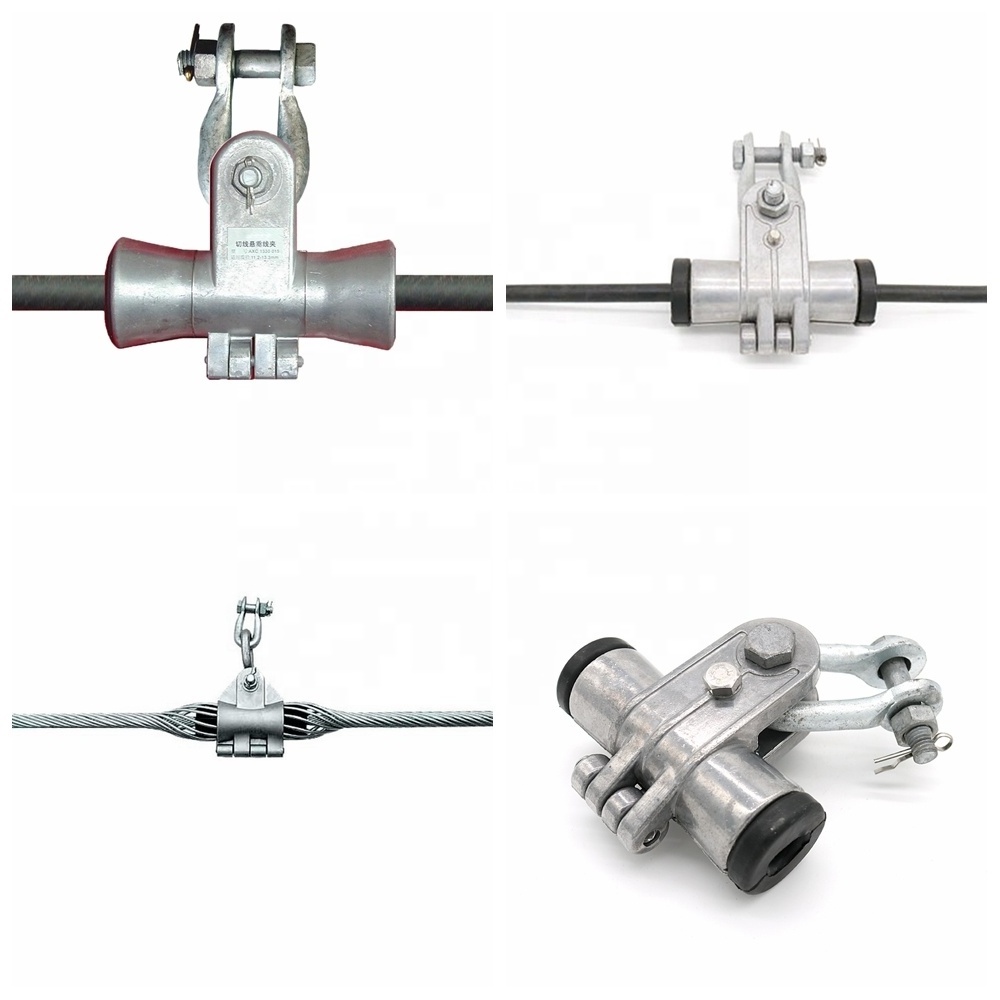

Preformed ADSS Suspension Clamp Kit Hang Suspension Pole Clamp For ADSS Cable
Suspension Clamp
The Preformed Suspension Clamp is the connecting hardware of ADSS cable which hanging in transmission line pole (tower).
It can reduce static stress at the support point, improve cable anti-vibration ability, and cushioned against the dynamic stress of Aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.
More Related Products
Note:we are manufacturer of ADSS OPGW others fiber optic cable and related fittings/accessories,If you need more information,welcome to contact me or send a inquiry ,thanks!
Technical Data
Application Guide:
1.It is designed to connect corner/elevation angel smaller than 25°Pole and the Cable, a unit of
Suspension Sets per pole.
2. Select the specification model corresponding to the appropriate cable range, Load-weight or Span
Length.
3.It is suitable to OPGW/ADSS Cables.
4.Select different connection hardware matching the Suspension Set according to the actual line.
Suspension Sets per pole.
2. Select the specification model corresponding to the appropriate cable range, Load-weight or Span
Length.
3.It is suitable to OPGW/ADSS Cables.
4.Select different connection hardware matching the Suspension Set according to the actual line.
One set of Tangential Suspension Clamp includes Housing, Rubber Insert and a Shackle U-4.
Recommended span length: 100m
|
Model
|
Suitable cable diameter
|
Length
|
Rubber Model
|
|
AXJ1110 20
|
9.0-11.1mm
|
116
|
AXJ1110
|
|
AXJ1330 20
|
11.2-13.3mm
|
116
|
AXJ1330
|
|
AXJ1550 20
|
13.4-15.5mm
|
116
|
AXJ1550
|
|
AXJ1770 20
|
15.6-17.7mm
|
116
|
AXJ1770
|
