Hotel flush mount LED linear gypsum ceiling light Profile linear led light in ceiling
Hotel flush mount LED linear gypsum ceiling light Profile linear led light in ceiling
Hotel flush mount LED linear gypsum ceiling light Profile linear led light in ceiling
Hotel flush mount LED linear gypsum ceiling light Profile linear led light in ceiling
Hotel flush mount LED linear gypsum ceiling light Profile linear led light in ceiling
Hotel flush mount LED linear gypsum ceiling light Profile linear led light in ceiling
Hotel flush mount LED linear gypsum ceiling light Profile linear led light in ceiling
Hotel flush mount LED linear gypsum ceiling light Profile linear led light in ceiling

Hotel flush mount LED linear gypsum ceiling light Profile linear led light in ceiling

FOB Reference Price: Get Latest Price
≥2 Pieces
US $19
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Office
Color Temperature(CCT):
3000-6000K
Color Rendering Index(Ra):
83
Product Weight（kg）:
4.5
Type:
Minimalist
Model Number:
ON-7035
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Beam Angle(°):
120
IP Rating:
IP20
Dimension:
0.6m, 1.2m, 1.8m, 2.4m
Product name:
Ceiling recessed led profile light
Length options:
0.6m, 1.2m, 1.8m, 2.4m
Lamp profile size:
W70xH35mm
Ceiling opening size:
LengthxW55xH60mm
Power factor:
>0.95
Mounting:
Ceiling recessed
Control way:
switch on/off, 0-10V dimmable, Dali dimmable
Lumen efficacy:
100lm/w
CCT:
3000K /4000K /6000K
Apply:
Hotel, office, commercial building

Quick Details

Lamp Luminous Efficiency(lm/w):
100
Warranty(Year):
5-Year
Lamp Body Material:
Aluminum housing
Application:
Office
Color Temperature(CCT):
3000-6000K
Color Rendering Index(Ra):
83
Product Weight（kg）:
4.5
Type:
Minimalist
Model Number:
ON-7035
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Beam Angle(°):
120
IP Rating:
IP20
Dimension:
0.6m, 1.2m, 1.8m, 2.4m
Product name:
Ceiling recessed led profile light
Length options:
0.6m, 1.2m, 1.8m, 2.4m
Lamp profile size:
W70xH35mm
Ceiling opening size:
LengthxW55xH60mm
Power factor:
>0.95
Mounting:
Ceiling recessed
Control way:
switch on/off, 0-10V dimmable, Dali dimmable
Lumen efficacy:
100lm/w
CCT:
3000K /4000K /6000K
Apply:
Hotel, office, commercial building
Product Description

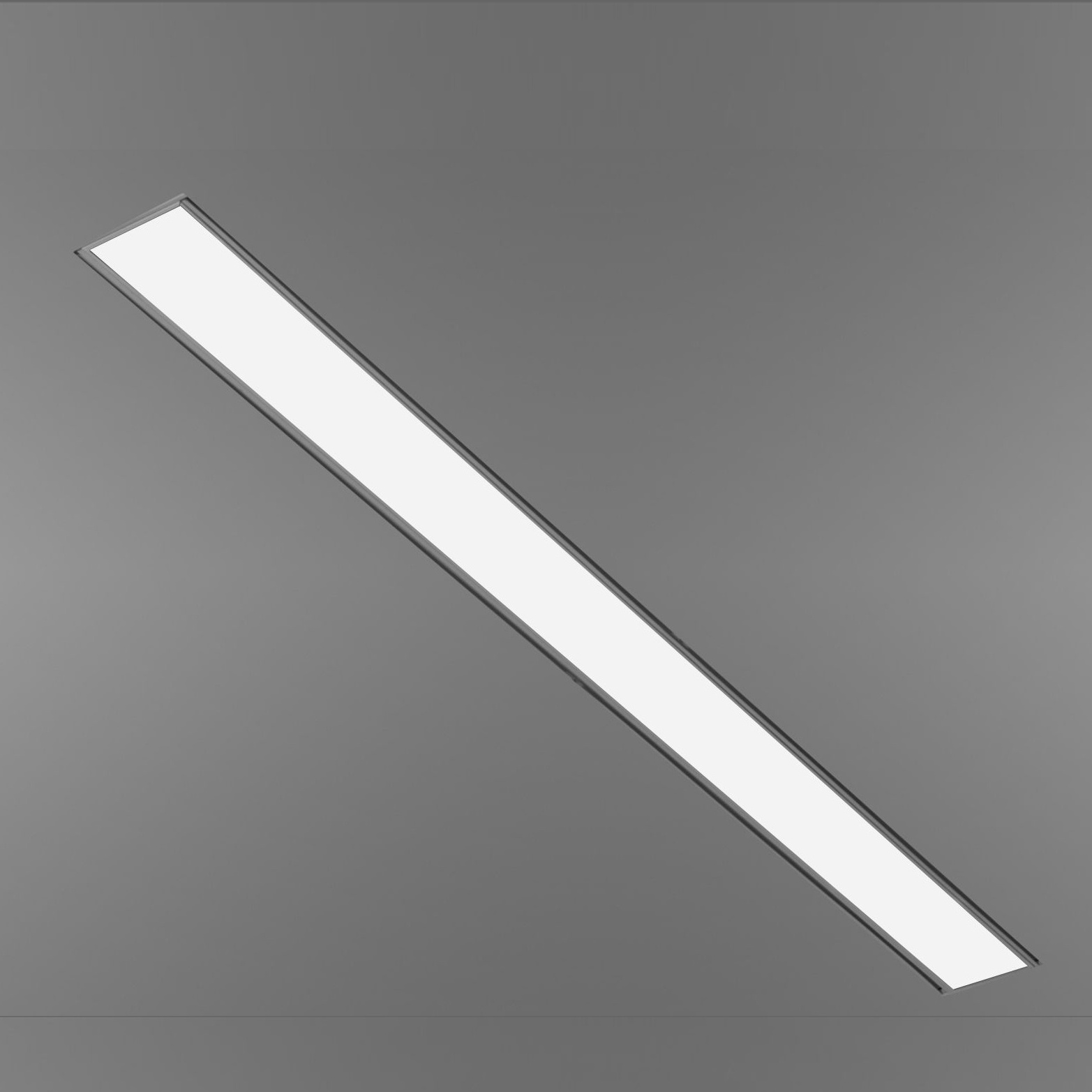

Recessed LED linear light, of profile size W70xH35mm, its lighting width is 55mm.
There are 4 standard lengths to choose, they are 0.6meter, 1.2meter, 1.8meter, 2.4meter.(Equal to 2ft, 4ft, 6ft, 8ft)
And the lamps is connectable(Linkable), it is allowed to connect long straight light such as 3m, 6m, 12m, 20m, 30m, etc.

LED PCB board

Our lamp is using LED PCB board as light source, its heat dissipation is much better. S uperior quality of PC extrusion cover makes sure it is not yellowing after long time use.
PC cover is stuck inside the housing fixture.

Metal Spring mounted buckle

Metal Spring mounted buckle is fixed on the top of aluminum housing, it is much powerful to support the lamp.
For better packing and transport, mounting buckle is not installed on lamp, client need to screw it on spot.
Detailed Images

The lamp profile size is 70mm x 35mm.
Real lighting width is 55mm.
Product Advantage:
Power driver is exterior, fixed on the top of aluminum housing, it is easy to maintain.
Branded power driver is working stably and flicker-free. When taking photos or video in the room, there is no screen flickering on mobile.
Aluminum extrusion profile is 2mm thick.
Product Paramenters
Item Number
Dimension(mm)
Opening size(mm)
Power
Other spec
ON-7035-0.6M
L620*W70*H35
L605*W55*H60
20W
100lm/w,
CRI>83,
PF>0.95,
LED PCB board,
FLICKER-FREE
ON-7035-1.2M
L1215*W70*H35
L1200*W55*H60
40W
ON-7035-1.8M
L1810*W70*H35
L1795*W55*H60
60W
ON-7035-2.4M
L1800xW75xH75
L2390*W55*H60
80W
Installation Instructions
Recessed Installation
Open the spring buckle and insert the lamp into the ceiling opening, mounting completed.
Product Application
Apply to shopping mall, commercial office, school, meeting room, retail store, car display center, bank, hospital, residence, lobby, hotel, garage, warehouse, furniture store, other indoor places, etc.
