Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shouhan tact switch
-
Model Number:
-
tact switch
-
Item name:
-
micro Push Button Switch
-
Current Rating:
-
50mA
-
Voltage Rating:
-
12V DC
-
Operation Temperature:
-
-30℃ ~ +85℃
-
Dielectric strength:
-
250V AC for 1 min
-
Contact Resistance:
-
50mΩ max
-
Insulation Resistance:
-
100mΩ min./100 VDC
-
Usage:
-
Use for smart electronics pcb board
-
Certification:
-
ROHS
Quick Details
-
Protection Level:
-
high level
-
Max. Current:
-
50mA
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shouhan tact switch
-
Model Number:
-
tact switch
-
Item name:
-
micro Push Button Switch
-
Current Rating:
-
50mA
-
Voltage Rating:
-
12V DC
-
Operation Temperature:
-
-30℃ ~ +85℃
-
Dielectric strength:
-
250V AC for 1 min
-
Contact Resistance:
-
50mΩ max
-
Insulation Resistance:
-
100mΩ min./100 VDC
-
Usage:
-
Use for smart electronics pcb board
-
Certification:
-
ROHS

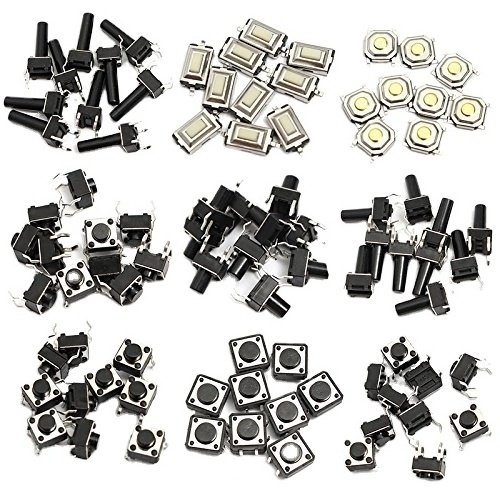

Tact Switch DIP Tactile micro Push Button Switch SMD Micro Switch For Electronic Mobile Devices
|
Product Name |
Tact Switch DIP Tactile micro Push Button Switch SMD Micro Switch For Electronic Mobile Devices |
|
Model |
DIP SMD tact switch |
|
Life |
50,000 cycles |
|
Insulation resistance |
100mΩ |
|
Temperature |
-30℃ to +85℃ |
|
Voltage |
12V DC |
|
Rated current |
0.5A |
