Quick Details
-
Brand Name:
-
poecam
-
Model Number:
-
PL-ES2105DR-H1
-
Place of Origin:
-
Guangdong, China
-
Size:
-
65*54*1.6MM
-
Power:
-
External 5-12V~ 1A
-
Product Name:
-
network Ethernet Switch Module
-
MAC Address Learning:
-
Automatically learning, automatically Update
-
LED Indicators:
-
100Mbps Link/Act
-
Transfer Method:
-
Store-and-Forward
-
Warranty:
-
1 year
-
Device Type:
-
ethernet switch
-
port:
-
2 Rj45 Ports 100Mbps and 8 Pin Header
-
Certification:
-
ce
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.6G
-
Brand Name:
-
poecam
-
Model Number:
-
PL-ES2105DR-H1
-
Place of Origin:
-
Guangdong, China
-
Size:
-
65*54*1.6MM
-
Power:
-
External 5-12V~ 1A
-
Product Name:
-
network Ethernet Switch Module
-
MAC Address Learning:
-
Automatically learning, automatically Update
-
LED Indicators:
-
100Mbps Link/Act
-
Transfer Method:
-
Store-and-Forward
-
Warranty:
-
1 year
-
Device Type:
-
ethernet switch
-
port:
-
2 Rj45 Ports 100Mbps and 8 Pin Header
-
Certification:
-
ce
|

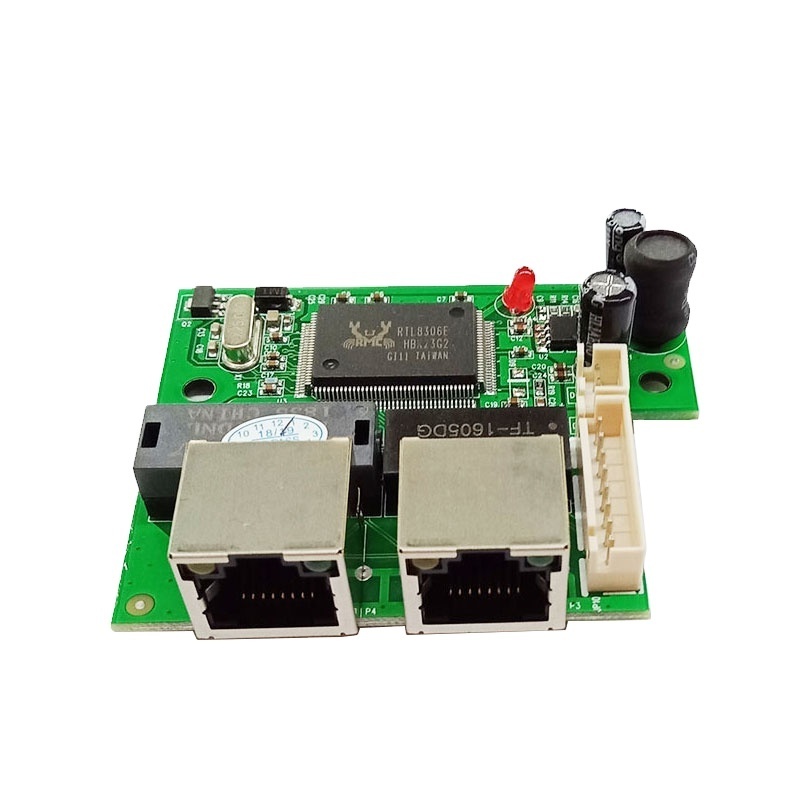

2 port network switch pcb board with pin header 3 Port network Ethernet Switch Module Introduction
Features 1,Complies with IEEE802.3, IEEE802.3u standards 2,210/100Mbps Auto-Negotiation 3,Each ports supporting Auto-MDI/MDIX. 4,Supports storage-forward 5,Supports Full Duplex flow control mode and backpressure for half-duplex mode. 6,Supports MAC address auto-learning and auto-aging. 7,Each port provides independent bandwidth providing true non-blocking transmission 8,LED indicators for monitoring power, link, activity. 9,Small size to reduce network cabling costs
Application Exquisite form factor is widely used home,hotel,commercial and other multimedia cabling box, and the network data Transmission, cabling distance extend and other.
Specification
|
