Quick Details
-
Brand Name:
-
LIQUI-VIEW Base
-
Model Number:
-
LVB-10-P
-
Measurement principle:
-
Karman vortex
-
Output:
-
Pulse
-
Medium:
-
Water and water like liquids
-
Accuracy at >=50%FS:
-
<2%RD
-
Accuracy at <50%FS:
-
<1%FS
-
Operating temperature:
-
<+125°C
-
Ambient temperature:
-
-15 .. +85°C
-
Flow range:
-
2.0 .. 40 l/min
-
Wetted parts:
-
EPDM, PA6T/6l, ETFE
Quick Details
-
Type:
-
Vortex Flow Meter
-
Warranty:
-
1 year
-
Place of Origin:
-
Netherlands
-
Brand Name:
-
LIQUI-VIEW Base
-
Model Number:
-
LVB-10-P
-
Measurement principle:
-
Karman vortex
-
Output:
-
Pulse
-
Medium:
-
Water and water like liquids
-
Accuracy at >=50%FS:
-
<2%RD
-
Accuracy at <50%FS:
-
<1%FS
-
Operating temperature:
-
<+125°C
-
Ambient temperature:
-
-15 .. +85°C
-
Flow range:
-
2.0 .. 40 l/min
-
Wetted parts:
-
EPDM, PA6T/6l, ETFE

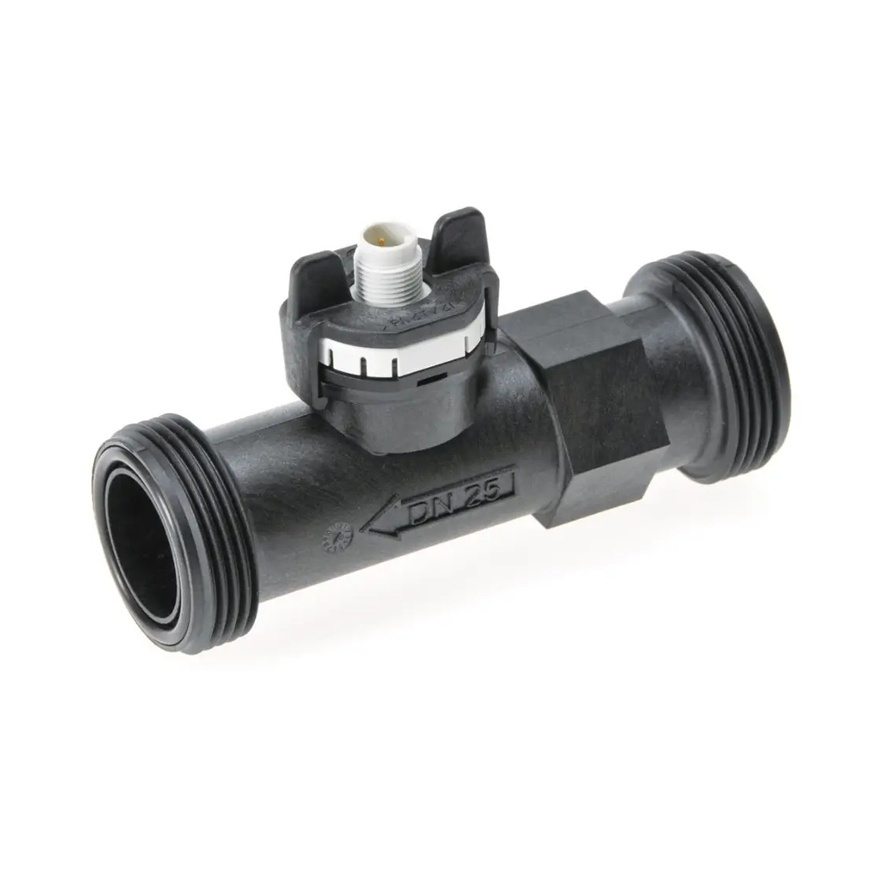

The LIQUI-VIEW Base series operate on the Karman vortex principle and are made for operation on liquids. A great advantage of these vortex flow meters is the absence of moving parts which makes these instruments impervious to deposits of hard water and maintenance free.
Features of Vortex Liquid Flow Meter
- Makes liquid flows visible by pulse output
- No moving parts makes it:
- Impervious to deposits
- Maintenance free
- Low pressure drop
- Mounting in any position
- Wide flow ranges
- Fast response
- Suitable for dirty water (circulating, well or waste water)
- Sustainable product design
- Low power consumption
- Lightweight and compact
Applications
The fields of application for this vortex liquid flow meter are diverse:
- Cooling water monitor
- Deionized water (RO/DI skids)
- Ultra pure water distribution (medicare, biotech, semiconductor, pharmaceutical)
- Drinking water
Pressure Drop
The pressure drop (mbar) calculation formula is (240*Q2)/100 werein Q refers to the flow rate in the unit 'l/min'.
Customer benefits
- High quality products
- Clear competitive pricing
- Fast delivery
- 24 / 7 open for business
- Highly efficient purchase channel including order tracking
- Easy product selection and ordering
- After Sales Service
- Repair Service & Replacements
- Calibration Service
- Field & Maintenance Service
- Modernisation Service
- Remote Support Service
Head office
Production process
Our warehouse
Our team
Orders are shipped from Monday through Friday. Weekend delivery is not available. Products will be sold from stock, unless otherwise stated in the purchasing process. You will be notified when an item is not in stock which will introduce a delay in the delivery time. We do not partially ship orders so when one required item is in stock but another is on a non stock lead time then you should split the order. Once your product(s) has shipped, you will receive a shipment notification via email from our shipper United Parcel Services (UPS). In this email, you will find the tracking number of the shipment.
Delivery Details : ships in 1 - 2 days Shipping Weight : 0.057kg
Calibration certificate
The Bronkhorst Calibration Centre is accredited by the Dutch Accreditation Council (RvA) under registration number K 127. Herewith is certified that our laboratory’s Quality Assurance system, calibration methods and technical competences have been inspected and audited and meet all necessary requirements.
Quality Management System certificate
Bureau Veritas Certification declares that the Quality Management System of Bronkhorst High-Tech B.V. organisation has been audited and found to be in accordance with the requirements of the managment system standards.
Q: What happens during measurement with a vortex meter when the tube vibrates?
A: In general, vortex meters are sensitive to vibrations and impact shocks. Therefore vibrations and impact shocks should be prevented in the neighbourhood of the meter.
Q: Which liquids can be measured with LIQUI-VIEW Base?
A: Water and all water like liquids which are not flammable, corrosive or toxic. With the following definitions we are able to correct the influence of media with higher viscosity than water (= media viscosit y > 1.8 cST) in order to reach a measuring accuracy of 3% fs in the range of 1.8 – 4 cST and of 4% in the range of 4 – 14 cSt (υ= viscosity in cSt).
