Quick Details
-
Color:
-
full color
-
Panel Size:
-
500*500mm, 500*500mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P3.91 indoor
-
use:
-
stage background, events
-
Specification:
-
LED SCREEN
-
Brightness:
-
900cd/m2, 900cd/m2, >900
-
pixel density:
-
65536dots/m2, 65536dots/m2
-
Color Depth:
-
1R1G1B, 1R1G1B
-
Lifespan (hours):
-
>100000hrs, >100000hrs
-
IP Rating:
-
IP30, IP30
-
HS Code:
-
8531200000
-
Resolution:
-
128*128pixel
-
View Angle（H/V）:
-
H140 V140, H140 V140
-
LED lamp:
-
SMD2121
-
IC:
-
SM/JXI/MBI/CHIPONE
-
Module Pixel:
-
64x64
-
Module accessories:
-
Magnet,cabinet screw,etc
-
Control Card:
-
HD,TF,Onbon BX,Listen,etc
-
Working Voltage:
-
5V
-
Warranty:
-
1 Year
-
Certificate:
-
CE RoHS ISO Certifications
-
Screen Dimension:
-
250*250mm
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
XINTAI
-
Color:
-
full color
-
Panel Size:
-
500*500mm, 500*500mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P3.91 indoor
-
use:
-
stage background, events
-
Specification:
-
LED SCREEN
-
Brightness:
-
900cd/m2, 900cd/m2, >900
-
pixel density:
-
65536dots/m2, 65536dots/m2
-
Color Depth:
-
1R1G1B, 1R1G1B
-
Lifespan (hours):
-
>100000hrs, >100000hrs
-
IP Rating:
-
IP30, IP30
-
HS Code:
-
8531200000
-
Resolution:
-
128*128pixel
-
View Angle（H/V）:
-
H140 V140, H140 V140
-
LED lamp:
-
SMD2121
-
IC:
-
SM/JXI/MBI/CHIPONE
-
Module Pixel:
-
64x64
-
Module accessories:
-
Magnet,cabinet screw,etc
-
Control Card:
-
HD,TF,Onbon BX,Listen,etc
-
Working Voltage:
-
5V
-
Warranty:
-
1 Year
-
Certificate:
-
CE RoHS ISO Certifications
-
Screen Dimension:
-
250*250mm
| LED Module Type | PH3.91-16S Intdoor |
| Module pixel pitch | 3.91mm |
| Module resolution | 64*64 |
| Module size | 250*250mm |
| Pixel density | 65410dots/m2 |
| LED lamp | SMD2121 |
| Brightness | 900-1200cd/m2 |
| Drive mode | 1/16scan constant current |
| Average consumption | 350W/m2 |
| Max consumption | 450W/m2 |

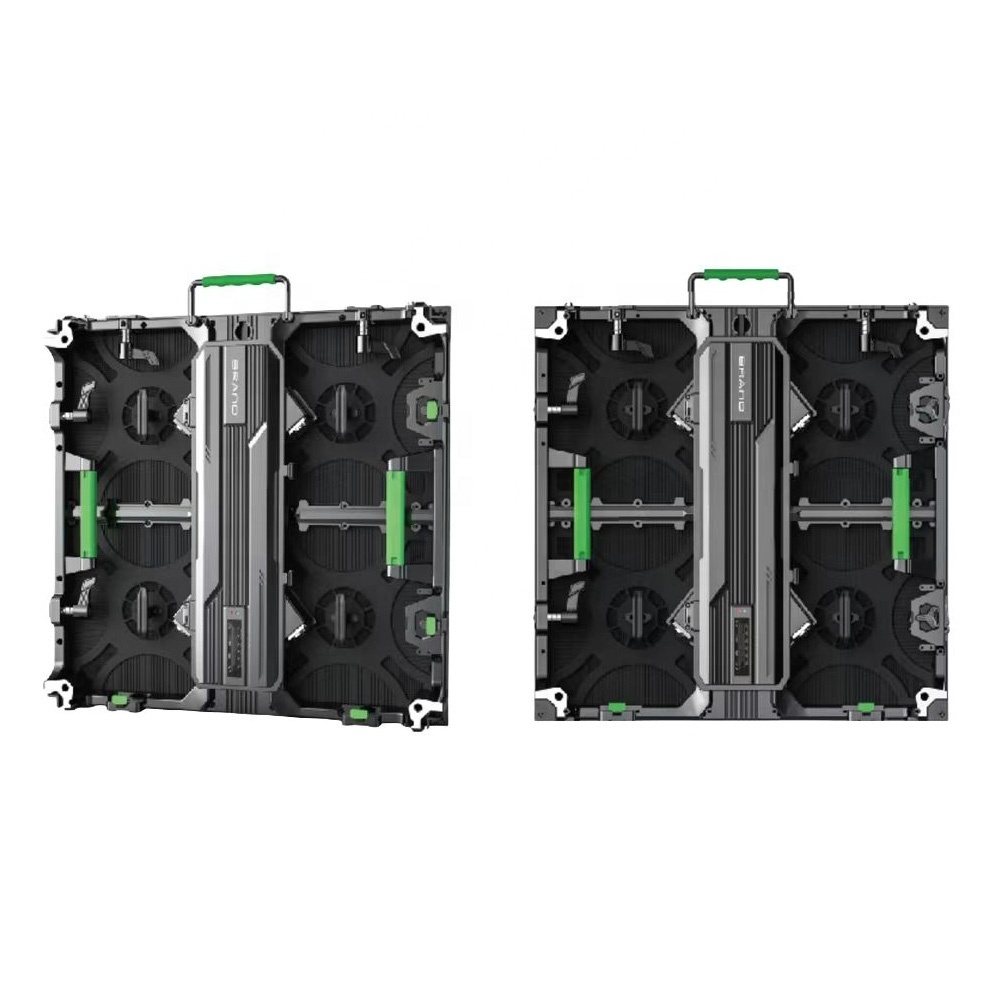

| Standard cabinet size | 500x1000mm/500x500mm |
All Module Products will be checked more than 3 times in Production
Different module Carton have different Size and Quantity ,before you Place Order ,please ask Us
Different Way to Assemble Module use Different Module Accessories
For example,if you use Aluminum Frame, Module Magnet is should be with Module ;(Chinese Assemble way)
If you use Cabinet , Cabinet screw should be with module,and Outdoor module should have waterproof rubber .
1,Why Choose US?
More than 8 Years experience on Producing LED module
We focus on Quality and Service,and keep your price competitive in your local markets.
2,How to Check quality?
Our products all use good quality led materials,like PCB,plastics,led lamps,ICs,etc.
a,You or your friend can come to our factory before production or after production;
b,Before you place order ,in production and after production,we will take some pictures on related products.We promise everything is same as we discussed on products.
3,How do you improve quality
Find problems and solve problems.
As a professional manufacturer in LED field,we pay close attention to material quality in different times ,and send information back to supplier.
And every customer can give us feedback on any products,then we can check .
3,How could I know to control LED display?
Fristly ,if we sell screen for you,control system was be set up in sdvance by us;or if you buy different spare parts (like module,control card,power supply ) from us,we also can set up control system in advance ,and we can recommend right control card for you .
Second,we can help you set up led screen by teamviewer or send RCG file to you if you can't finish set up by yourself in your there
4,If any products have problems,how to do?
Firstly,we hope you can perfect products when goods arrive your hands;
Second,All orders will give some free spare parts ,like led lamps or ICs ,you can do some simple reparing works.If you purchase LED screen,please don't forget to buy samll quantity module for spare.
5,Every Customer should know:
LED module may have some color difference ,if you order one type product two more times.
If you have any other problems,please feel free to contact US
