Quick Details
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ANDEA DOORS
-
Model Number:
-
OT-SL
-
Product name:
-
hallway doors
-
Function:
-
hermetic
-
Door usual size:
-
1280X2150,1480X2150,1680X2150
-
Door usual color:
-
white , light blue , oodlike, light green
-
Certificate:
-
CE , ROHS
-
Open Style:
-
Sliding
-
Position:
-
Interior
-
Type:
-
Special Doors
-
Special Door Type:
-
Gas Tight Doors
Quick Details
-
Door Material:
-
HPL/HPDL
-
Feature:
-
Thermal Insulation
-
Main Material:
-
Steel
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ANDEA DOORS
-
Model Number:
-
OT-SL
-
Product name:
-
hallway doors
-
Function:
-
hermetic
-
Door usual size:
-
1280X2150,1480X2150,1680X2150
-
Door usual color:
-
white , light blue , oodlike, light green
-
Certificate:
-
CE , ROHS
-
Open Style:
-
Sliding
-
Position:
-
Interior
-
Type:
-
Special Doors
-
Special Door Type:
-
Gas Tight Doors
|
– WELCOME TO ANDEA CUSTOM DOOR – Hello, we are door and door opener factory in Guangdong, China. Our products include hospital operation room door, clean room door, x-ray proof door/window, steel fire proof door, fire proof roller shutter door/window, automatic/manual roller shutter door (aluminum/steel/pvc), sectional garage door (steel/aluminum+glass), and entrance guard systems (opener, motor, etc). Welcome to contact us if any need. |

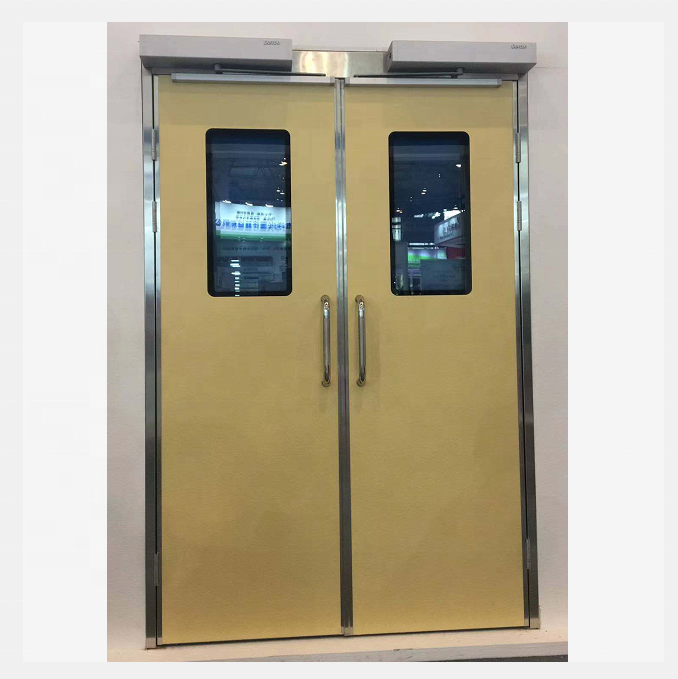

ANDEA hermetic door/airtight door is used for hospital operating theatre, patient room, clean room, Lab, food factory, pharmaceutical factory, and other places need dust proof/gas proof/water proof, etc.
Main Function: a irtight/water proof/a ntibiosis /fire rated
It is equipped with rubber seal. Special purpose seal stripe are used to seal around t he door to make sure that the door will joint tightly with the wall frame for air tightness when closed.
It can joint the wall frame when close down and ensuring the air tightness of door. At both sides and the center joint, there are the sealing strips installed, which conforms to the sanitary requirement for use in hospital, research institute, recording studio or any other places need for dust proof , gas proof, water proof, etc .
Flush design makes the door easy cleaning and better on antibiosis.
Door Material:
1, Door Surface:
a, Color coated cold roll steel with decorated 304# stainless steel panel. With 1.0mm thickness stainless steel framed. Color: usually blue, white, white gray, beige, light green, etc.
b, Stainless steel - SUS304. Color: original stainless steel color
c, HPL board. Color: blue, pink, green, white, wood-like, black, etc.
d, Aluminum panel. Color: original, white, blue, green, etc.
2, Door panel Infilling:
a, steel structure + MDF/plywood board A dvantage: s trong
b, high density PU board Advantage: light and insulation
c, 120mins fire rated cotton/fire rated perlite board Advantage: fire rated
d, paper honeycomb/aluminum honeycomb Advantage: light & strong
3, Handle & hinge: stainless steel/aluminum
4, View window glass: thickness= tempered glass/60mins fire rated glass/lead glass. Thickness = 5mm to 26mm
5, Driven system: automatic sliding/swing door opening system. W ith brushless motor, feet/hand sensor switch, microcomputer control system, etc. All W i th CE C ertificate
6, Door airtight seal material: silicone rubber
7, Door frame/wall frame material: 1.2mm stainless steel (for heavy & light door) ; 1.2mm color painted steel (for heavy & light door) ; 1.0mm aluminum (for light door only)
Opening Method: sliding or swing, electronic or manually. Our door opener systems have passed 1.5million times lasting test with brushless motor and high qualitymicrocomputer control system.
Hospital door specifications
|
Door s kin m aterial |
C olor painted steel, stainless steel (SUS), aluminum, PVC, fireproof board, etc . |
|
|
Door frame material |
S tainless steel, aluminum |
|
|
K nock blade material |
S tainless steel |
|
|
Seal material |
Silica gel , r ubber |
|
|
Door lock & door hinge material |
S tainless steel |
|
|
Door skin color |
O riginal SUS color, o riginal aluminum color, light blue, white, grey, beige, etc. |
|
|
Door size |
swing door |
S ingle door width: 700mm - 1000mm M other & son door width: 1200mm - 1400mm D ouble door width: 1400mm - 1800mm Door h eight: 1900mm - 3000mm |
|
sliding door |
S ingle door width: 1000mm - 2200mm D ouble door width: 1500mm - 3000mm Door height: 1900mm - 3100mm |
|
|
A utomatic door system |
O pening door by hand sensor switch , feet sensor switch or press switch |
|
|
Door advantage |
Airtight , easy clean and antibiosis |
|
∗ Please kindly note that this product is customized, and the price is only for your reference. If need exact price, please contact us before starting order. After confirming the size and your requirements, we will offer the exact quotation.
