Quick Details
-
Brand Name:
-
JXPC
-
Name:
-
Air Solenoid Valve
-
Medium:
-
Air, Water, Oil
-
Material of Oil Seal:
-
NBR
-
Type:
-
Normal Colse, Water Pressure Reducing Valves
-
CV Value:
-
0.23
-
Standard or Nonstandard:
-
Standard
-
Working Pressure:
-
0.05-0.7MPa
-
Protect Class:
-
IP 65
-
Insulation:
-
F Class
-
Shortest Excitation Time:
-
0.05 Second
Quick Details
-
Port Size:
-
1/8", 1/4", 3/8", 1/2", 3/4", 1"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2V025-08
-
Brand Name:
-
JXPC
-
Name:
-
Air Solenoid Valve
-
Medium:
-
Air, Water, Oil
-
Material of Oil Seal:
-
NBR
-
Type:
-
Normal Colse, Water Pressure Reducing Valves
-
CV Value:
-
0.23
-
Standard or Nonstandard:
-
Standard
-
Working Pressure:
-
0.05-0.7MPa
-
Protect Class:
-
IP 65
-
Insulation:
-
F Class
-
Shortest Excitation Time:
-
0.05 Second

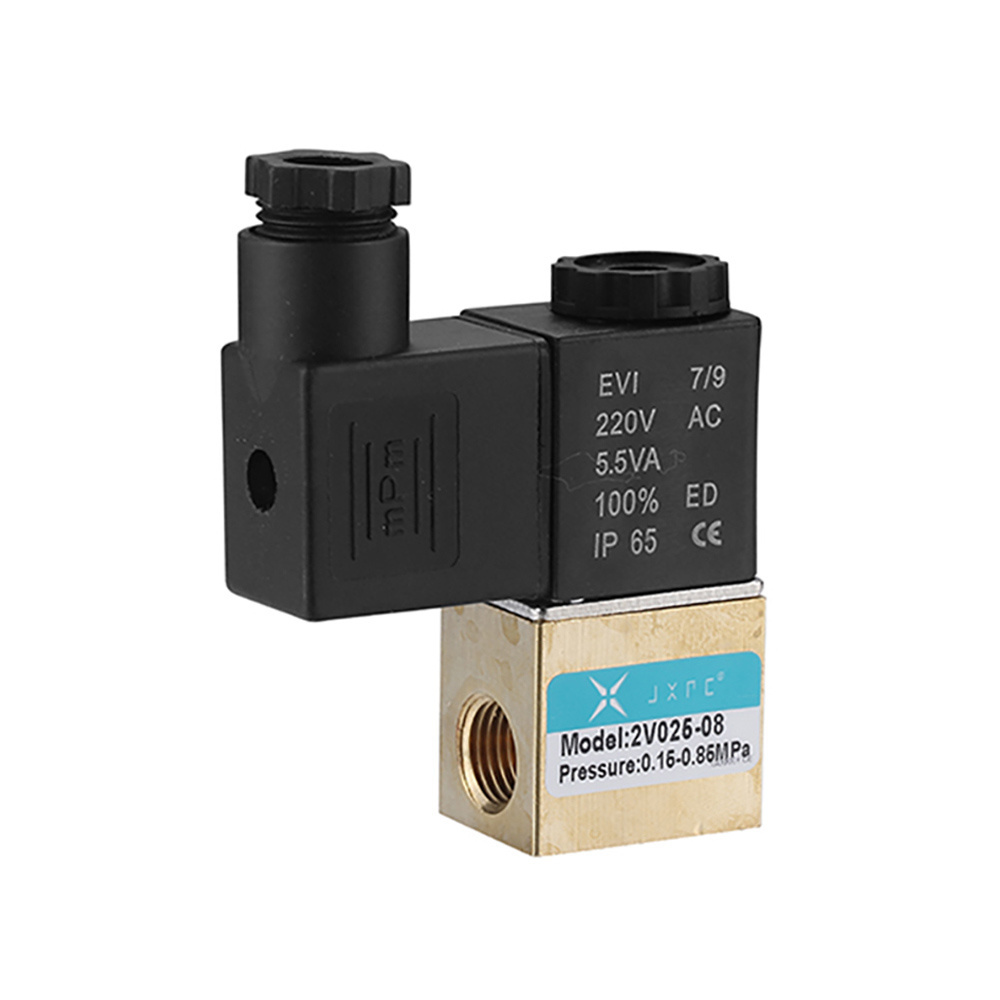

Product Description
*
2V Series Two-Position Two-Way Solenoid Valve, M4*0.7, 3/8", 1/8", 3/4", 1/4", 1/2", 1" Port Size
* High Quality Normally Closed electric solenoid valve for Air, Water, Oil, Gas
* Working temperature range: -10~80°C
* It's applicable in many fields: Irrigation controls (garden, farm, etc.), liquid controls (pipeline, artificial river etc. and
air controls (lab, factory, etc.)
* We have solenoids available in AC/DC and various size NPT threads as well.
* High Quality Normally Closed electric solenoid valve for Air, Water, Oil, Gas
* Working temperature range: -10~80°C
* It's applicable in many fields: Irrigation controls (garden, farm, etc.), liquid controls (pipeline, artificial river etc. and
air controls (lab, factory, etc.)
* We have solenoids available in AC/DC and various size NPT threads as well.
|
2V Series Two-position Two-way Solenoid Valve
|
|
|
|
|
|
|
|
|||||||
|
Model
|
2V010-M4
|
2V025-06
|
2V025-08
|
2V130-10
|
2V130-15
|
2V250-20
|
2V250-25
|
|||||||
|
Working Medium
|
Air, Water, Oil
|
|
|
|
|
|
|
|||||||
|
Motion Pattern
|
Direct Drive Type
|
|
|
Guide Type
|
|
|
|
|||||||
|
Type
|
Normal Close Type
|
|
|
|
|
|
|
|||||||
|
Aperture of Flow Rate(mm)
|
1
|
2.5
|
|
13
|
|
25
|
|
|||||||
|
CV Value
|
0.1
|
0.23
|
|
6.2
|
|
23
|
|
|||||||
|
Port Size
|
M4×0.7
|
G1/8”
|
G1/4”
|
G3/8”
|
G1/2”
|
G3/4”
|
G1”
|
|||||||
|
Operation Fluid Viscosity
|
20 CST(Below)
|
|
|
|
|
|
|
|||||||
|
MPa / Working Pressure
|
Air, Water, Oil, 0.05~0.07MPa
|
|
|
|
|
|
|
|||||||
|
MPa / Max Pressure Resistance
|
1.2
|
1.6
|
|
1
|
|
|
|
|||||||
|
Operating Temperature Range
|
-10~+80°C
|
|
|
|
|
|
|
|||||||
|
Voltage Range
|
±10%
|
|
|
|
|
|
|
|||||||
|
Protect Class
|
IP65
|
|
|
|
|
|
|
|||||||
|
Power Consumption
|
AC:4.5VA DC:3W
|
|
|
|
|
|
|
|||||||
|
Insulation
|
F class
|
|
|
|
|
|
|
|||||||
|
Material of Body
|
Aluminum or Brass(Nickel coated)
|
|
|
Brass
|
|
|
|
|||||||
|
Material of Oil Seal
|
NBR or VITON
|
|
|
|
|
|
|
|||||||
|
Shortest Excitation Time
|
0.05 Second
|
|
|
|
|
|
|
|||||||
