- Product Details
- {{item.text}}

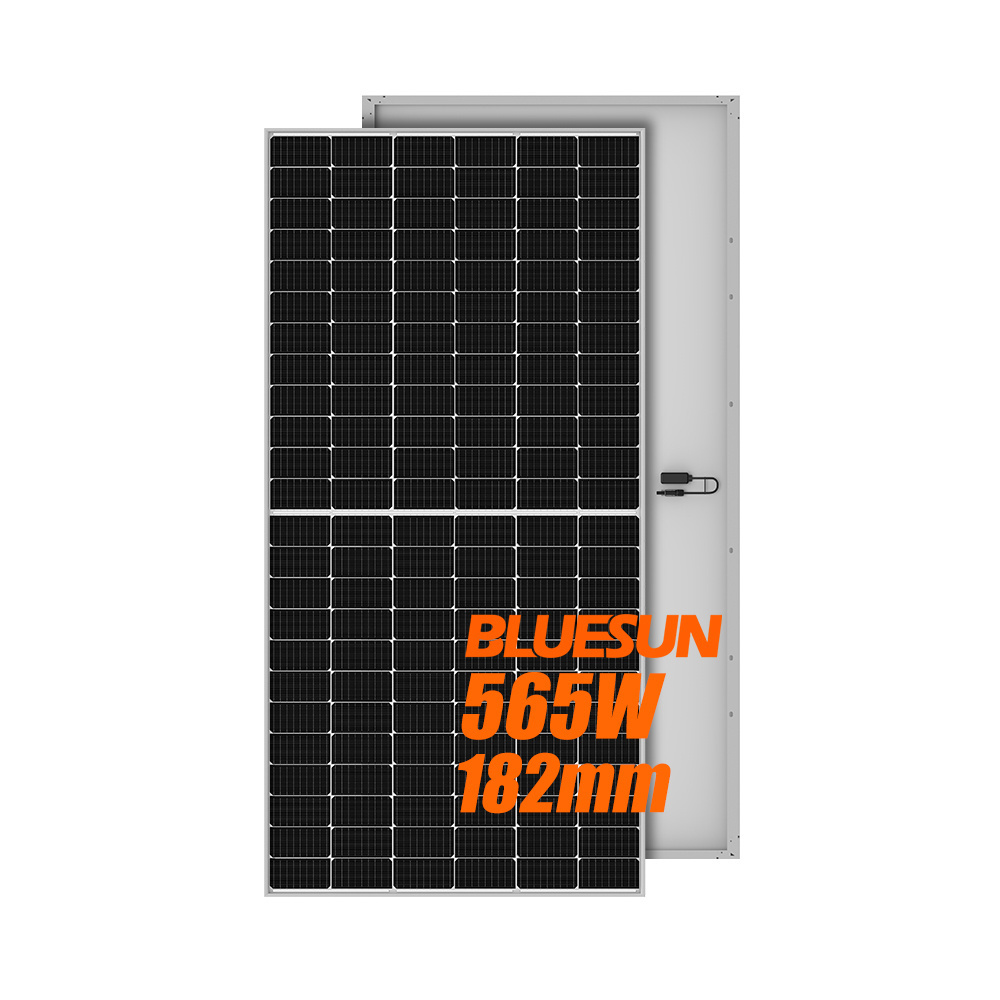

Quick Details
-
Warranty:
-
25 years warranty
-
Brand Name:
-
Bluesun Solar
-
Model Number:
-
BSM565M10-72HPH
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35mm
-
Cell Type:
-
Monocrystalline
-
Cell Dimensions:
-
182*91mm
-
Cell Arrangement:
-
144 (6*24)
-
Weight:
-
28.6kg
-
Cable Length:
-
2278*1134*35mm
-
Frame:
-
Portrait 300mm/Landscape 1200mm/Customized
-
Cable Cross Section Size:
-
TUV: 4mm (0.006inches )/UL: 12AWG
-
Front Glass:
-
3.2mm (0.13inches) AR Coating Tempered Glass
-
Static Loading:
-
Snow Loading: 5400Pa/ Wind Loading: 2400Pa
-
Certificate:
-
IEC 61215 / IEC 61730 / TUV
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, TOPCON, Mono
-
Panel Efficiency:
-
21.87%
-
Warranty:
-
25 years warranty
-
Brand Name:
-
Bluesun Solar
-
Model Number:
-
BSM565M10-72HPH
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35mm
-
Cell Type:
-
Monocrystalline
-
Cell Dimensions:
-
182*91mm
-
Cell Arrangement:
-
144 (6*24)
-
Weight:
-
28.6kg
-
Cable Length:
-
2278*1134*35mm
-
Frame:
-
Portrait 300mm/Landscape 1200mm/Customized
-
Cable Cross Section Size:
-
TUV: 4mm (0.006inches )/UL: 12AWG
-
Front Glass:
-
3.2mm (0.13inches) AR Coating Tempered Glass
-
Static Loading:
-
Snow Loading: 5400Pa/ Wind Loading: 2400Pa
-
Certificate:
-
IEC 61215 / IEC 61730 / TUV
Product Description
|
SPECIFICATIONS
|
|
|
|
|
|
|
|||||
|
Module Type
|
BSM545M10-72HPH
|
BSM550M10-72HPH
|
BSM555M10-72HPH
|
BSM560M10-72HPH
|
BSM565M10-72HPH
|
BSM450M10-54HNH
|
|||||
|
|
STC
|
STC
|
STC
|
STC
|
STC
|
STC
|
|||||
|
Maximum Power (Pmax/W)
|
545
|
550
|
555
|
560
|
565
|
450
|
|||||
|
Operating Voltage(Vmp/V)
|
42.06
|
42.16
|
42.24
|
42.33
|
42.42
|
32.63
|
|||||
|
Operating Current(Imp/A)
|
12.96
|
13.05
|
13.14
|
13.23
|
13.32
|
13.82
|
|||||
|
Open-Circuit Voltage(Voc/V)
|
49.7
|
49.8
|
49.9
|
50
|
50.1
|
39.24
|
|||||
|
Short-Circuit Current(Isc/A)
|
13.84
|
13.94
|
14.04
|
14.14
|
14.24
|
14.56
|
|||||
|
Module Efficiency（%）
|
21.1
|
21.3
|
21.49
|
21.68
|
21.87
|
23.04
|
|||||
|
STC: Irradiance 1000W/m2, Cell Temperature 25°C Air Mass AM1.5
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
||||||
Certificates
Production Process
Packing&Delivery
Packing Configuration : 31pcs/carton, 620pcs/40hq
Our Company
Global Exhibitions
INTERSOLAR EUROPE
INTERSOLAR MEXICO
The Future Energy Show Philippines
RE+
Solar Solutions Kortrijk
Canton Fair
Bluesun Projects
Configuration：425W Solar Panel EU Stock
Installation site：Croatia
Installation time：March 2023
Installation time：March 2023
Configuration：440W Black Frame Shingled Solar Panel
Installation site：Sweden Gothenburg
Installation time：September 2023
Configuration：Energy Storage with 700W Double Glass Shingled Solar Panel
Installation site：U.K.
Installation time：July 2023
Payment
|
Payment Term
|
T/T
|
EXW
|
30%T/Tin advance, paid the balancebefore shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
30%T/Tin advance, paid the balanceagainst copy of B/L
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
|
L/C amount above 50,000usd, we can accept L/Cat sight
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
|
West Union
|
|
|
||
|
Delivery Time
|
7~ 10 days after receiving payment for one container
|
|
|
||
