R599 series rocker switch offer a high switching current in a compact design.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RS606EF-201N012CRB
-
Max. Current:
-
20A
-
Mechanical Life:
-
100000
-
Products name:
-
Electric Rocker Switch
-
Rating:
-
16A 250VAC 20A 125VAC
-
Insulation Resistance:
-
100MΩ 500V DC/1 minutue
-
Pins:
-
4PIN
-
Lamp color:
-
Black White
-
Fuction:
-
Heating Furnace Switch
-
Operating Temperature:
-
25 ~+85
-
Electrical Life:
-
10000cycles
-
Certification:
-
yes
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beisuos
-
Model Number:
-
RS606EF-201N012CRB
-
Max. Current:
-
20A
-
Mechanical Life:
-
100000
-
Products name:
-
Electric Rocker Switch
-
Rating:
-
16A 250VAC 20A 125VAC
-
Insulation Resistance:
-
100MΩ 500V DC/1 minutue
-
Pins:
-
4PIN
-
Lamp color:
-
Black White
-
Fuction:
-
Heating Furnace Switch
-
Operating Temperature:
-
25 ~+85
-
Electrical Life:
-
10000cycles
-
Certification:
-
yes
Our Advantages
Advantage
1 . Have Certificates；
2 . More than to 10 years'manufacture；
3 . 90 % of our products are exported to Europe , North and South America；
4 . Factory Size : 5 , 000 square meters ；
5 . Strong technological capacity , complete production testing equipment.
2 . More than to 10 years'manufacture；
3 . 90 % of our products are exported to Europe , North and South America；
4 . Factory Size : 5 , 000 square meters ；
5 . Strong technological capacity , complete production testing equipment.
Products Description
|
Product Name
|
Light country 250V 20A 25A ON OFF 4PIN KCD4 DPST welding machine rocker switch with light
|
|
Rating
|
20A /25A 250VAC &20A/25A 125VAC
|
|
Funtion
|
ON-OFF DPST WITH LIGHT ROCKER SWITCH
|
|
Material
|
Nylon 66
|
|
Contact Configuration
|
DPST
|
|
Housing Color
|
Standard Black
|
|
Button Color
|
Transparent Red/Green/Yellow/Blue
|
|
Lamp Volt
|
12V/24V/110V/220V
|
|
OEM or ODM
|
Available
|
Products Show

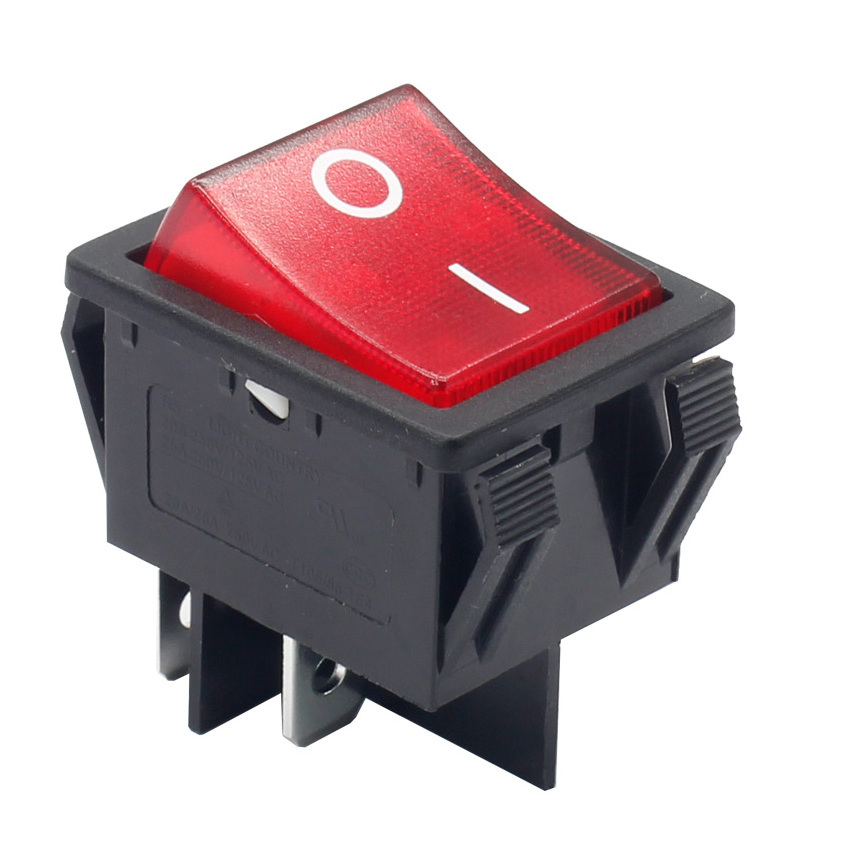

R599 SERIES ROCKER SWITCHES
R599 SERIES ROCKER SWITCHES
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Related Products
Application
SWITCH
We are the manufacture of the electric switches, the switches are divided into two groups, one is control the circuit, another one
is protect the circuit, and it is maily used in the industry and daily life equipment.The main funtion are ON-OFF/ ON-OFF-ON/ON-ON
and so on. The color of the light is optional , with light or not also is avaliable. You can tell us the size of holels, then we
wil laccording to your informaton to give you the best suggestion.
is protect the circuit, and it is maily used in the industry and daily life equipment.The main funtion are ON-OFF/ ON-OFF-ON/ON-ON
and so on. The color of the light is optional , with light or not also is avaliable. You can tell us the size of holels, then we
wil laccording to your informaton to give you the best suggestion.
SOCKET
We are the manafacture of the industry socket AC Power Socket, DC Socket used in car and household equipment(Jack Plug).You can
tell us your general iinquirements, and if you have the picture or drawing, pls show me, we will give you the best suggestion,
best service and best offer.
tell us your general iinquirements, and if you have the picture or drawing, pls show me, we will give you the best suggestion,
best service and best offer.
Circuit Breaker
We are the manufaturer for all kinds of circuit breakers ..It will protect your devices when overload is more than the rate .You
just send me your general informaiton .We will give you the best adivce .
just send me your general informaiton .We will give you the best adivce .
