Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
HengBiao
-
Model Number:
-
KCB
-
Place of Origin:
-
Hebei, China
-
Cable Length:
-
Depending on the type
-
Outlet Size:
-
25-200mm
-
Power:
-
1.5-400kW
-
Usage:
-
Oil Transfer
-
Type:
-
External Gear Pump
-
Material:
-
Cast Iron/Stainless Steel
-
Flow:
-
1.1-900 m3/h
-
Sealing:
-
Packing Gland/Mechanical Seal
-
Max Temperature:
-
300
-
Delivery:
-
3-5days
-
Certification:
-
ISO9001
Quick Details
-
Application:
-
Biofuel Industry, District Energy, Industrial Utilities, Irrigation and Agriculture
-
Pressure:
-
High Pressure
-
Voltage:
-
220V/380V/415v/460v
-
Warranty:
-
1 years
-
Brand Name:
-
HengBiao
-
Model Number:
-
KCB
-
Place of Origin:
-
Hebei, China
-
Cable Length:
-
Depending on the type
-
Outlet Size:
-
25-200mm
-
Power:
-
1.5-400kW
-
Usage:
-
Oil Transfer
-
Type:
-
External Gear Pump
-
Material:
-
Cast Iron/Stainless Steel
-
Flow:
-
1.1-900 m3/h
-
Sealing:
-
Packing Gland/Mechanical Seal
-
Max Temperature:
-
300
-
Delivery:
-
3-5days
-
Certification:
-
ISO9001
Product Description

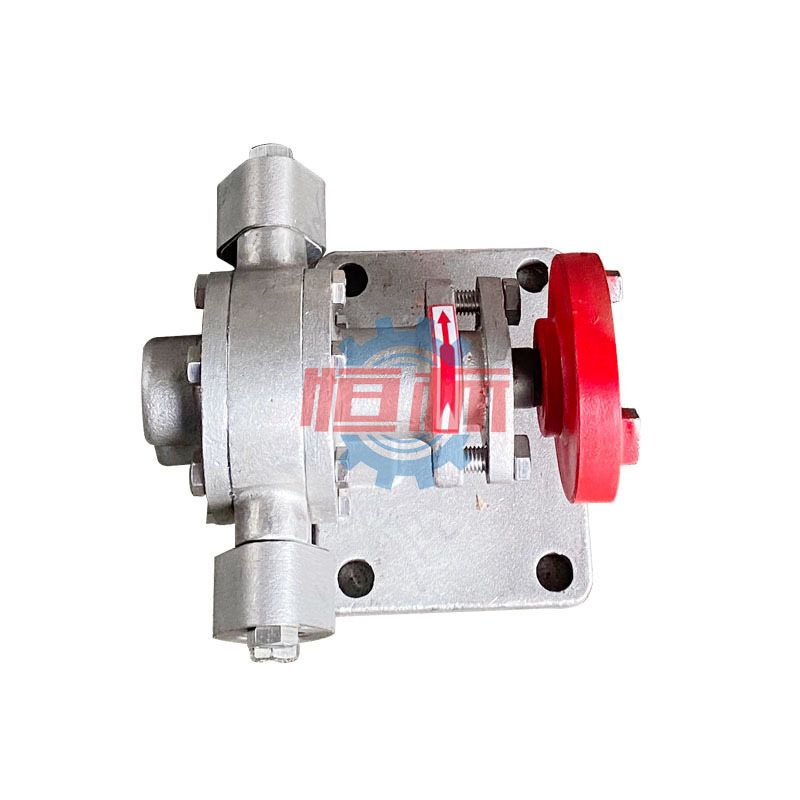

KCB series gear pump
is mainly composed of gears, axles, pump body, pump cover,safety valve, and axle-end etc. seal.Gear after heat treatment with high hardness and strength, and shaft installed in the replaceable shaft sleeve.In all parts of the lubrication pump are pump work automatically to achieve using the output media.
KCB gear oil pump is suitable for conveying various lubricity of liquid, the temperature is not higher than 86 ℃, if you need high temperature 300 ℃, can be associated with this unit with high temperature resistant material, viscosity of 5 to 1500 cst.
Application scope
It can give performance as transfer pump or booster pump in oil delivery system. It can be also applied as fuel pump for delivery system,pressurization and injection in fuel supply system and in all industry fields as lubricating pump.
It can give performance as transfer pump or booster pump in oil delivery system. It can be also applied as fuel pump for delivery system,pressurization and injection in fuel supply system and in all industry fields as lubricating pump.
Details Images
1.Structure Features
KCB series gear pumps are mainly composed of pump body, safety valve, gear and axle-end seals etc.
Note: It is also designed with safety valve for protection against overload. The full return flow pressure of the safety valve is 1.5 times higher than the rated exhaust pressure of the pump.
2.Material Classification
a. Cast Iron: It applies to delivering lubricating-oil liquid without solid particales in general industry and working conduction.
b. Stainless Steel: It applies to delivering corrosive liquid without solid particales in general industry and working conduction.It also can applies to delivering standard liquid with health requirement in food conduction.
c. Explosion-proof Material: It applies to delivering inflammable and explosive liquid without solid particales in general industry and working conduction.
KCB series gear pumps are mainly composed of pump body, safety valve, gear and axle-end seals etc.
Note: It is also designed with safety valve for protection against overload. The full return flow pressure of the safety valve is 1.5 times higher than the rated exhaust pressure of the pump.
2.Material Classification
a. Cast Iron: It applies to delivering lubricating-oil liquid without solid particales in general industry and working conduction.
b. Stainless Steel: It applies to delivering corrosive liquid without solid particales in general industry and working conduction.It also can applies to delivering standard liquid with health requirement in food conduction.
c. Explosion-proof Material: It applies to delivering inflammable and explosive liquid without solid particales in general industry and working conduction.
Product Paramenters
|
Model
|
Capacity Q
|
|
Speed
|
Exhaust pressure P
|
Motor
|
|
|
|
M³/H
|
L/Min
|
R/Min
|
Mpa
|
Power Kw
|
|
|
KCB-18.3
|
1.1
|
18.3
|
1400
|
1.45
|
1.5
|
|
|
KCB-33.3
|
2
|
33.3
|
1420
|
1.45
|
2.2
|
|
|
KCB-55
|
3.3
|
55
|
1400
|
0.33
|
1.5
|
|
|
KCB-83.3
|
5
|
83.3
|
1420
|
0.33
|
2.2
|
|
|
KCB-135
|
8
|
135
|
940
|
0.33
|
2.2
|
|
|
KCB-200
|
12
|
200
|
1440
|
0.33
|
4
|
|
|
KCB-300
|
18
|
300
|
960
|
0.36
|
5.5
|
|
|
KCB-483.3
|
29
|
483.3
|
1440
|
0.36
|
7.5
|
|
|
KCB-633
|
38
|
633
|
970
|
0.28
|
11
|
|
|
KCB-960
|
58
|
960
|
1470
|
0.28
|
11
|
|
|
KCB-1200
|
72
|
1200
|
740
|
0.6
|
37
|
|
|
KCB-1600
|
96
|
1600
|
980
|
|
45
|
|
|
KCB-1800
|
110
|
1800
|
740
|
0.6
|
55
|
|
|
KCB-2500
|
150
|
2500
|
985
|
|
75
|
|
|
KCB-2850
|
170
|
2850
|
740
|
0.6
|
90
|
|
|
KCB-3800
|
230
|
3800
|
989
|
|
110
|
|
|
KCB-4100
|
245
|
4100
|
743
|
0.6
|
132
|
|
|
KCB-5400
|
325
|
5400
|
989
|
|
160
|
|
|
KCB-5600
|
330
|
5600
|
744
|
0.6
|
160
|
|
|
KCB-7600
|
460
|
7600
|
989
|
|
200
|
|
|
KCB-7000
|
420
|
7000
|
744
|
0.6
|
185
|
|
|
KCB-9600
|
570
|
9600
|
989
|
|
250
|
|
|
KCB-13000
|
800
|
13000
|
490
|
0.6
|
315
|
|
Application
Generally used in:
1.Petrochemicals: Pure or filled bitumen, pitch, diesel oil, crude oil, lube oil etc.
2.Chemicals: Sodium silicate, acids, plastics, mixed chemicals, isocyanates etc.
3.Paint and ink.
4.Resins and adhesives.
5.Pulp and paper: acid, soap, lye, black liquor, kaolin, lime, latex, sludge etc.
6.Food: Chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses, animal food etc.
1.Petrochemicals: Pure or filled bitumen, pitch, diesel oil, crude oil, lube oil etc.
2.Chemicals: Sodium silicate, acids, plastics, mixed chemicals, isocyanates etc.
3.Paint and ink.
4.Resins and adhesives.
5.Pulp and paper: acid, soap, lye, black liquor, kaolin, lime, latex, sludge etc.
6.Food: Chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses, animal food etc.
Packaging&Shipping
Comanpy information
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology and get clients' acceptation to cooperate with Globe 500 enterprises .Rely on high precision numerical control and advanced testing equipments, and level B bed stand, the company can ensure the products quality and precision. The company has passed ISO9001:2008 certificate.
Our products are consist of gear pump,screw pump,centrifugal pump,high viscosity rotator pump series and the main products are RY hot oil pump, KCB gear pump,YCB arc gear pump,2CY gear pump,3RP cam follower rotator pump,SHGB cam follower rotator pump,3G,SN,SM three screw pump,3GCL vertical screw pump,3GB heat preservation pitch three screw pump,2W.W sealing twin screw pump,G single screw pump,NYP,GNB inner ring high viscosity pump,LYB vertical arc gear pump,JQB turbine shear pump,CYZ self-suction centrifugal oil pump,KCG,2CG high temperature gear pump,LC,LCW roots pump,LCB pitch heat preservation pump,TSB chemical decoloration pump,LB refrigerating pump,ZYB,ZYB-B coke oil pump,oil pump,RJB solvent pump,CBN thickened oil pump,AH,H,M slurry pump,vertical slurry pump,YHCB circular gear pump,FXA-FXB stainless outer lubrication gear pump,ZA,ZE petrochemical process pump,IH single suction centrifugal pump,IHF fluoroplastic centrifugal pump,pneumatic and electric diaphragm pump,water ring and rotary vacuum pump,FB,AFB stainless corrosion resisting centrifugal pump ect. Totally more than 1200 types of products and some of them have received domestic initiate patent and reach the international advanced level.
Contact Us
Contact us for gear pump price and catalog
In order to confirm which type gear pump suitable for your job, could you please help us to confirm the following information:
1.What is your project with our gear pump,and which medium is required to be delivered?
2.What temperature is required for the liquid?
3.What is the pump flow,head,power,caliber,voltage,frequency and quantity? We could give you an accurate quotation.
1.What is your project with our gear pump,and which medium is required to be delivered?
2.What temperature is required for the liquid?
3.What is the pump flow,head,power,caliber,voltage,frequency and quantity? We could give you an accurate quotation.
