Quick Details
-
Walkie Talkie Type:
-
Analog radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Puxing transceiver
-
Model Number:
-

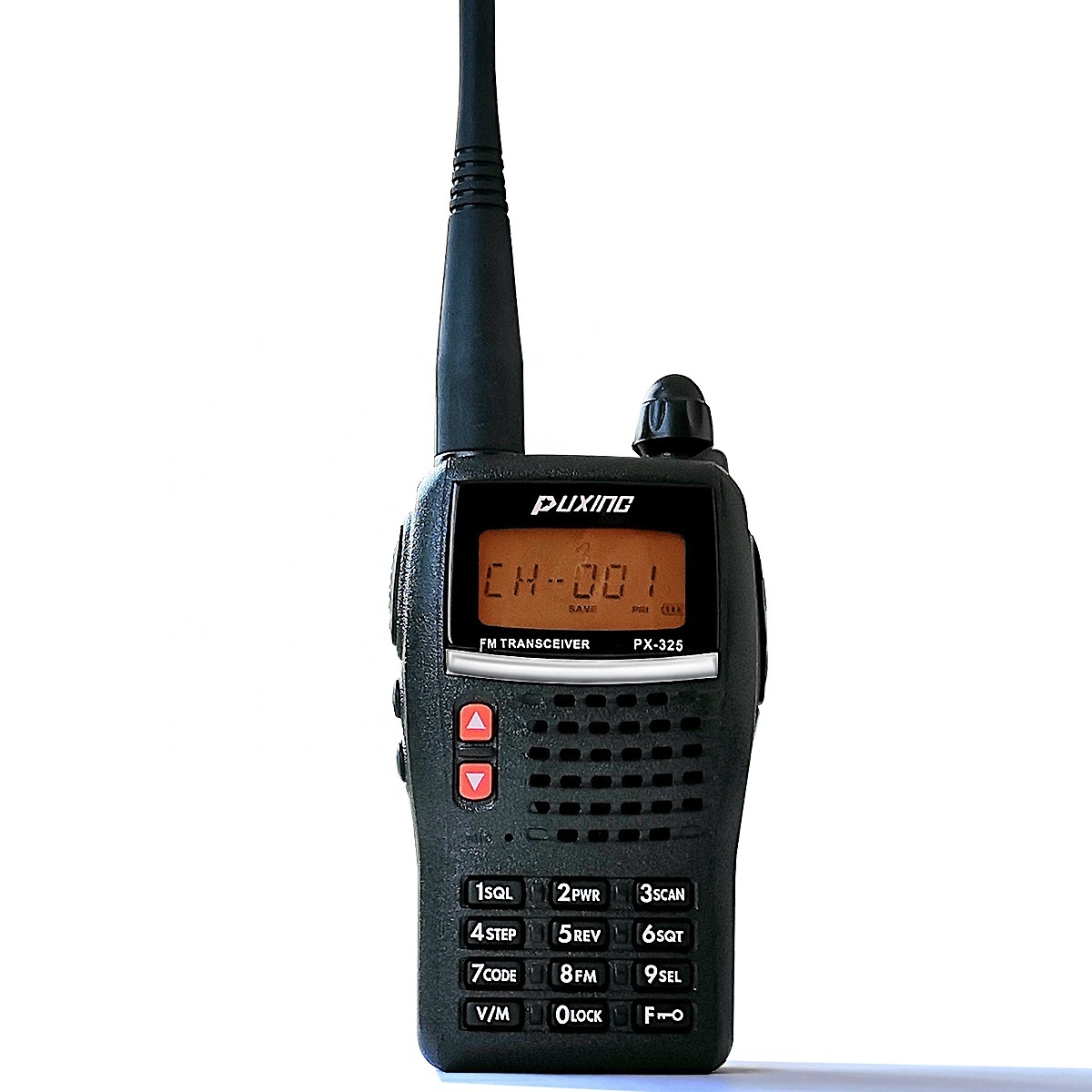

PX-325 transceiver
-
Dimensions:
-
112X59X34MM
-
Frequency Range:
-
136-174/400-470MHz
-
Product Name:
-
128 channels high quality ham radio 5 watts hf radio transceiver
-
color:
-
black
-
weight:
-
218g(including battery)
-
Battery:
-
1200/1600mAh
-
Output Power:
-
5W
-
Operating Voltage:
-
7.4V DC
-
Certificate:
-
CE
-
Warranty:
-
12 Months
-
power-off timer:
-
1-15H
-
power adjust:
-
by software
Quick Details
-
Talk Range:
-
5-10KM
-
Terminal style:
-
Handheld
-
Storage Channel:
-
128 Channels
-
Walkie Talkie Type:
-
Analog radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Puxing transceiver
-
Model Number:
-
PX-325 transceiver
-
Dimensions:
-
112X59X34MM
-
Frequency Range:
-
136-174/400-470MHz
-
Product Name:
-
128 channels high quality ham radio 5 watts hf radio transceiver
-
color:
-
black
-
weight:
-
218g(including battery)
-
Battery:
-
1200/1600mAh
-
Output Power:
-
5W
-
Operating Voltage:
-
7.4V DC
-
Certificate:
-
CE
-
Warranty:
-
12 Months
-
power-off timer:
-
1-15H
-
power adjust:
-
by software
128 channels high quality ham radio 5 watts hf radio transceiver
| MODEL | PX-325 |
| size | 112X59X34MM |
| Frequency Range | 136-174/400-470MHz |
| channels | 128channels |
| Output Power | VHF5W/UHF 4W |
| Battery capacity | 1200/1600mAh |
| Weight | 218g |
| Operate Mode | Simplex or Semi-duplex |
| Antenna Impedance | 50 Ω |
| Operating Voltage | -20℃~+50℃ |
| Features and functions | low power alert/batterysave/auto power-off timer (1-15H) |
| Busy channel lockout/ /All keys lock/PTT lock | |
| frequency input by keypad/power adjust by software | |
| Memory Channel(MR) and frequency(VFO) mode switchable | |
| built-in FM radio receiver | |
| VOX/VOX delay time/VOX sensitivity level adjustable | |
| Channel bank store | |
| Real-time DC voltage display | |
| Open message edit/password protection | |
| Alpha-Numeric channel name | |
| Repeater offset | |
| End roger | |
| Scan modes selectable(TO/CO) | |
| Side tone eliminated (STE) | |
| TX inhibit capability | |
| Part reset/All reset/Factory default reset | |
| Time out timer |
| TRANSMITTER | |
| channel spacing | Wide 25khz and Narrow 12.5khz band |
| Frequency Stability | ±2.5PPM |
| Max Frequency Deviation | ≤5KHz/2.5KHZ |
| Audio Distortion | ≤3% |
| Modulation Character | +3dB~-3dB |
| Adjacent Channel Power | ≥65dB/60dB |
| Spurious Radiation | ≤7.5uW |
| Occupied Bandwidth | ≤16KHz |
| RECEIVER | |
| RF Sensitivity | <0.2uV |
| Audio Distortion | ≤3% |
| Audio Response | +2dB~-10dB |
| Co-Channel Rejection | ≥-8dB |
| Adjacent Channel Selectivity | ≥60dB |
| Intermodulation Rejection | ≥65dB |
| Spurious Response | ≥70dB |
| Blocking | ≥80dB |
Main Items:
- 1 x Host
- 1 x DC7.4V single Li-ion Battery compatible
- 1 x Antenna
- 1 x Belt Clip
- 1 x Use’s Manual
- 1 x Charger
- 1 x Desktop Charger
- 1 x Hand strap
1. Q: What’s your MOQ?
A: 1pc if we have stock, if custom order, the moq is 500pcs, if your order qty can not reach 500pcs, pls contact us to discuss if there is any other solutions.
2. Q: Are you factory?
A: Yes, our factory was established in Quanzhou City in the year 1987, and moved to Xiamen city in the year 2005. We are a 10-year gold supplier on Alibaba, and awarded high trade assurance limit.
3. Q: Can you accept OEM&ODM order?
A: Yes, we are good at OEM&ODM and we provided this service for many Top brand all over the world.
4. Q: Do you have any certification?
A: Yes, we have CE, FCC and RoHS certificate. If you need other certificate, please contact us.
5. Q: When can you ship the products after payment?
A: For sample order, we can ship in about 7 days, if bulk order, normally 45days if no stock.
6. Q: What is your payment terms?
A: T/T or PayPal or L/C, also can accept Alibaba Trade Assurance.
7. Q: How to ship?
A: Normally small orders to be ship by courier (DHL,TNT,FedEx,UPS,etc.), bulk orders to be ship by sea or air, depends on customer’s requests.
8. Q: How long is the warranty?
A: We will do 100% QC inspection before shipment . And w e guarantee 12months for radios and 6months for accessories from the date you get the goods, excludes damaged by human .
