Quick Details
-
Brand Name:
-
Tuotian
-
Model Number:
-
CB100,CB200,CB321
-
Application Fields:
-
Steel Structural Fabrication Bailey Bridge
-
Keyword:
-
Steel Metal Frame Structure
-
Surface treatment:
-
1. Painting 2. Galvanized
-
Usage:
-
50 Years
Quick Details
-
Grade:
-
Q355B
-
Tolerance:
-
±1%
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Tuotian
-
Model Number:
-
CB100,CB200,CB321
-
Application Fields:
-
Steel Structural Fabrication Bailey Bridge
-
Keyword:
-
Steel Metal Frame Structure
-
Surface treatment:
-
1. Painting 2. Galvanized
-
Usage:
-
50 Years
Products Description
What is Bailey Bridge?
It was developed by the British during World War II for military use and saw extensive use by both British and the American
military engineering units. A Bailey bridge had the advantages of requiring no special tools or heavy equipment to assemble. It's easy to assemble and convenient. The function also differs on differs on different users of the bridge which could be pedestrians, common vehicles (car, bus,truck), heavy military equipment (tank) or the railway.
military engineering units. A Bailey bridge had the advantages of requiring no special tools or heavy equipment to assemble. It's easy to assemble and convenient. The function also differs on differs on different users of the bridge which could be pedestrians, common vehicles (car, bus,truck), heavy military equipment (tank) or the railway.
|
Product name:
|
Compact-100 Bailey Bridge
|
|
Model alias:
|
321-type prefabricated highway steel bridge (Bailey Bridge)
|
|
Derivative models:
|
CB100, Compact-100, British 321-Type Bailey Bridge.
|
|
Truss piece model:
|
Type 321 Bailey Panel
|
|
Conventional size of truss piece:
|
3 meters × 1.4 meters (hole to hole) usually also said: 3 meters X 1.5 meters (side to side)
|
|
Maximum span of steel bridge design:
|
51-meter single-span (if the total length is greater than 51 meters, it can be used as a multi-span continuous beam, and 200-type, GWD-type steel bridge can also be selected)
|
|
Standard lane width of steel bridge:
|
4.2 meters single lane (also can be customized according to customer needs)
|
|
Load class:
|
Class 10 for automobiles; Class 15 for automobiles; Class 20 for automobiles; Class 50 for crawlers; Class 80 for trailers; 40
tons for bicycles; AASHTO HS20, HS25-44, HL93, BS5400 HA + HB; City-A; City-B; Highway-I; Highway-II; Indian standard Class-40; Australian standard T44; Korean standard D24, etc. |
|
Design:
|
321 type SS, SSR, DS, DSR, TS, TSR, DD, DDR
According to the difference of span and load, select the appropriate row. Contact us for free design. |
|
Main material of steel bridge:
|
GB Q355B
|
|
Connecting bolt grade:
|
8.8 high-strength bolts
|
|
Surface corrosion:
|
Hot-dip galvanizing; paint; heavy-duty anti corrosive paint for steel structure; anti-skid aggregate treatment of bridge deck, etc.
|
|
Bridge erection method:
|
Cantilever push-out method; hoisting method; floating method; in-situ assembly method; soil pile construction method, etc.
|
|
Installation takes time:
|
7-14 sunny days after the abutment and other conditions are met (determined according to the length of the bridge and site
conditions) |
|
Installation requires workers:
|
6-8 (determined according to site conditions)
|
|
Equipment required for installation:
|
Cranes, hoists, jacks, chain hoists, etc. (Can be adjusted according to site conditions)
|
|
Steel bridge features:
|
Short delivery time, light fittings, fast assembly, interchangeable, detachable, long life
|
|
Pass the certification:
|
ISO,etc.
|
|
Annual output:
|
12000 tons
|
|
Product name:
|
Compact-200 Bailey Bridge
|
|
Model alias:
|
200-type prefabricated highway steel bridge (Bailey Bridge)
|
|
Derivative models:
|
CB200-type, HD200-type Bailey Bridge.
|
|
Truss piece model:
|
Type 200 Bailey Panel
|
|
Conventional size of truss piece:
|
3048mm*2134mm(hole centre distance)
|
|
Maximum span of steel bridge design:
|
Single Lane Maximum Allowable Span 60.96m
Double lane Maximum Allowable Span 45.72M
If the total length is greater than the maximum allowable span,it can be used as a multi-spam continuous beam.
|
|
Standard lane width of steel bridge:
|
Net width of bridge deck:
Standard single lane 3.15m
Extra width single lane 4.2m
Standard double lane 7.35m
|
|
Load class:
|
Class 10 for automobiles; Class 15 for automobiles; Class 20 for automobiles; Class 50 for crawlers; Class 80 for trailers; 40
tons for bicycles; AASHTO HS20, HS25-44, HL93, BS5400 HA + HB; City-A; City-B; Highway-I; Highway-II; Indian standard Class-40; Australian standard T44; Korean standard D24, etc. |
|
Design:
|
321 type SS, SSR, DS, DSR, TS, TSR, DD, DDR
According to the difference of span and load, select the appropriate row. Contact us for free design. |
|
Main material of steel bridge:
|
GB Q355B
|
|
Connecting bolt grade:
|
8.8 high-strength bolts
|
|
Surface corrosion:
|
Hot-dip galvanizing; paint; heavy-duty anti corrosive paint for steel structure; anti-skid aggregate treatment of bridge deck, etc.
|
|
Bridge erection method:
|
Cantilever push-out method; hoisting method; floating method; in-situ assembly method; soil pile construction method, etc.
|
|
Installation takes time:
|
7-14 sunny days after the abutment and other conditions are met (determined according to the length of the bridge and site
conditions) |
|
Installation requires workers:
|
6-8 (determined according to site conditions)
|
|
Equipment required for installation:
|
Cranes, hoists, jacks, chain hoists, etc. (Can be adjusted according to site conditions)
|
|
Steel bridge features:
|
lightweight components,easy disassembly and assembly,wide range of applications
|
|
Pass the certification:
|
ISO,etc.
|
|
Annual output:
|
12000 tons
|

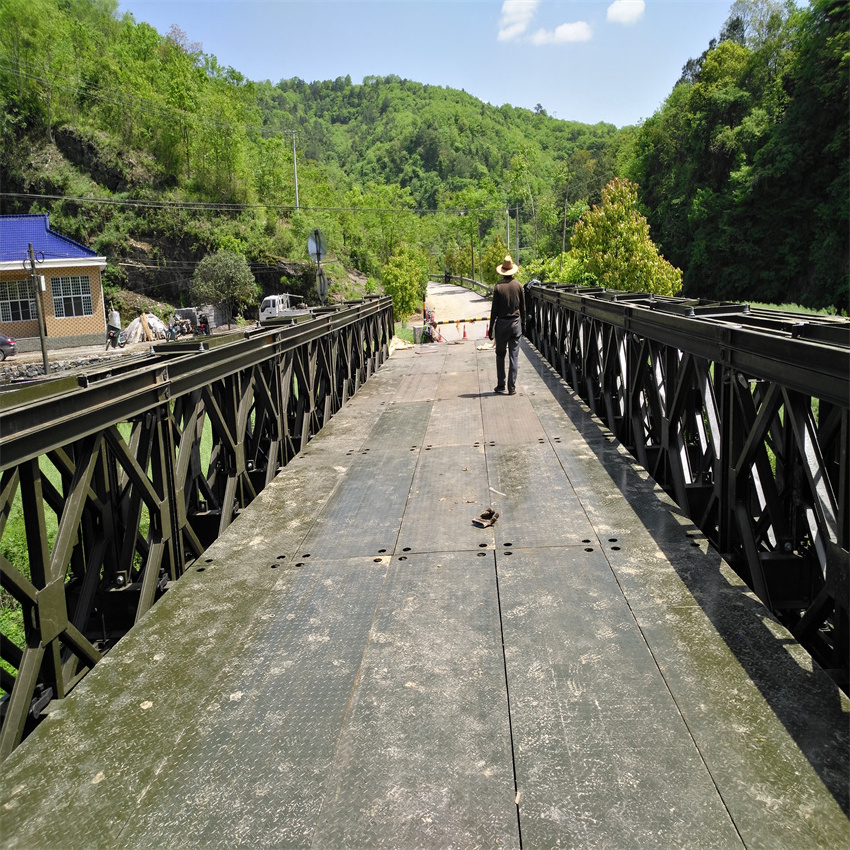

Cases
