Quick Details
-
Power:
-
8kw
-
Dimension(L*W*H):
-
2200*720*1200mm
-
Weight:
-
200 KG
-
Name:
-
spring roll wrapper making machine
-
Function:
-
spring roll/pancake/Samosa sheet making
-
Final product:
-
Tortilla Chapati Roti wrapper
-
Material:
-
304 Stainless Steel
-
Capacity:
-
300-900pcs/h
-
Shape:
-
Clients' Demands
-
Processing Types:
-
Grain Procesing Machine
-
Power Source:
-
Electric Gas
-
After-sales Service Provided:
-
on-line support
Quick Details
-
Place of Origin:
-
HEN
-
Brand Name:
-
QUATE
-
Voltage:
-
220V
-
Power:
-
8kw
-
Dimension(L*W*H):
-
2200*720*1200mm
-
Weight:
-
200 KG
-
Name:
-
spring roll wrapper making machine
-
Function:
-
spring roll/pancake/Samosa sheet making
-
Final product:
-
Tortilla Chapati Roti wrapper
-
Material:
-
304 Stainless Steel
-
Capacity:
-
300-900pcs/h
-
Shape:
-
Clients' Demands
-
Processing Types:
-
Grain Procesing Machine
-
Power Source:
-
Electric Gas
-
After-sales Service Provided:
-
on-line support
Product Overview

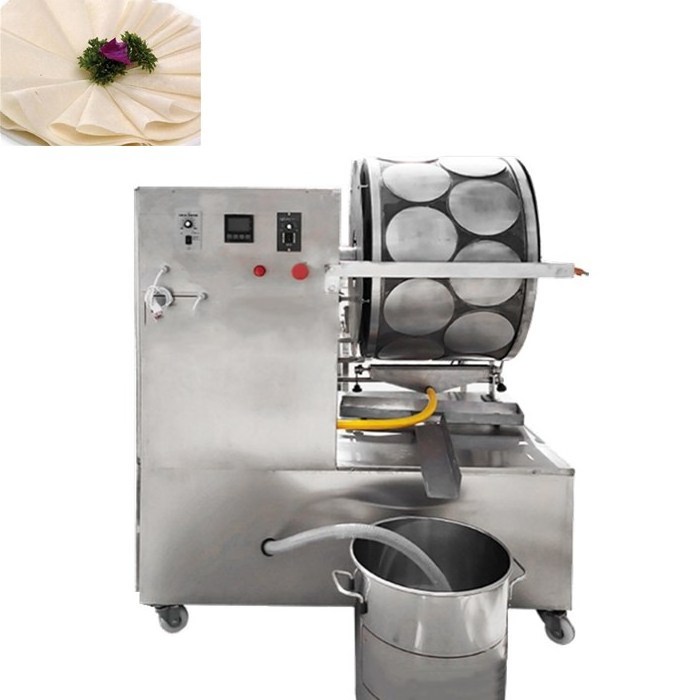

Automatic spring roll wrapper making machine
Principle:
The noodle paste is prepared according to the requirements of the noodle paste production process. After the noodle paste is heated and baked by a round baking wheel, it becomes a spring roll skin or other flaky food with a fixed thickness.
Process:
Put the prepared batter into the batter bucket, when the roasting wheel is heated to 150°C; start the batter pump to send the batter to the nozzle, and operate the clutch lever to make the batter adhere to the arc of the roasting wheel On the surface, when the baking wheel rotates through an angle of 270-300 degrees, the batter is matured and automatically separated from the baking wheel to form a spring roll skin with a fixed thickness. After being cut into squares by a cutting machine, it can be folded and sold, or wrapped immediately.
Product details
PRODUCT SPECIFICATIONS
|
Model
|
QTSP-1
|
|
|
Power source
|
Gas hated（can choose electric heating）
|
|
|
Capital（for single row）
|
400-1000pcs/h（depends on the size of the spring roll wrapper）
|
|
|
2 row and 3 row can be costomized
|
|
|
|
Gas consumption
|
0.6kg gas per hour of liquefied petroleum gas
|
|
|
Power consumption
|
0.43kw
|
|
|
Shape
|
round and square or customized
|
|
|
Conveyor belt length
|
1.2m
|
|
|
Main machine size
|
900*720*1200mm
|
|
|
Conveyor belt size
|
1300*530*400mm
|
|
|
Weight
|
250kg
|
|
Product Real Pictures
Final product
