Quick Details
-
Weight:
-
300-9500KG
-
Size:
-
different as each model
-
Power:
-
different as each model
-
Weight (KG):
-
200 kg
-
Product Name:
-
petrochemical sludge dewatering
-
Certification:
-
S GS/Ce/ISO 9001
-
Protection Level:
-
IP55 F
-
Electrical component:
-
Schneider/Omron/Customize
-
Motor:
-
SEW/NORD/Customize
-
Sludge Flow Treating Capacity:
-
0.14m3/h-55m3/h
-
DS Treating Capacity:
-
5-650kgds/h
-
Inlet SS Concentration:
-
1%-5%
-
Outlet cake moisture content:
-
75%-85%
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
BOEEP
-
Material:
-
Plywood Case, SS304/316
-
Weight:
-
300-9500KG
-
Size:
-
different as each model
-
Power:
-
different as each model
-
Weight (KG):
-
200 kg
-
Product Name:
-
petrochemical sludge dewatering
-
Certification:
-
S GS/Ce/ISO 9001
-
Protection Level:
-
IP55 F
-
Electrical component:
-
Schneider/Omron/Customize
-
Motor:
-
SEW/NORD/Customize
-
Sludge Flow Treating Capacity:
-
0.14m3/h-55m3/h
-
DS Treating Capacity:
-
5-650kgds/h
-
Inlet SS Concentration:
-
1%-5%
-
Outlet cake moisture content:
-
75%-85%
Products Description

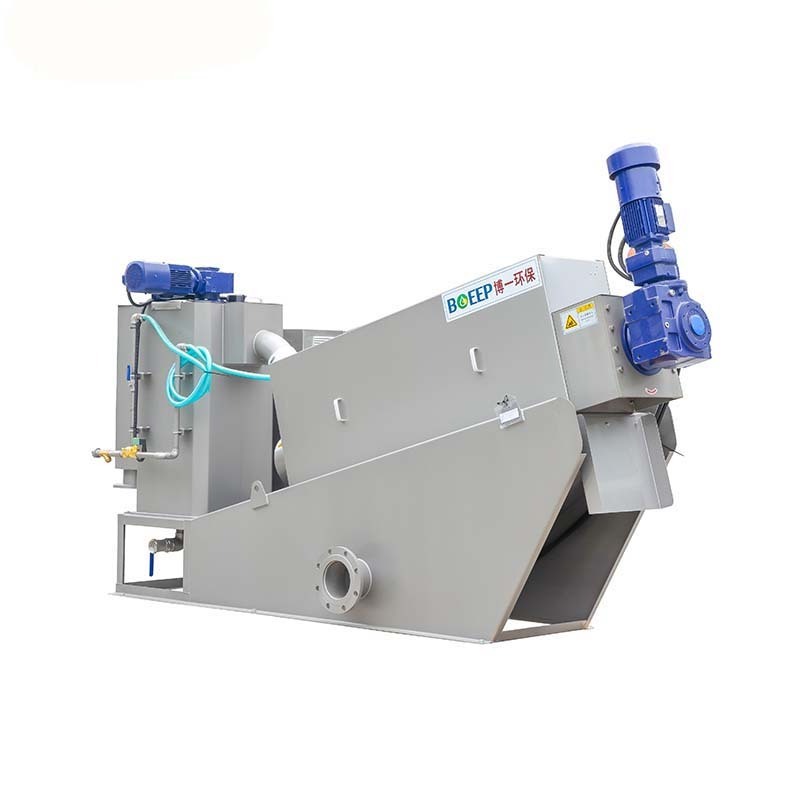

BOEEP volute screw press sludge dehydratering machine which uses the screw extrusion priciple is a new type of solide-liquid separation device. It reaches the goal of extrusion dewatering sludge by the powerful extrusion pressure of changing the screw diameter and distance along with the tiny spacing between moveable and fixed annular plates.
1-Low energy consumption.
2- Minimal water consumption.
3-Minimal noise.
4-Low polymer consumption.
5-No need for proceeding sludge thickening.
6-Suitable for any type of sludge even suitable for dewatering oil/grease rich sludge.
7-Minimal maintenance and operational cost.
8-Capable for working 24/7.
2- Minimal water consumption.
3-Minimal noise.
4-Low polymer consumption.
5-No need for proceeding sludge thickening.
6-Suitable for any type of sludge even suitable for dewatering oil/grease rich sludge.
7-Minimal maintenance and operational cost.
8-Capable for working 24/7.
Model Choice
|
Model
|
DS Sludge Treating Capacity
|
Sludge Flow Treating Capacity
|
|
|
|
|
||||
|
|
|
10000mg/L
|
20000mg/L
|
30000mg/L
|
40000mg/L
|
50000mg/L
|
||||
|
MYDL101
|
3-6kg/h
|
~0.3m3/h
|
~0.15m3/h
|
~0.13m3/h
|
~0.125m3/h
|
~0.12m3/h
|
||||
|
MYDL131
|
6-12kg/h
|
~0.6m3/h
|
~0.3m3/h
|
~0.26m3/h
|
~0.25m3/h
|
~0.24m3/h
|
||||
|
MYDL201
|
9-18kg/h
|
~0.9m3/h
|
~0.6m3/h
|
~0.5m3/h
|
~0.4m3/h
|
~0.36m3/h
|
||||
|
MYDL202
|
18-36kg/h
|
~1.8m3/h
|
~1.2m3/h
|
~1m3/h
|
~0.8m3/h
|
~0.72m3/h
|
||||
|
MYDL301
|
40-60kg/h
|
~4m3/h
|
~2.5m3/h
|
~2m3/h
|
~1.5m3/h
|
~1.2m3/h
|
||||
|
MYDL302
|
80-120kg/h
|
~8m3/h
|
~5m3/h
|
~4m3/h
|
~3m3/h
|
~2.4m3/h
|
||||
|
MYDL303
|
120-180kg/h
|
~12m3/h
|
~7.5m3/h
|
~6m3/h
|
~4.5m3/h
|
~3.6m3/h
|
||||
|
MYDL304
|
160-240kg/h
|
~16m3/h
|
~10m3/h
|
~8m3/h
|
~6m3/h
|
~4.8m3/h
|
||||
|
MYDL351
|
80-120kg/h
|
~8m3/h
|
~4m3/h
|
~3.5m3/h
|
~3m3/h
|
~2.4m3/h
|
||||
|
MYDL352
|
160-240kg/h
|
~16m3/h
|
~8m3/h
|
~7m3/h
|
~6m3/h
|
~4.8m3/h
|
||||
|
MYDL353
|
240-360kg/h
|
~24m3/h
|
~12m3/h
|
~10.5m3/h
|
~9m3/h
|
~7.2m3/h
|
||||
|
MYDL354
|
320-480kg/h
|
~32m3/h
|
~16m3/h
|
~14m3/h
|
~12m3/h
|
~9.6m3/h
|
||||
|
MYDL401
|
120-160kg/h
|
~12m3/h
|
~6m3/h
|
~5m3/h
|
~4m3/h
|
~3.2m3/h
|
||||
|
MYDL402
|
240-320kg/h
|
~24m3/h
|
~12m3/h
|
~10m3/h
|
~8m3/h
|
~6.4m3/h
|
||||
|
MYDL403
|
360-480kg/h
|
~36m3/h
|
~18m3/h
|
~15m3/h
|
~12m3/h
|
~9.6m3/h
|
||||
|
MYDL404
|
480-640kg/h
|
~48m3/h
|
~24m3/h
|
~20m3/h
|
~16m3/h
|
~12.8m3/h
|
||||
