Quick Details
-
Model Number:
-
AS931
-
Certification::
-
CE FCC certification
-
Measuring range:
-
: 0~1800μm
-
Measuring Principle::
-
Magnetic Induction
-
Accuracy::
-
±(3%±1μm)
-
Resolution::
-
0.1μm / 1μm
-
Technical parameter::
-
Technical index
-
usage:
-
manufacturing, workshop, chemistry or quality control fields
-
LCD display::
-
3 1 / 2 display
-
Data Storage::
-
15 groups
-
Operation temperature::
-
0~40℃
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
smart sensor
-
Model Number:
-
AS931
-
Certification::
-
CE FCC certification
-
Measuring range:
-
: 0~1800μm
-
Measuring Principle::
-
Magnetic Induction
-
Accuracy::
-
±(3%±1μm)
-
Resolution::
-
0.1μm / 1μm
-
Technical parameter::
-
Technical index
-
usage:
-
manufacturing, workshop, chemistry or quality control fields
-
LCD display::
-
3 1 / 2 display
-
Data Storage::
-
15 groups
-
Operation temperature::
-
0~40℃

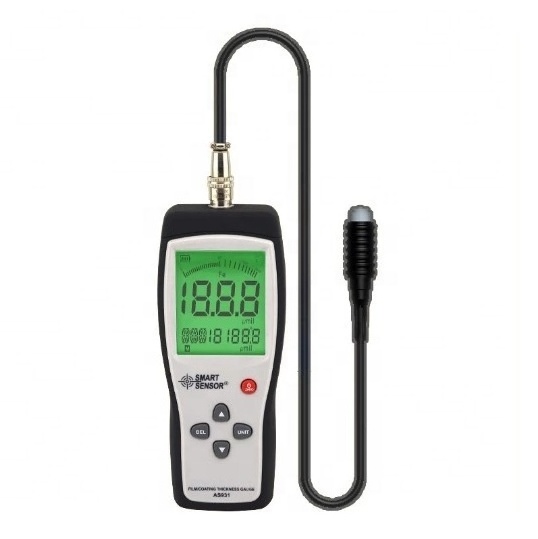

SMART SENSOR film coating thickness gauge,This product adopts magnetic induction technique for measurement. The compact design perform fast, precise and non-destructive digital coating measurement and plating on steel magnetic conductor. It is widely used on manufacturing, workshop, chemistry or quality control fields.
Features:
1. LCD display measurement value and status.
2. Using Hi-sensibility sensor for precise measurement.
3. 0 point, 2 point and basic, three different calibration modes easy to process the system calibration.
4. Measure mode:Single, continually and difference.
5. Data record, recall and delete function.
6. Data analysis: Average, Maximum, Minimum, standard deviation, and measure times.
7. Beep sounds indication.
8. Imperial and Metric unit selection.
9. Low Battery indication.
10. Auto power off .
11. LCD backlight.
12. Simple, compact and portable design.
