We are professional manufacturer of labeling machine, date coding machine, laser marking machine and related products
since 2004 in China. Now have over 150 employees, covering an area of 46,609 square meters, annual production capability is 16,500 sets of machines.
NanYun company elected as National High & New Technology Enterprise, honored as province famous brand, gained more than 20 domestic patents and passed the
CE, ISO 9001 certification, verified factory assessed by Intertek
, NY brand machine sell well across the country and also exported to America, Spain, Australia, Italy, India and 30 other countries and regions.
NY products include
date coding machine, thermal transfer printer, laser marking machine, ink jet printer, labeling machine, hole punching machine, bottle unscrambler,
cover impressing machine, bottle seaming machine, capping machine, carton sealing machine, metal detector, weight checker, automation line, hot ink roll, hot stamp foil, brass characters, widely used in many fields of foodstuffs, pharmaceuticals, beverages, cosmetics, household paper and so on.
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
ink
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NanYun
-
Voltage:
-
AC220V 50/60HZ
-
Dimensions(L*W*H):
-
300Wx450Dx674H
-
Weight:
-
30 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
continuous ink jet printer
-
Print speed:
-
max.1500 characters/second
-
Ink colors:
-
black
-
Printing content:
-
date, time, series, barcode, QR
-
Ink volume:
-
500ml
-
Print Lines:
-
1~4 Lines
-
Font:
-
Gothic, Mincho, SimSun
-
Nozzle bore size:
-
60μm
-
Character height:
-
1-10mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Print Dimension:
-
1-4 lines
-
Condition:
-
New
-
Color & Page:
-
single color
-
Ink Type:
-
ink
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NanYun
-
Voltage:
-
AC220V 50/60HZ
-
Dimensions(L*W*H):
-
300Wx450Dx674H
-
Weight:
-
30 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
continuous ink jet printer
-
Print speed:
-
max.1500 characters/second
-
Ink colors:
-
black
-
Printing content:
-
date, time, series, barcode, QR
-
Ink volume:
-
500ml
-
Print Lines:
-
1~4 Lines
-
Font:
-
Gothic, Mincho, SimSun
-
Nozzle bore size:
-
60μm
-
Character height:
-
1-10mm
-
After Warranty Service:
-
Video technical support
Product Description

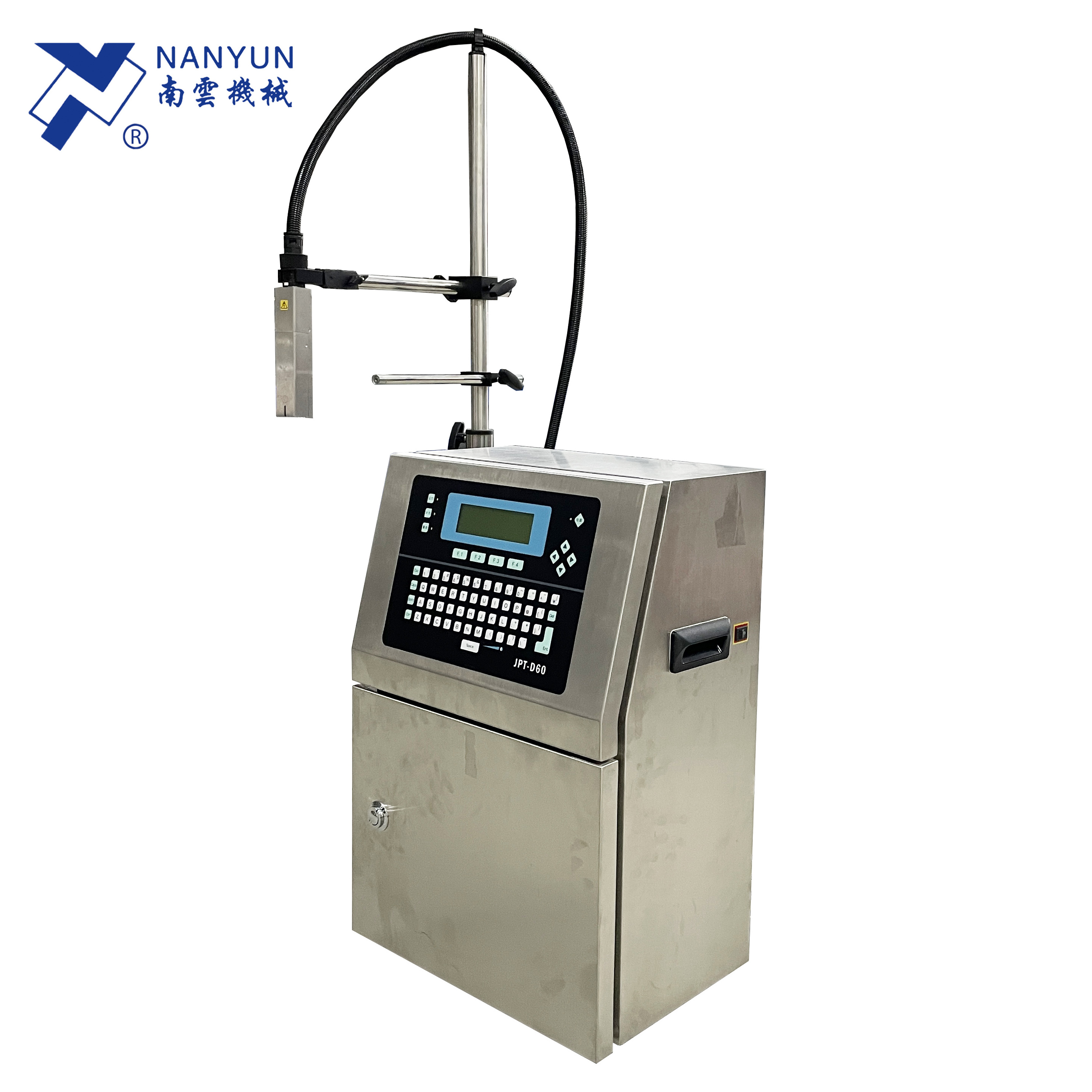

JPT-D continuous inkjet printer
※Applications:
Extremely versatile and robust JPT-D industrial inkjet designed to provide superior quality coding at various production
environments on wide range of substrates & applications. Flexible code design, including the ability to mark serial numbers, batch codes, expiry dates, bar codes and logo on various uneven and flexible surfaces of substrates.
※Lower Consumption:
Equipped with 50ųm nozzle (60ųm nozzle as an option without any required change in hardware and software). Comparing with 60ųm, the consumption ratio of 50ųm is 1:1.7 e.g. with the same quantity of ink, 50ųm-nozzle’s print out will be 1.7 times more than 60ųm-nozzle. As the 50ųm-nozzle produces smaller ink drops ( or dot ), it will consume less solvent compared to the 60ųm-nozzle.
Furthermore, smaller ink dots produce clearer prints and able to achieve up to around 150 million characters per liter of ink.This enable our customer to enjoy more savings while maximizing efficiency and effectiveness.
※Automatic Interval Setting:
JPT-D’s automatic start-up and shut down function can be programmed. It is designed to help circulating the ink during
non-operation. This reduces the risk of nozzle clogging due to internal ink dry problem. Start-up and shut down interval can be set arbitrarily via timer.
※Minimum Maintenance, More Reliable Production:
JPT-D applied 'Pending Retractable Gutter Sealer’ technology, this is a new technology in reducing operation cost and virtually maintenance free. It utilized the gutter tube sealing onto the nozzle by slider during non-operation. During operation, the gutter will open automatically and closed when production stop. With this technology, it prevent nozzle from dust, which can cause ink line deflection. This also can prevent dry ink clogging around the nozzle area.
※Provide Reliable Printing in Harsh and Dusty Production Environments:
Robust JPT-D industrial inkjet is designed to IP54. JPT-D is designed for use in the demanding production environments under temperature of 0-45 degrees thanks to the heater built in the printhead. Built in internal purging pump to improve printer capability in dusty production environments.
※Easy to Use
Features WYSIWYG (what you see is what you get) display with full keyboard controller to ensure easy data entry and print checks.
Extremely versatile and robust JPT-D industrial inkjet designed to provide superior quality coding at various production
environments on wide range of substrates & applications. Flexible code design, including the ability to mark serial numbers, batch codes, expiry dates, bar codes and logo on various uneven and flexible surfaces of substrates.
※Lower Consumption:
Equipped with 50ųm nozzle (60ųm nozzle as an option without any required change in hardware and software). Comparing with 60ųm, the consumption ratio of 50ųm is 1:1.7 e.g. with the same quantity of ink, 50ųm-nozzle’s print out will be 1.7 times more than 60ųm-nozzle. As the 50ųm-nozzle produces smaller ink drops ( or dot ), it will consume less solvent compared to the 60ųm-nozzle.
Furthermore, smaller ink dots produce clearer prints and able to achieve up to around 150 million characters per liter of ink.This enable our customer to enjoy more savings while maximizing efficiency and effectiveness.
※Automatic Interval Setting:
JPT-D’s automatic start-up and shut down function can be programmed. It is designed to help circulating the ink during
non-operation. This reduces the risk of nozzle clogging due to internal ink dry problem. Start-up and shut down interval can be set arbitrarily via timer.
※Minimum Maintenance, More Reliable Production:
JPT-D applied 'Pending Retractable Gutter Sealer’ technology, this is a new technology in reducing operation cost and virtually maintenance free. It utilized the gutter tube sealing onto the nozzle by slider during non-operation. During operation, the gutter will open automatically and closed when production stop. With this technology, it prevent nozzle from dust, which can cause ink line deflection. This also can prevent dry ink clogging around the nozzle area.
※Provide Reliable Printing in Harsh and Dusty Production Environments:
Robust JPT-D industrial inkjet is designed to IP54. JPT-D is designed for use in the demanding production environments under temperature of 0-45 degrees thanks to the heater built in the printhead. Built in internal purging pump to improve printer capability in dusty production environments.
※Easy to Use
Features WYSIWYG (what you see is what you get) display with full keyboard controller to ensure easy data entry and print checks.
|
Print mode
|
Continuous (Charge control system)
|
|
Character height
|
1-10mm
|
|
Print speed
|
Max.1500 characters/second
|
|
Character type
|
Alphabet (upper/lower case),figures, symbols, Katakana and Hiragana, Chinese characters (JIS 1st and 2nd standard), user
characters and simplified Chinese characters(GB2312) |
|
Number of printing lines and number of dots (Vertical×horizontal)
|
【1 to 4 lines】：5×5； 【1 to 3 lines】：7×8，7×5； 【1 to 2 lines】：12×10，10×8，9×9，9×7； 【1 line】：24×24，24×18，16×16，16×12
|
|
Font
|
Gothic, Mincho, SimSun
|
|
Number of messages to register
|
Maxinum 50 messages
|
|
Date & Time (expiration date) Print Function
|
AD year, Japanese era name, year/date, day of week, time (12/24 schedule),annual serial date, annual serial week number,
early/middle/late part of month(variable term setting),AM/PM and the replace-character function(replaces year, month, day, time, minute and second with different characters in single-digit) |
|
Numbering function
|
Max 8 digits, optional default value setting, up/down, carry(1 count can be set ranging from 1 to 9999 works),zero suppression
function(replaces zeros in higher digits with spaces),numbering replace-character function(replaces with characters other than figures) |
|
Bar code printing function
|
ITF, NW7, JAN, Code39/Code128
|
|
Communications Function
|
RS-232C1ch, 38400 BPS max.
|
|
Head cable
|
3.5m
|
|
Nozzle bore size
|
50μm, 60μm
|
|
Date input
|
Full keyboard, RS-232C communications
|
|
User interface
|
Japanese, Chinese, English ※ Please note that there may be some languages not applicable on their fonts installed.
|
|
Dimension (width x depth x height)
|
Main body: 300W×450D×674H;
Print head: 40W×199D×404H; |
|
Operating environment
|
Temperature:0℃-40℃，Humidity: 10-80%RH (non-condensing )
|
|
Power supply
|
AC220V 50/60HZ 70W（100VA）
|
|
Ground
|
Type D ground
|
|
Net weight
|
30kgs
|
