Quick Details
-
Drilling Speed:
-
31-1400r/min
-
Place of Origin:
-
China
-
Brand Name:
-
Luzhong Brand
-
Model Number:
-
ZK5140C ZK5150C
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1550*1530*2512
-
Weight (KG):
-
3000 KG
-
Product name:
-

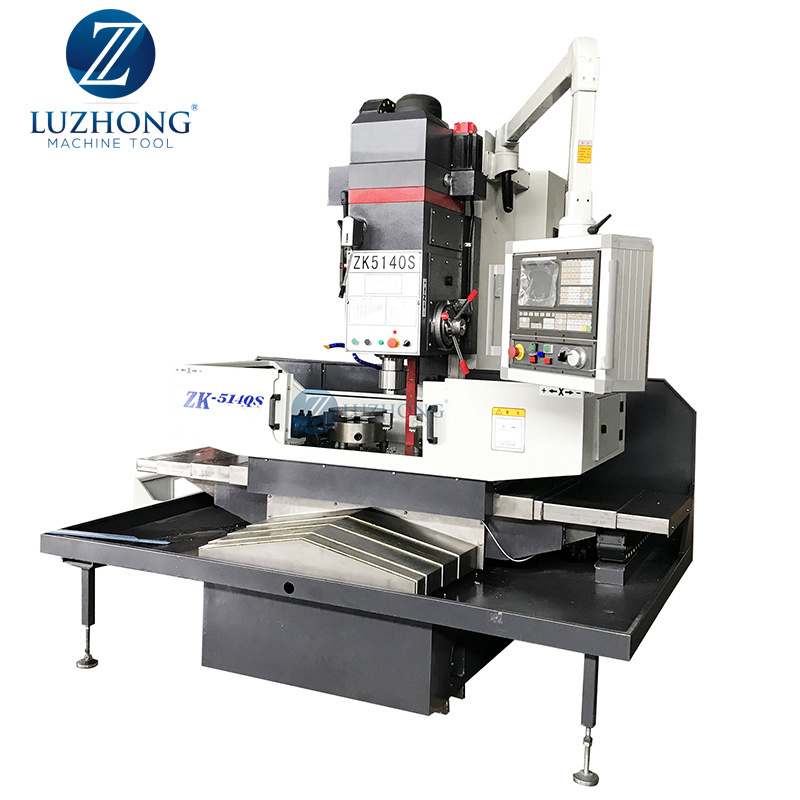

lathe milling drilling machine ZK5140S mini cnc drilling machine
-
model:
-
ZK5140C ZK5150C
-
keywords:
-
vertical drilling machine price
-
keywords2:
-
cnc drill and tapping machine
-
keywords3:
-
mini cnc drilling machine
-
Max. drilling diameter:
-
40/50
-
Feed resistance:
-
16000
-
Spindle taper:
-
4/5
-
MAIN MOTOR POWER:
-
3-4
-
Weight:
-
3000kg
-
Certification:
-
CE ISO
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
40 mm
-
Range of Spindle Speed(r.p.m):
-
31.5 - 1400 r.p.m
-
Drilling Speed:
-
31-1400r/min
-
Place of Origin:
-
China
-
Brand Name:
-
Luzhong Brand
-
Model Number:
-
ZK5140C ZK5150C
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1550*1530*2512
-
Weight (KG):
-
3000 KG
-
Product name:
-
lathe milling drilling machine ZK5140S mini cnc drilling machine
-
model:
-
ZK5140C ZK5150C
-
keywords:
-
vertical drilling machine price
-
keywords2:
-
cnc drill and tapping machine
-
keywords3:
-
mini cnc drilling machine
-
Max. drilling diameter:
-
40/50
-
Feed resistance:
-
16000
-
Spindle taper:
-
4/5
-
MAIN MOTOR POWER:
-
3-4
-
Weight:
-
3000kg
-
Certification:
-
CE ISO
Product Description
Specification
|
Main Technical Specifications
|
Unit
|
ZK5140S
|
ZK5150S
|
|
|
Max. drilling diameter
|
mm
|
40
|
50
|
|
|
Max. Feed resistance
|
N
|
16000
|
20000
|
|
|
Max. Torque of spindle
|
Nm
|
350
|
400
|
|
|
Spindle taper
|
Morse
|
4
|
5
|
|
|
Main motor power
|
kw
|
3
|
4
|
|
|
Range of spindle speed
|
r/min
|
31.5-1400(12step)
|
|
|
|
X/Y/Z axis fast moving speed
|
Mm/min
|
8000/8000/7000
|
|
|
|
Spindle box stroke
|
mm
|
620(Manual)
|
|
|
|
X axis travel
|
mm
|
900
|
|
|
|
Y axis travel
|
mm
|
420
|
|
|
|
Z axis travel
|
mm
|
250(automatic 240)
|
|
|
|
Distance between spindle nose to worktable
|
mm
|
0-800
|
|
|
|
Control method
|
mm
|
Microcomputer three-axis control, X,Y-coordinate linkage
|
|
|
|
Worktable size (L*W )
|
mm
|
850×450
|
|
|
|
Positioning accuracy (X and Y)
|
mm
|
0.05(0.04)
|
|
|
|
Repeat positioning accuracy (X and Y)
|
mm
|
0.02(0.015)
|
|
|
|
Machine Weight
|
kg
|
2700
|
|
|
|
Dimensions (L*W*H)
|
mm
|
2060x2160x2550
|
|
|
Details Display
Recommend Products
Company Profie
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
