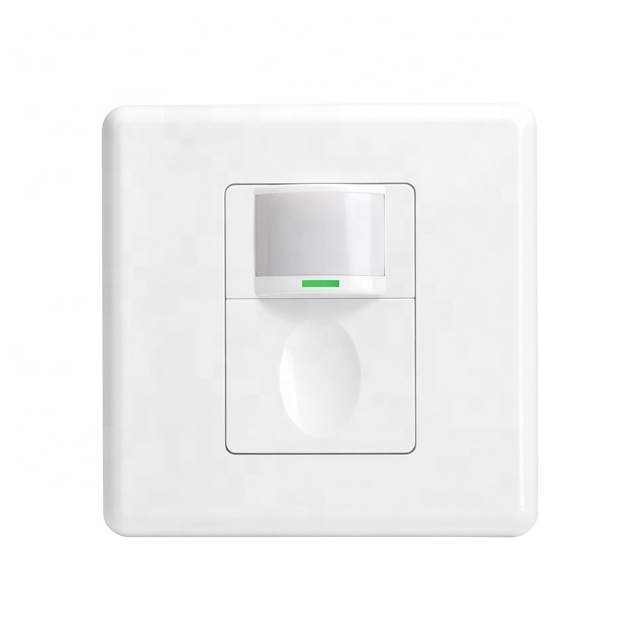

RZ022-10A LED light wall mounted sensor switch 220VAC occupancy adjustable automatic daylight sensor switch

RZ022-10A LED light wall mounted sensor switch 220VAC occupancy adjustable automatic daylight sensor switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10.4

≥10 Pieces

US $9.5

≥100 Pieces

US $9

≥1000 Pieces

US $8.5

Free Inquiry

Customized Request

Explore More Products

Eu Standard Automatic On And Off French Electric Interruptor Light Wall Switch

$ 4.1

Wholesale European New Style 1 Gang 1 Way Wall Light Switch With Led Indicator

$ 4.1

Modern Design Home Museum Led Light Fixture French Standard Electrical Wall Switch And Socket

$ 4.1

Eu Standard Pc Material Push Button Led Controller Indicator 2 Way Electrical Plastic Wall Light Switch

$ 4.1

EU Standard Electrical 2 Gang 1 Way Wall Switches Push Button Light Switch With Led

$ 4.1

Product Details

{{item.text}}

Quick Details

Model Number:: RZ022-10A

Type:: pir motion sensor switch

Power:: Fluorescent/Ballast/LED: 1000W / 220VAC

Sensing Range:: 6-9m (<27℃)

Product Type:: PIR Motion Sensor Switch

Power Source:: 100V~265VAC

Sensor Mode:: Vacancy , Occupancy , Occupancy without light sensor , Manual ON/OFF

Time-Delay:: 15 s, 1 min(default), 3 min, 5 min, 15 min, 30 min

Installation Height:: 1.2m~1.6m

Detection Angle:: ≤150°

Detection Distance:: 6-9m (<27℃)

Light Sensor:: Off, 15 Lux, 25 Lux (default), 35 Lux

Sensor Sensitivity::: Low sensitivity, High sensitivity

Certification:: CE, RoHS, FCC

Quick Details

Voltage:: 100V~265VAC

Place of Origin:: Guangdong, China

Brand Name:: Rayzeek

Model Number:: RZ022-10A

Type:: pir motion sensor switch

Power:: Fluorescent/Ballast/LED: 1000W / 220VAC

Sensing Range:: 6-9m (<27℃)

Product Type:: PIR Motion Sensor Switch

Power Source:: 100V~265VAC

Sensor Mode:: Vacancy , Occupancy , Occupancy without light sensor , Manual ON/OFF

Time-Delay:: 15 s, 1 min(default), 3 min, 5 min, 15 min, 30 min

Installation Height:: 1.2m~1.6m

Detection Angle:: ≤150°

Detection Distance:: 6-9m (<27℃)

Light Sensor:: Off, 15 Lux, 25 Lux (default), 35 Lux

Sensor Sensitivity::: Low sensitivity, High sensitivity

Certification:: CE, RoHS, FCC

LED light wall mounted sensor switch 220VAC occupancy adjustable automatic daylight sensor switch

The RZ022-10A is an EU style 10A wall mounted occupancy sensor switch which uses advanced passive infrared sensor(PIR) and MCU control. Compared to traditional motor sensor, it can automatically turn lights or fan on/off by detecting heat emitted from the motion, and have better stability and energy saving performance.

Function: Occupancy, vacancy, manual mode all-in-one
Main Spec: 100V~265VAC , 10A, Europe standard
Certification: FCC, RoHS certified

Motion Sensor Light Switch

It’s never too late to experience convenient, energy-saving, and hands-free motion-activated lighting. Easily save up to 60% of
energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.

The versatile RZ022 motion sensor switch is applicable for every residential and commercial application with occupancy, vacancy, and ON/OFF modes integrated for max compatibility, flexibility, and ease of use.

10 Minute Quick Installation

The RZ022-10A series is designed for the EU standard for single-pole applications. The 100V-265V voltage range works well in homes
and offices and the 10A current rating is capable of high load commercial grade applications.

RZ022-10A is a 3-wire switch required neutral wire for installation.

Features, Benefits, Specs

The ultimate energy-saving & lighting automation solution – switch from Auto ON/Auto OFF, Manal ON/Auto OFF, and Manal ON/Manual OFF operating mode for your multi-purpose room.

Features & Benefits

* Occupancy, Vacancy, Manual ON/OFF mode 3 in 1
* Exclusive ON/OFF mode allows the sensor switch to work the same as a standard light switch
* Time delay options: 15s, 1 min, 3 mins, 5 mins, 15 mins, 30 mins
* Enable ambient light sensor to keep lights off when there is ample natural light
* Low and high sensitivity adjustable
* Adjust settings by tapping buttons without removing the switch plate
* Magnetic latching relay provides better performance
* Made of fire-resistant materials for your safety
* RoHS, CE, FCC certified

Products Description

Features	Sensor Mode	Vacancy mode, Occupancy mode, Manual ON/OFF mode
		Time-Delay	15 s, 1 min(default), 3 mins, 5 mins, 15 mins, 30 mins
		Light Sensor	Off, 15 Lux, 25 Lux (default), 35 Lux
		Sensor Sensitivity	Low Sensitivity, High Sensitivity

Features	Power Source	100V~265VAC
		Power Frequency	50 / 60Hz
		Installation Height	1.2 m ~ 1.6 m
		Working Humidity	< 93%RH
		Working Temperature	-20 ~ +40℃

Detection Capability	Detection Distance	6 m ~ 9 m (<27℃)
		Detection Range	≤150°
		Detection Speed	0.6 ~ 1.5m/s

Bulb Compatibility	Fluorescent / Ballast / LED	1000 W / 220 VAC
		Incandescent / Halogen	2200 W / 220 VAC

RZ022-10A

* 10A Load: Ideal for high load applications, i,e, controlling multiple lights or HVAC

* 3-Wire Wiring: Hot Wire, Load Wire, Neutral Wire

European Standard Switch

RZ022 motion sensor switch is designed for replacing light switches in the EU region where the round electrical switch boxes are
commonly used. Also suitable for regions using the European standard switch boxes:
* Austria
* Germany
* France

Applications

EU Standard Wall Mounted PIR Motion Sensor Switch RZ022 Series

Europe standard wall switch RZ022 combines occupancy mode, vacancy mode, on-off mode. It's perfect for normal family, and disabled, and where need save electricity and do not like hand touch everytime.

Product Paramenters

User Adjustable Working Modes Options for Light Control PIR Wall Switch RZ022 Series	Controlled by: Small Button	Control Way: Long Press > 4 seconds	1. Enter into Vacancy.	Button pressing ends when indicator flash red for 1 time.
						2(1). Enter into Occupancy.	Button pressing ends when indicator flash red for 2 times.
						2(2). Enter into Occupancy without light sensor.	Button pressing ends when indicator flash red for 3 times.
				Control Way: Short press < 4 seconds	3(1). Enter into ON-OFF.	Indicator will not flash when pressing button.
		Controlled by: Big Button	Control Way: Short press < 4 seconds	3(2). Exit from ON-OFF.	Indicator will not flash when pressing button.

User Adjustable Time Delay Options for Light Control PIR Wall Switch RZ022 Series	Controlled by: Big Button	Control Way: Long Press > 4 seconds	15 seconds	Button pressing ends when indicator flash for 1 time.
					1 minute	Button pressing ends when indicator flash for 2 times.
					3 minutes	Button pressing ends when indicator flash for 3 times.
					5 minutes	Button pressing ends when indicator flash for 4 times.
					15 minutes	Button pressing ends when indicator flash for 5 times.
					30 minutes	Button pressing ends when indicator flash for 6 times.

User Adjustable Sensor Sensitivity Options for Light Control PIR Wall Switch RZ022 Series	Controlled by: Small Button and Big Button	Control Way: Long Press > 4 seconds	High Sensitivity	Button pressing ends when indicator flash yellow for 1 time.
						Low Sensitivity	Button pressing ends when indicator flash yellow for 2 times.

User Adjustable Light Sensor Illuminance Options for Light Control PIR Wall Switch RZ022 Series	Controlled by: Small Button and Big Button	Control Way: Long Press > 4 seconds	15 Lux	Button pressing ends when indicator flash yellow for 3 times.
					25 Lux	Button pressing ends when indicator flash yellow for 4 times.
					35 Lux	Button pressing ends when indicator flash yellow for 5 times.
