2. Simple structure ------- Reduce the cost of steel structure (Average 20 USD per sqm)
- Product Details
- {{item.text}}
Quick Details
-
Panel Size:
-
500mmx1000mm
-
Place of Origin:
-
China
-
Model Number:
-
M Series
-
Life span:
-
100000 Hours
-
Warranty:
-
5 Years
-
Certificate:
-
CE RoHS Certifications
-
Brightness:
-
7500cd/sqm
-
Waterproof:
-
Back IP67 Front IP67
-
Module size:
-
250mm x 125mm
-
Cabinet size:
-
500mm x1000mm
-
Function:
-
Display Video/Picture
-
Pixel Pitch:
-
31mm
Quick Details
-
Application:
-
Advertising, Advertising
-
Brand Name:
-
LIONLED
-
Color:
-
RGB, 1R1G1B
-
Panel Size:
-
500mmx1000mm
-
Place of Origin:
-
China
-
Model Number:
-
M Series
-
Life span:
-
100000 Hours
-
Warranty:
-
5 Years
-
Certificate:
-
CE RoHS Certifications
-
Brightness:
-
7500cd/sqm
-
Waterproof:
-
Back IP67 Front IP67
-
Module size:
-
250mm x 125mm
-
Cabinet size:
-
500mm x1000mm
-
Function:
-
Display Video/Picture
-
Pixel Pitch:
-
31mm

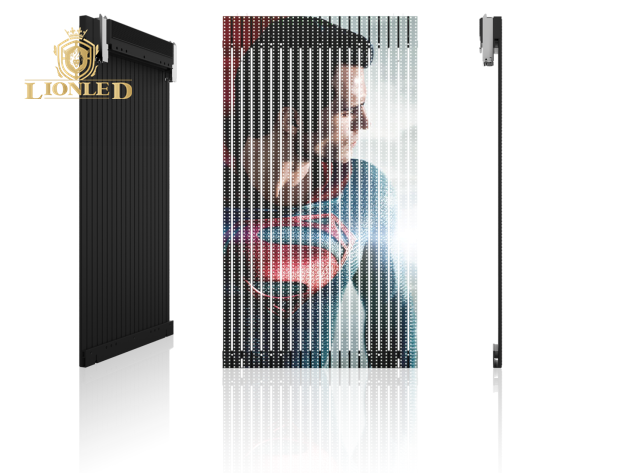

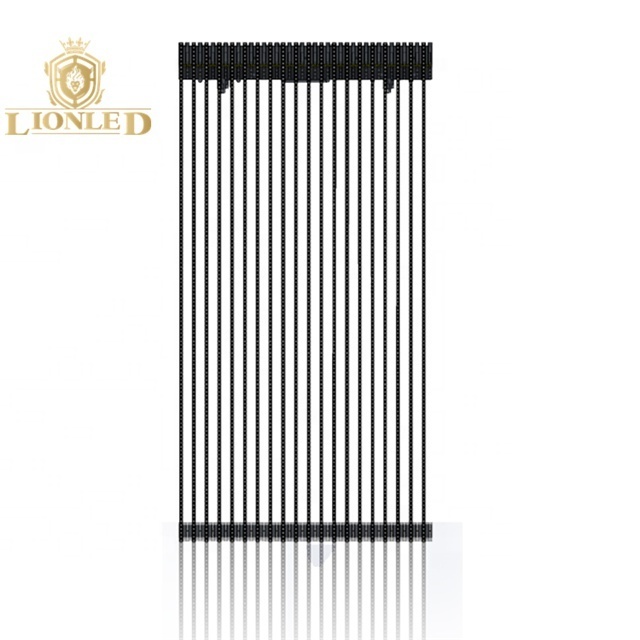

Hot sale Transparent p7.8 p15.6 p25 p31.25 outdoor mesh led screen /transparent led curtain display For Advertising
Product Description
Energy Efficient And Labor Efficient
1.Energy efficient--------Average 160W per sqm
2.Labor efficient--------Reduce the labor time and cost by 65%
Extremely Light Weight And Stability Long Life Time

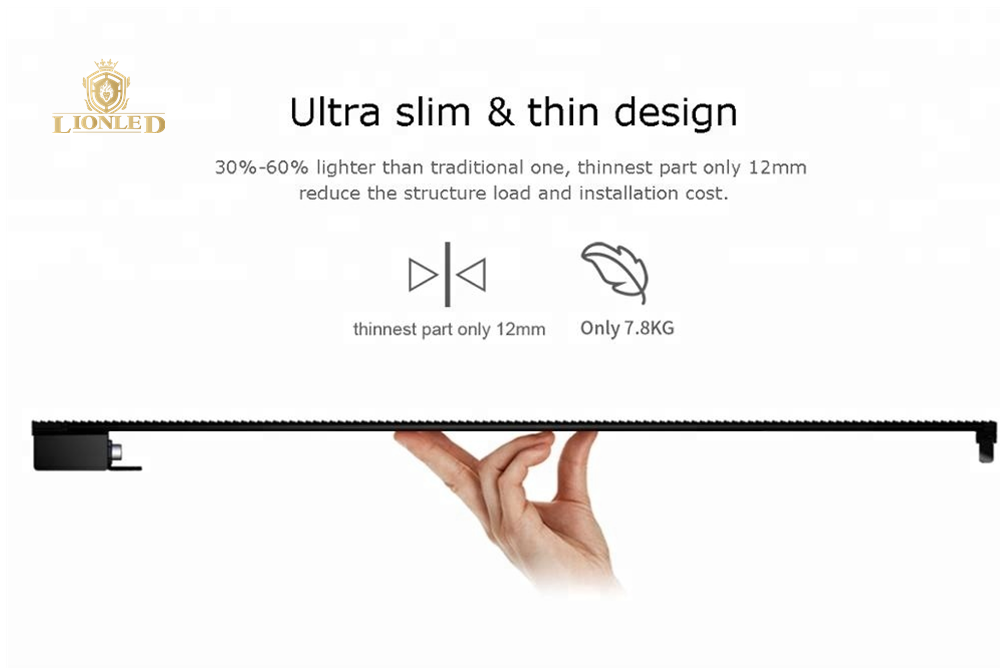

1. Extremely light weight------16kgs/sqm, can be install onto building glass wall
2. Stability long life time-------Low consumption of electricity to increase the lifetime of LEDs
Fast Installation And
Simple Structure
1. Fast installation ------ Average 5-10 seconds to install an individual cabinet.
Product Specification
|
Model No.
|
|
M 15
|
M 20
|
M31-15
|
M 31
|
||||
|
LED
|
|
DIP346/SMD3535
|
|
|
|
||||
|
Pixel Pitch
|
|
15.6-15.6mm
|
20-20mm
|
31-15.6mm
|
31-31mm
|
||||
|
Pixel Resolution
|
|
4096pixel/m2
|
2500pixel/m2
|
2048pixel/m2
|
1024pixel/m2
|
||||
|
Module Dimension
|
|
500mm x 1000mm(W X H)
|
|
|
|
||||
|
Pixel Composing
|
|
1R1G1B
|
|
|
|
||||
|
Cabinet Material
|
|
6061 Stretch aluminium 6061
|
|
|
|
||||
|
Cabinet Weight
|
|
6-9kg/sqm
|
|
|
|
||||
|
Viewing Angle
|
|
H:>110° V:>60°
|
|
|
|
||||
|
Color Temperature
|
|
6000-9500K
|
|
|
|
||||
|
Gray Scale
|
|
14-16bit
|
|
|
|
||||
|
Max Power Consumption
|
|
300-400W/m2
|
|
|
|
||||
|
Average Power Consumptionn
|
|
100-150W/m2
|
|
|
|
||||
|
Refresh Rate
|
|
≥1920Hz
|
|
|
|
||||
|
Brightness
|
|
6000-7500nits
|
|
|
|
||||
|
Ingress Protection
|
|
IP67 Double side
|
|
|
|
||||
|
Operating Temperature
|
|
-40°C~85°C
|
|
|
|
||||
|
Operating Humidity
|
|
10%~90%RH
|
|
|
|
||||
|
Input Voltage
|
|
AC220V/110V±15% 47-64Hz
|
|
|
|
||||
|
NTBF
|
|
≥50000 hours
|
|
|
|
||||
|
Life Time
|
|
100000 hours
|
|
|
|
||||

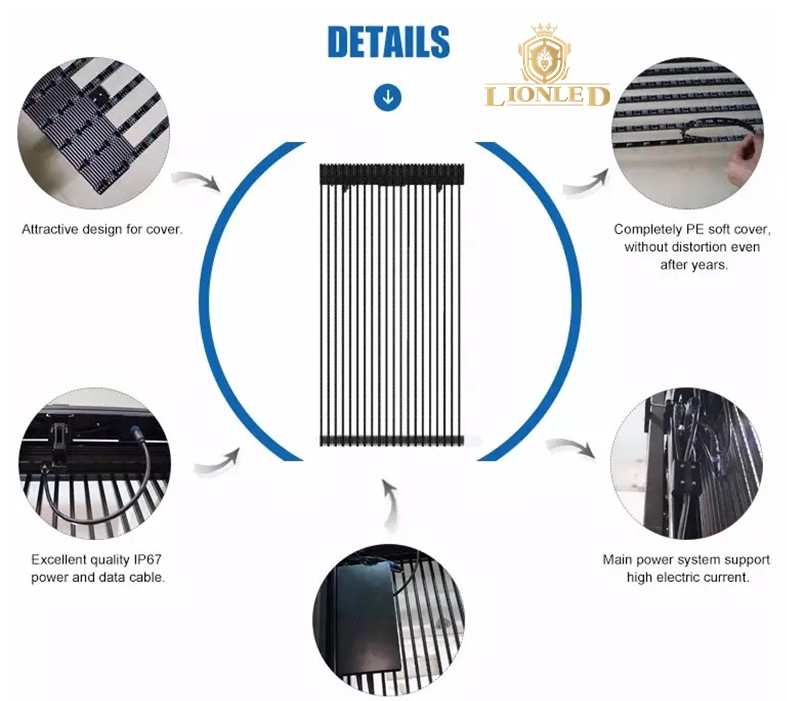

Details Images

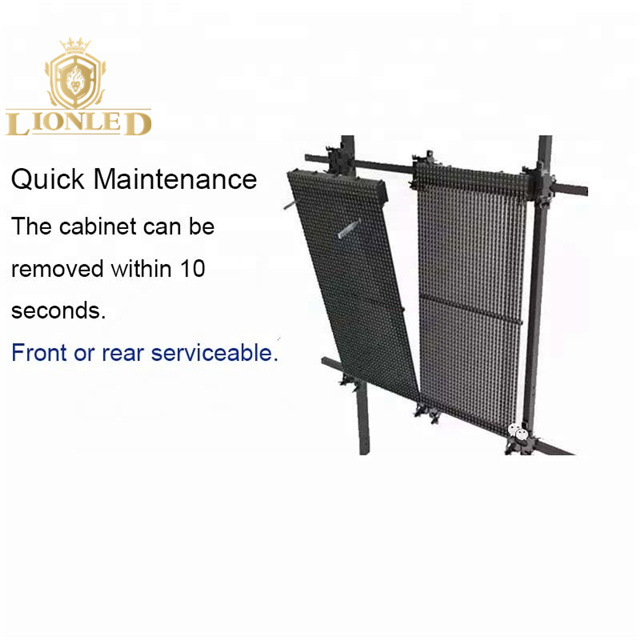

Installation Instructions
Our Case
M15 Mesh Outdoor Led Display For PAVILION Building In China
Pixel Pitch: 15.6mm
User:
PAVILION Building
Cabinet: Aluminium Die casting Cabinet
Led Lamp:Nationstar Gold Wire Lamp 3535
IC Driver:MBI High Refresh Rate IC
Brightness:7500nits
Life Span:>10Years
Warranty:5years
Mesh Outdoor Led Display For
Jewelry Shop
In China
Pixel Pitch: 15.6mm
User: Jewelry Shop
Cabinet: Aluminium Die casting Cabinet
Led Lamp:Nationstar Gold Wire Lamp 2727
IC Driver:MBI High Refresh Rate IC
Brightness:7500nits
Life Span:>10Years
Warranty:5years
User: Jewelry Shop
Cabinet: Aluminium Die casting Cabinet
Led Lamp:Nationstar Gold Wire Lamp 2727
IC Driver:MBI High Refresh Rate IC
Brightness:7500nits
Life Span:>10Years
Warranty:5years
M31 Mesh Led Display For Customer`s Building In Russia
Project Size: 20m x 8m
Pixel Pitch: 31mm
User: Customer`s Building In Russia
Cabinet: Aluminium Die casting Cabinet
Led Lamp:DIP346 Epistar Chip
IC Driver:MBI High Refresh Rate IC
Brightness:7500nits
Life Span:>10Years
Warranty:5years
User: Customer`s Building In Russia
Cabinet: Aluminium Die casting Cabinet
Led Lamp:DIP346 Epistar Chip
IC Driver:MBI High Refresh Rate IC
Brightness:7500nits
Life Span:>10Years
Warranty:5years
Our Service
(1)Reply your inquiry in 24 working hours.
(2)Experienced staffs answer all your query in fluent English.
(3)Customized design is available,OEM & ODM are welcomed.
(4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
(5)Special discount and protection of sales area provided to our distributor.
(6)Warmly welcome your visit in our company if available.
(7)Warranty: 24 month quality guarantee, after 24 months, only charge for the cost of the repair. During the 24 months warranty time, we will be responsible for any damage happened to the display because of the quality fault, not wrong operation. As soon as we confirm that the damage is not caused by manual operation fault, we will deliver the good parts to you by air within 3 days for
replacement. After 24 months, we can also offer you the parts for replacement at our bottom price.
(8)Lionled assists with training and technical support for the customer in the factory, if required. You can also send your
engineer to our factory at any time for LED display training. This service is free of charge.
(9) We can send our engineer on site to guide the installation for you. The relevant costs should be paid by your esteemed
company, such as visa, hotel, food, plane ticket back and forth, and a fee of USD 100/day for each engineer.
(10) We cooperate with famous logistics company agents (DHL, FedEx, UPS, TNT, EMS,etc.) .We can get great discount from them and offer you lowest shipment cost. The tracking number and B/L will be sent to you in time after delivery.
(11) Payment terms, we recommand Alibaba Trade Assurance. With Trade Assurance, your trading problems will be solved. If your products are not shipped on time or the product quality does not meet the standards set in your contract, Alibaba.com will refund the covered amount of your payment.Trade Assurance is a free service provided by Alibaba.com and Lionled
(2)Experienced staffs answer all your query in fluent English.
(3)Customized design is available,OEM & ODM are welcomed.
(4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
(5)Special discount and protection of sales area provided to our distributor.
(6)Warmly welcome your visit in our company if available.
(7)Warranty: 24 month quality guarantee, after 24 months, only charge for the cost of the repair. During the 24 months warranty time, we will be responsible for any damage happened to the display because of the quality fault, not wrong operation. As soon as we confirm that the damage is not caused by manual operation fault, we will deliver the good parts to you by air within 3 days for
replacement. After 24 months, we can also offer you the parts for replacement at our bottom price.
(8)Lionled assists with training and technical support for the customer in the factory, if required. You can also send your
engineer to our factory at any time for LED display training. This service is free of charge.
(9) We can send our engineer on site to guide the installation for you. The relevant costs should be paid by your esteemed
company, such as visa, hotel, food, plane ticket back and forth, and a fee of USD 100/day for each engineer.
(10) We cooperate with famous logistics company agents (DHL, FedEx, UPS, TNT, EMS,etc.) .We can get great discount from them and offer you lowest shipment cost. The tracking number and B/L will be sent to you in time after delivery.
(11) Payment terms, we recommand Alibaba Trade Assurance. With Trade Assurance, your trading problems will be solved. If your products are not shipped on time or the product quality does not meet the standards set in your contract, Alibaba.com will refund the covered amount of your payment.Trade Assurance is a free service provided by Alibaba.com and Lionled
