Quick Details
-
Warranty(Year):
-
3-Year
-
Input Voltage(V):
-
100-265V
-
Lamp Luminous Flux(lm):
-
3300
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-PL-P6060B
-
Beam Angel::
-
120
-
Size::
-
600*600*9MM LED Panel Light
-
Color temperature:
-
3000k/4000k/5000k/6000k down light led ceiling
-
Working Humidity::
-
10%-90% recessed led ceiling lights 600x600
-
LED type::
-
4014SMD ceiling panel lamp
-
LED power:
-
30w/36w/48w/60w
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Application:
-
Hospital
-
Lamp Body Material:
-
Aluminum+PMMA Shells
-
Warranty(Year):
-
3-Year
-
Input Voltage(V):
-
100-265V
-
Lamp Luminous Flux(lm):
-
3300
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-PL-P6060B
-
Beam Angel::
-
120
-
Size::
-
600*600*9MM LED Panel Light
-
Color temperature:
-
3000k/4000k/5000k/6000k down light led ceiling
-
Working Humidity::
-
10%-90% recessed led ceiling lights 600x600
-
LED type::
-
4014SMD ceiling panel lamp
-
LED power:
-
30w/36w/48w/60w
Super bright 36w 40w LED ceiling panel back lit led 600x600 light
Item No.:RB-PL-6060B
Input Voltage: AC 85~265V/ 50-60HZ
LED Power:36W
LED Quantity: 180PCS SMD4014
Power Factor:>0.92;Power Efficiency:>0.88
LED Luminous Flux Warm White,Nature White, Pure White
LED Panel light Viewing Angle: 120 degree
Color Temperature Warm White 3000K~3500K
Nature White 4000K~4500K,Pure White 5500K~6500K
Luminous Flux:3300LM(6000K)
Color Rendering Index : Ra≥80
Working Temperature: –40oC~50oC
IP Grade: IP44
Body Size: 600*600*9mm
Material: Aluminium /SPCC/PMMA
Working Life-span: 50000 H
Certificate CE & RoHS &FCC
1.50% energy saving same watts compare with CFL traditional lights .
2.No glare , no UV , no pollution . Friendly to environment , healthful for man
3.low luminous decay . 3% luminous decay After 2000hrs
4. Wide range voltage 85-265VAC
LED Panel Light Features:
1. All sides are lined with LED's to grant optimal illumination.
2. Special different view angles, mixing lighting design. Great light evenness, no dark zones.
3. High light output at a reduced energy consumption of up to 50%.
4. Over 40, 000 hours life expectancy.
5. Wide angle of deflection with even light distribution.
6. No start-up t ime, no flickering, no humming.
7. High efficiency constant current driver with built in overheat protection that remains stable
at a wide range of input voltages.
8. Independent LED circuit prevents complete blackout in case an LED fails.
9. Environmentally friendly, mercury and lead free.
10. Causes no electromagnetic interference.
11. Easy installation.
12. With CE&RoHS and 5years warranty.

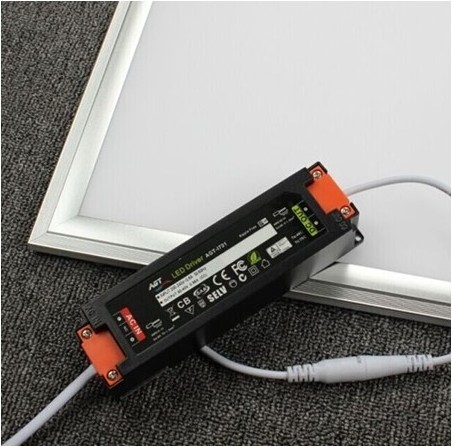

Flat Led Panel Lighting Detais Picture:
Power supply brand:
1.Please note the power wiring of positive and negative when installation power wiring (positive with word)
2.Connect into the panel lamp terminals power wire needs to tighten with the screw
3.To avoid danger, pls cut off power supply before connecting wiring.4.Lock the screw, pls not use
Embedded installation of led panel light:
1.Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling , pls do not force squeezing or through the ceiling
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds.
