DIGITEN Flow Quantitative Controller + G1

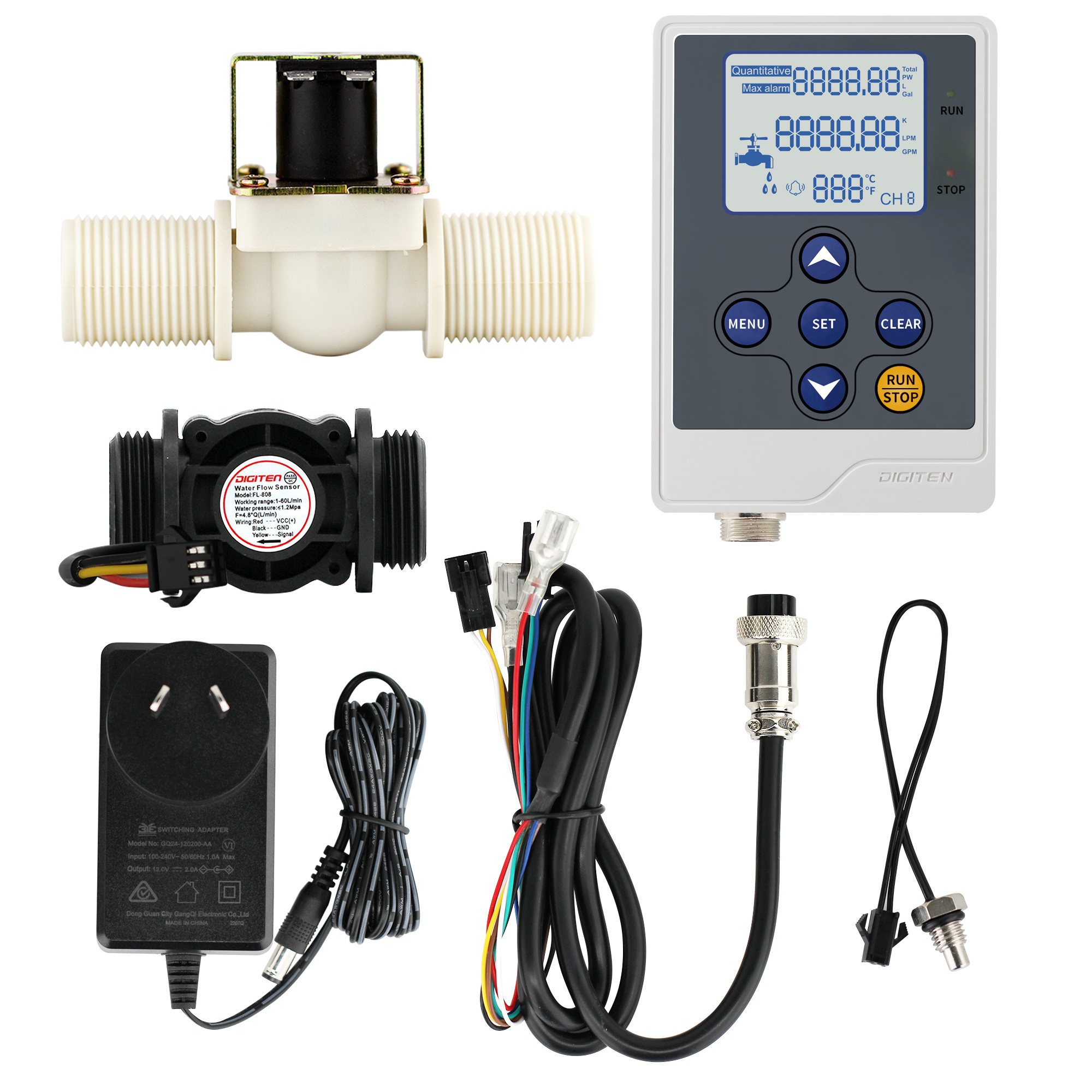

DIGITEN Flow Quantitative Controller + G1" Water Flow Meter 1-60L/min + G1" Solenoid Valve +DC 12V Power Adapter

FOB Reference Price: Get Latest Price

≥5 Pieces

US $48.99

≥50 Pieces

US $41.99

≥100 Pieces

US $38.99

≥500 Pieces

US $34.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: DIGITEN

Model Number:: DFC15+G1+G1

Accuracy:: ±1%

Quick Details

Type:: Variable Area Water Flowmeters, Quantitative Controller Couter

Warranty:: 1 year

Place of Origin:: Guangdong, China

Brand Name:: DIGITEN

Model Number:: DFC15+G1+G1

Accuracy:: ±1%

Product Description

FEATURES

Quantitative control
Controller will turn off the solenoid value automatically when flow reach to the setting value you desire.

Monitor flow rate
Display the REAL-TIME volume of liquid which passes per minute.

Work with all hall effect flow sensor
It can work various different flow sensor through adjust the K value.

Volume unit
Display Liter or Gallon.

Water meter
DFC15 can be used to measure the volume of water.

Adjustable accuracy
Calibrate the accuracy through adjust the K parameter.

Temperature monitor
Come with temperature sensor, it can measure liquid temperature.

Easy-to-Read Front-Panel Liquid Crystal Display
Displays the flow total volume, flow rated and sensed temperature clearly; custom icons on the display indicate the controller working status at a glance.

Packing & Delivery

Large LCD Screen & Monitor Flow Rate

Support reading with Liter or Gallon unit, LPM/GPM switchable. DFC15 will display the flow rate(the REAL-TIME volume of liquid which passes per minute), the flow total volume and sensed temperature clearly.

Q uantitative control

Controller will turn off the solenoid value automatically when flow reach to the setting value you desire.

W ork with all hall effect flow sensor

It can work various different flow sensor through adjust the K value

TECHNICAL SPECIFICATIONS
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC, Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 2A
Temperature Sensor: 0-100℃/32-212℉, NTC3950, Accuracy: ±1℃/±1℉ thread: M8
Max Total Volume : 999999 G/L
Quantitative Range: 0-9999 G/L
Flow Rate Range: 0-9999.99/LPM(GPM)
Cable Length : 1m
Dimensions: 88mmx126mmx30mm
Weight: 200g
Operation Environment: Temperature: 0-50℃/32-122℉ Relative Humidity: <85%

For G1" Flow Sensor:
Flow range:1-60L/min
Allow compression:Water pressure 1.75 Mpa below
Sensor:Hall effect
Cable length:15cm
Frequency: F=4.8 * Q (L / Min)

For G1" Solenoid Valve:
G1",thread male outer diameter: 32.5mm
Working pressure:0.02-0.8Mpa
Working Voltage:DC12V

How to work:
1. Set K value, quantitative value, max alarm value, properly install the flow sensor and solenoid valve.
2. Press the RUN/STOP button, the controller works, total will continuously display the current flow volume, and current flow
rate, and the faucet will start animated display.
3. When the flow reaches the quantitative setting value, the controller turn off the solenoid valve automatically, and the total
value stop, faucet animation will be stopped dropping, flow rate back to zero.
4. Pressthe RUN/STOP buton again and the controller will repeat the same job.

Note:
1, This controller work with the solenoid valve up to 5A, but this kit come with 2A power adapter. If drive a large solenoid
valve, please use suitable power adapter.
2, Ensure the solenoid valve and flow sensor direction is the same with water flow.
3, Avoid the water into the controller.
