Quick Details
-
Worktable Length:
-
5800mm
-
Worktable Width:
-
2200mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINNER
-
Model Number:
-
M-30
-
Warranty:
-
12 Months
-
Product name:
-
autorobot richtbank
-
Using range:
-
Car Chassis Collision Work
-
Standard tower quantity:
-
2 towers
-
Tower working range:
-
360°
-
Pneumatic pressure:
-
0.8Mpa
-
Optional tower configurations:
-
2,3 or 4 towers
-
Toolings carts:
-
Included
-
Kinds of clamps:
-
Standard clamps 4 pcs
-
Durability:
-
Perfect Car Collison Repair System
-
Color:
-
Customers' Request
Quick Details
-
Weight:
-
2800Kg
-
Bench Height:
-
300mm-1050mm
-
Max. Lifting Capacity:
-
3500 KG
-
Worktable Length:
-
5800mm
-
Worktable Width:
-
2200mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINNER
-
Model Number:
-
M-30
-
Warranty:
-
12 Months
-
Product name:
-
autorobot richtbank
-
Using range:
-
Car Chassis Collision Work
-
Standard tower quantity:
-
2 towers
-
Tower working range:
-
360°
-
Pneumatic pressure:
-
0.8Mpa
-
Optional tower configurations:
-
2,3 or 4 towers
-
Toolings carts:
-
Included
-
Kinds of clamps:
-
Standard clamps 4 pcs
-
Durability:
-
Perfect Car Collison Repair System
-
Color:
-
Customers' Request

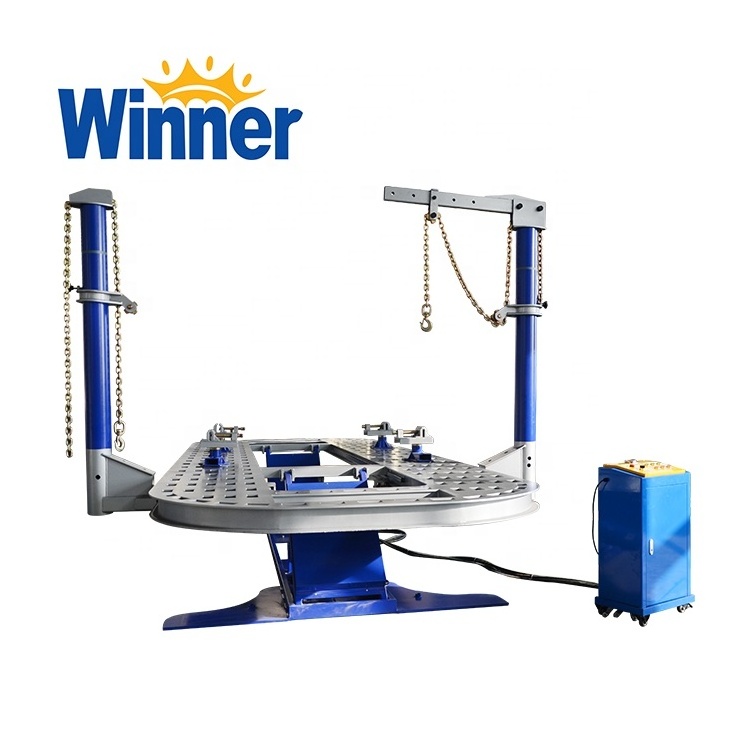

M-30 WINNER China Supplier Autorobot Type Richtbank Auto Frame Machine Chassis Straightening Machine
|
Model |
M-30 |
|
Type |
Double Tilt |
| Deck Structure | Box structure with complete steel plate 10mm+10mm |
| A: Deck Length | 5800mm/19 |
| B: Deck Width | 2200mm/7'2.6'' |
| Deck Working Height | 30mm/11.8''-1050mm/3'5.3' |
| C:Maximum Length | 8075mm/26'5.9'' |
| D:Maximum Width | 2675mm/8'9.3'' |
| E:Width of Tradeway | 625mm/2'0.6'' |
| F:Width between Tradeways | 950mm/3'0.4'' |
| Standard Tower Quantity | 2 |
| Weight | 2800kg/3307lbs |
| Life Capacity | 3500kg/6614 lbs |
| Hydraulic Tower per Tower | 10ton |
| Tower Working Range | 360° |
| Hydraulic Pressure | 70Mpa(10000psi) |
| Pneumatic Pressure | 0.8Mpa |
| Optional Towers Configurations | 2,3 or 4 towers |
| Optional Deck Length | 6100mm/20' or 6700mm/22' |
| Optional Lifting Capacity | 4500kg/10000 lbs, 5500kg/12000 lbs or 6000kg/13500 lbs |
Description:
1. 86’’ /2200mm wide deck is perfect for light trucks, SUV or Pickups, etc full-frame vehicles.
2. Over 200 tie-down opening for virtually unlimited anchoring.
3. True 3600 pulling capability.
4. 4500kg/10000 lbs, 5500kg/12000 lbs/ or 6000kg/13500 lbs lift capacity for more options
5. Heavy duty to wers for strong pulling capacity.
