Quick Details
-
Productivity:
-
8M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
Rujie
-
Weight:
-
600 kg
-
Dimension(L*W*H):
-
1800*680*1250
-
Product name:
-
Concrete pump
-
Engine type:
-
Electric 380V/220V
-
Power:
-
15KW
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
30M
-
Max. horizontal conveying distance:
-
50M
-
Productivity:
-
8M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
Rujie
-
Weight:
-
600 kg
-
Dimension(L*W*H):
-
1800*680*1250
-
Product name:
-
Concrete pump
-
Engine type:
-
Electric 380V/220V
-
Power:
-
15KW

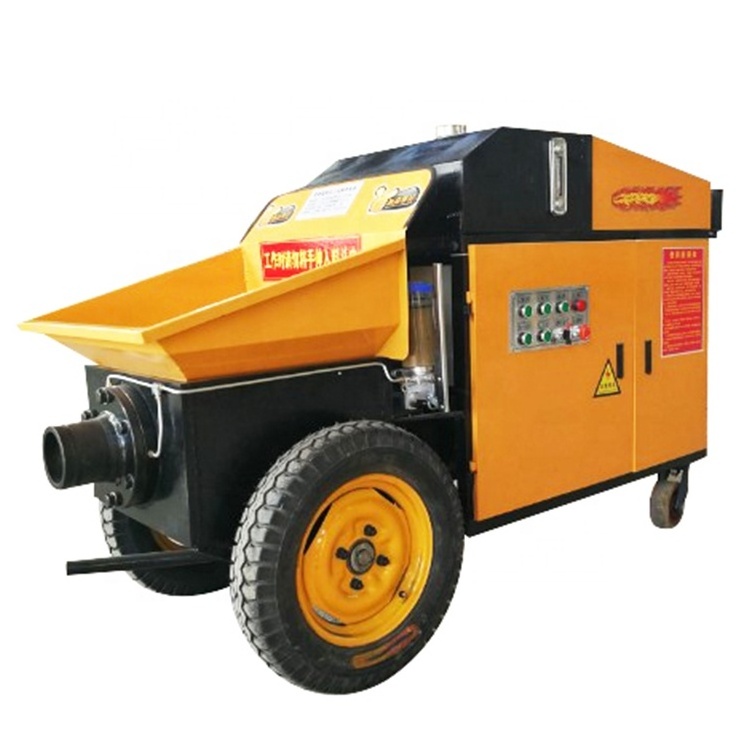

Construction small electric concrete pump diesel engine concrete pump
Product features:
1. Depending on hydraulic principle and remote control, it can transport mortar, mortar, fine stone concrete, grouting material of secondary structure column to the required place.
2, fully mechanized operation, is artificial pouring concrete on the hundreds of times, shorten the construction period.
3. Equipped with remote-controlled switch machine, making operation more convenient and more efficient.
4, the pump pouring concrete continuity, transport efficiency, saving labor costs.
5, the pump volume is small, construction is convenient, easy to operate, can be directly poured floor, greatly reduce the intensity of labor.
6. This pump has high configuration, small secondary constructional column pump, light weight, secondary constructional column pump, easy to move, easy to maintain, and low maintenance cost in the later stage.
Parameter:
|
Model |
RE-15 |
RD-25 |
|
Conveying capacity |
5-8m ³ /h |
5-10 m ³ /h |
|
Motor power |
Electric 15kw |
Diesel engine 25HP |
|
Conveying distance |
30M |
30M |
|
Vertical distance |
20M |
20M |
|
A ggregate diameter |
<35MM |
<35MM |
|
Pipe diameter |
100mm |
100mm |
|
Mortar stone ratio |
1:2:2 |
1:2:2 |
|
Weight |
700KG |
800KG |
|
Dimension |
2000 * 800 * 1500mm |
2210 * 1410 * 1060mm |
