Quick Details
-
Brand Name:
-
DFX
-
Model Number:
-
DFXSSB0081
-
Product name:
-
GB Standard Steel Structure Framework Heavy Steel Structure Buildings
-
using life:
-
more than 50 years
-
Steel frame:
-
Q235 Q355 H,C,Z section steel
-
Steel surface:
-
Galvanized or painted
-
connection:
-
bolt connection
-
installation:
-
installation drawing or guide on site
-
Wall and roof:
-
Sandwich panel or steel plate
-
Door:
-
Roller door or sliding door
-
Certificate:
-
ISO9001:2008/ISO14001:2004 CE COC
-
earthquake resistance:
-
grade 10
Quick Details
-
Grade:
-
Q235 Q355B
-
Tolerance:
-
±1%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DFX
-
Model Number:
-
DFXSSB0081
-
Product name:
-
GB Standard Steel Structure Framework Heavy Steel Structure Buildings
-
using life:
-
more than 50 years
-
Steel frame:
-
Q235 Q355 H,C,Z section steel
-
Steel surface:
-
Galvanized or painted
-
connection:
-
bolt connection
-
installation:
-
installation drawing or guide on site
-
Wall and roof:
-
Sandwich panel or steel plate
-
Door:
-
Roller door or sliding door
-
Certificate:
-
ISO9001:2008/ISO14001:2004 CE COC
-
earthquake resistance:
-
grade 10
GB Standard Steel Structure Framework Heavy Steel Structure Buildings
2. Specification
|
Items |
Specification | |

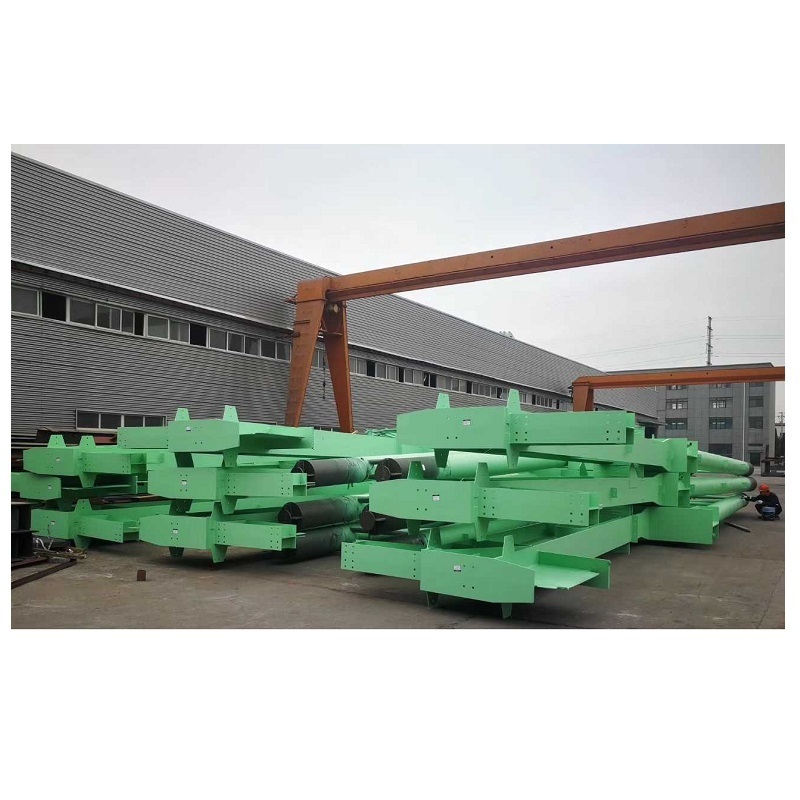

| Main Steel Frame | Column | Q235, Q355 Welded H Section Steel |
| Beam | Q235, Q355 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel |
EPS Sandwich Panel /Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 17 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | more than 50 years | |
| Temperature | Suitable temperature.-50°C~+50°C | |
| Certification | CE, SGS,ISO9001:2008,ISO14001:2004 COC PVOC | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options |
Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
|
3. Characteristics
1. Different types and sizes according to customer's needs, large or small, w ide span: single span or multiple spans, the max span is 36m without middle column.
2. Low cost and maintenance : unit price range from USD19.99/m2 to USD99.99/m2 according to customers request.
3. Fast construction and easy installation : time saving and labor saving, all the items are factory- made,pre-cut,pre-welded, pre-drilled,pre-painted.
4. Reduced construction waste, l ong using life span: more than 50 years.
5. Nice appearance.
6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof , and energy conserving.
Building warranty 50 Year structural, 25 Year on colored galvanized sheet.(under normal weather conditions)
- Welded or Solid H-Beam Construction
- Beam and Column Q345 or Equal,Primer & Finished with Anti-rust Grey Paint in Twice
- C or Z Purline Q235
- Wall and Roof Insulation Panel or Corrugated Sheet
- All Parts are Pre-cut, Drilled, Stamped & Labeled
- Parts are Numbered for Easy Assembly
- Pre-Welded Factory Clips
- Choice of Color on Walls & Trim
- Base Trim& Primed Frames
- Self Drilling and Self Tapping Screws
- Roof Sealant
- Windows and Doors
- Construction Drawings
- Permit Drawings
- Engineered Drawings
- Anchor Bolt Plans
- Full Set of Erection Drawings
- Easy to Read Erection Manual
- Engineer on-site guide if need
We carry insulation and accessories for all our buildings.
