- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
50HZ/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BOBIG
-
Model Number:
-
BC69
-
Speed:
-
1500/1800rpm
-
Product Name:
-
50kw diesel generator prices
-
Engine:
-
cummins,deutz,lovol,YTO,FAW,weichai,yangdong,yuchai......
-
Alternator:
-
Leroy Somer,stamford,TFW
-
Certificate:
-
CE,ISO,GB/T2820,IEC34,EPA Tier4 standard
-
Controller:
-
Smartgen,Deepsea for 50kw diesel generator prices
-
Control panel:
-
Deepsea / ComAp / Harsen / Smartgen
-
Options:
-
ATS,color,voltage,phase,tank capacity,frequency
-
Warranty:
-
12 Months/1000 Hours
-
Delivery time:
-
10-15working days for 50kw diesel generator prices
-
Parts:
-
offer,not limited in warranty time
Quick Details
-
Rated Power:
-
50kw
-
Rated Voltage:
-
110,220,230,240,380,400,415V
-
Rated Current:
-
50kw diesel generator prices
-
Frequency:
-
50HZ/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BOBIG
-
Model Number:
-
BC69
-
Speed:
-
1500/1800rpm
-
Product Name:
-
50kw diesel generator prices
-
Engine:
-
cummins,deutz,lovol,YTO,FAW,weichai,yangdong,yuchai......
-
Alternator:
-
Leroy Somer,stamford,TFW
-
Certificate:
-
CE,ISO,GB/T2820,IEC34,EPA Tier4 standard
-
Controller:
-
Smartgen,Deepsea for 50kw diesel generator prices
-
Control panel:
-
Deepsea / ComAp / Harsen / Smartgen
-
Options:
-
ATS,color,voltage,phase,tank capacity,frequency
-
Warranty:
-
12 Months/1000 Hours
-
Delivery time:
-
10-15working days for 50kw diesel generator prices
-
Parts:
-
offer,not limited in warranty time

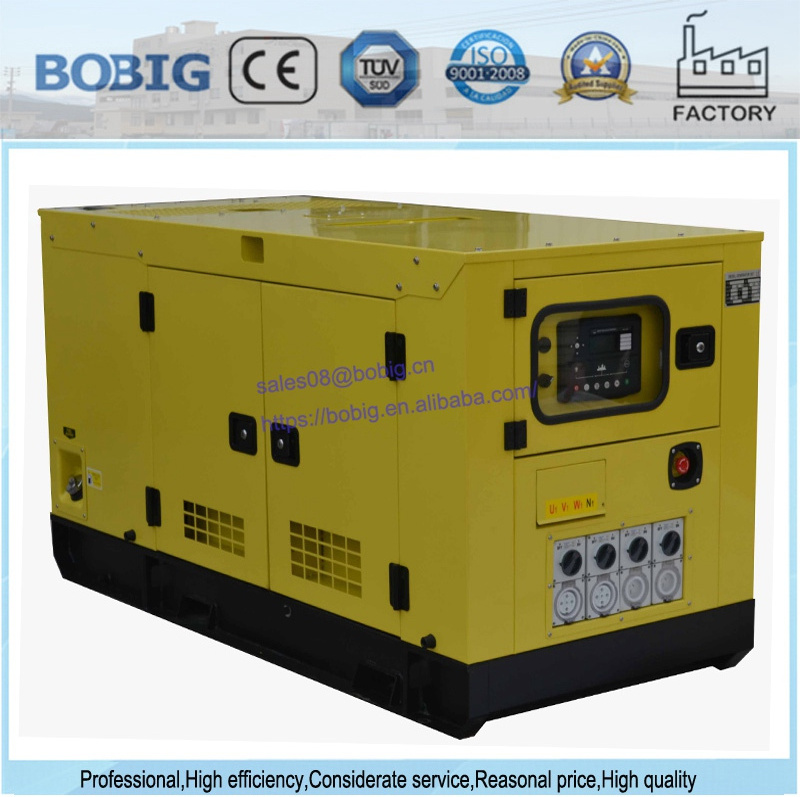

High quality 63kva 50kw cummin diesel generator prices with cummins engine 4BTA3.9-G2
Products Features:
1.We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,
High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25
Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.
Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need, about more details information,more models and new price list,please contact us.
| BOBIG POWER CUMMINS DIESEL GENERATOR | ||||||||
| MODEL | BC69 | silent type | Open type | +ATS | ||||
| Prime power (KW/KVA) | 50KW/63KVA | |||||||
| Standby power (KW/KVA) | 55KW/69KVA | Freight: | ||||||
| The order is bigger,the price is lower | ||||||||
| General description | ||||||||
| 1. Engine: 4BTA3.9-G2 Cummins | ||||||||
| 2. Alternator:BW-224E STAMFORD TYPE | ||||||||
| 3. Controller: DEEPSEA/Smartgen | ||||||||
| 4. Electronic speed control | ||||||||
| 5.:Frequency: 50/60HZ | ||||||||
| 6. Voltage: 220,230,240,380,400,415v | ||||||||
| 7. Rated speed: 1500rpm/1800rpm | ||||||||
| 8. 2*12V batteries, maintennance free type. | ||||||||
| 9. 24V charge dynamo. | ||||||||
| 10. Tank:Equipped with 10-12hours operation base tank | ||||||||
| 11. DIM: silent :2400*970*1200mm ,open: 1850*730*1350mm | ||||||||
| 12. Nobise level: 69-72DB@7M ,if need lower noise level,please contact us. | ||||||||
| 13. Package:Plywood case | ||||||||
| 14. Radiator 50℃ max, fans are driven by belt with safety guard | ||||||||
| 15. Delivery time:10~15 working days after receiving customers' deposit | ||||||||
| 16. Equipped with industrial silencer and flexible exhaust hose. | ||||||||
| 17. Payment terms:TT,100%irrevocable L/C,tradeassurance,paypal,wester union | ||||||||
| 18. Manufacturing Standard: | ||||||||
| GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34. | ||||||||
| 19. Warranty:One year after installation/1500 running hours | ||||||||
| 20. Pakcing list:User manual of Engine, alternator, controller. | ||||||||
| 21. Weight:980kg | ||||||||
| 22. Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need | ||||||||
| PHOTO FOR REFERNCE ONLY | ||||||||
| Engine specifications: | ||||||||
| Engine model | 4BTA3.9-G2 | |||||||
| Number of cylinders | 4 | |||||||
| Cylinder arrangement | Vertical in line | |||||||
| Cycle | 4 | |||||||
| Aspiration | Turbo Water Cooling | |||||||
| Bore×Stroke(mm×mm) | 102×120 | |||||||
| Displacement (Liter) | 3.9 | |||||||
| Compression Ratio | 16.5:1 | |||||||
| Prime power/speed (kW/RPM) | 50/1500RPM | |||||||
| Standby power/speed (kW/RPM) | 55/1500RPM | |||||||
| Speed governor | electronic | |||||||
| Cooling system | Positive Water Cooling Cycle | |||||||
| Coolant capacity (engine only) (L) | 8 | |||||||
| Steady speed droop (%) | 1% | |||||||
| Total lubrication system capacity (L) | 11 | |||||||
| Oil consumption (g/kw.h) | 0.15% of fuel consumption | |||||||
| Fuel consumption at 100% load (g/kw.h) | 215 | |||||||
| Fuel consumption at 75% load (g/kw.h) | ||||||||
| Fuel consumption at 50% load (g/kw.h) | ||||||||
| Starter motor | 24V | |||||||
| Dyanmo | 24V | |||||||
| ALTERNATOR SPECIFICATION: | ||||||||
| Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS1359 | ||||||||
| Alternator model | BW-224E | |||||||
| Exciter type | Single bearing, Brushless, Self-excited | |||||||
| Rated output prime power(KVA/KW) | 63kW | |||||||
| Rated speed | 1500 RPM | |||||||
| Rated frequency | 50 Hz | |||||||
| Phase | 3 | |||||||
| Rated voltage | 380 V | |||||||
| Current(A) | 77 | |||||||
| Power factor | 0.8 | |||||||
| Voltage adjust range | ≥5% | |||||||
| Voltage regulation NL-FL | ≤±1% | |||||||
| Insulation grade | H | |||||||
| Protection grade | IP23 | |||||||
| Control system | ||||||||
| Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25 | ||||||||
| Protection | Parameter | PHOTO | ||||||
| Low oil pressure | Volt | oil pressure | ||||||
| High water temp | current | oil temp | ||||||
| Over speed | power | power factor | ||||||
| Over crank | speed | running time | ||||||
| Over load | frequency | water temp | ||||||
| Over/low volt | battery voltage | |||||||
| Over/low frequency | ||||||||
| battery charge failure | ||||||||
Powered by Cummins , Powered by weifangricardo , Powered by yangdong , Powered by YTO ,
Powered by weichai , Powered by Yuchai , Powered by FAW , Powered by quanchai , Powered by Deutz , Powered by Lovol , Powered by Shangchai , Powered by Kubota , Powered by Yanma , Powered by Perkins
Plywood case , 10~15 working days after receiving customers
