Quick Details
-
Applications:
-
CCTV Surveillance Security System
-
Transmission Distance:
-
MAX 300m for TVI/CVI/AHD
-
Product Description:
-
HD CCTV Passive UTP BNC CAT5 Power Video Data/Audio Balun
-
Ports Detail:
-
BNC to UTP cable
-
Power:
-
No power required
-
Certificates:
-
CE, RoHS, FCC
-
Working Temperature:
-
-10~50°C
-
Warranty:
-
3 years
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Video Type:
-
HD-CVI/TVI/AHD, CVBS
-
Supported Resolution:
-
720P, 1080P, 3MP, 4MP, 5MP TVI/CVI/AHD
-
Applications:
-
CCTV Surveillance Security System
-
Transmission Distance:
-
MAX 300m for TVI/CVI/AHD
-
Product Description:
-
HD CCTV Passive UTP BNC CAT5 Power Video Data/Audio Balun
-
Ports Detail:
-
BNC to UTP cable
-
Power:
-
No power required
-
Certificates:
-
CE, RoHS, FCC
-
Working Temperature:
-
-10~50°C
-
Warranty:
-
3 years

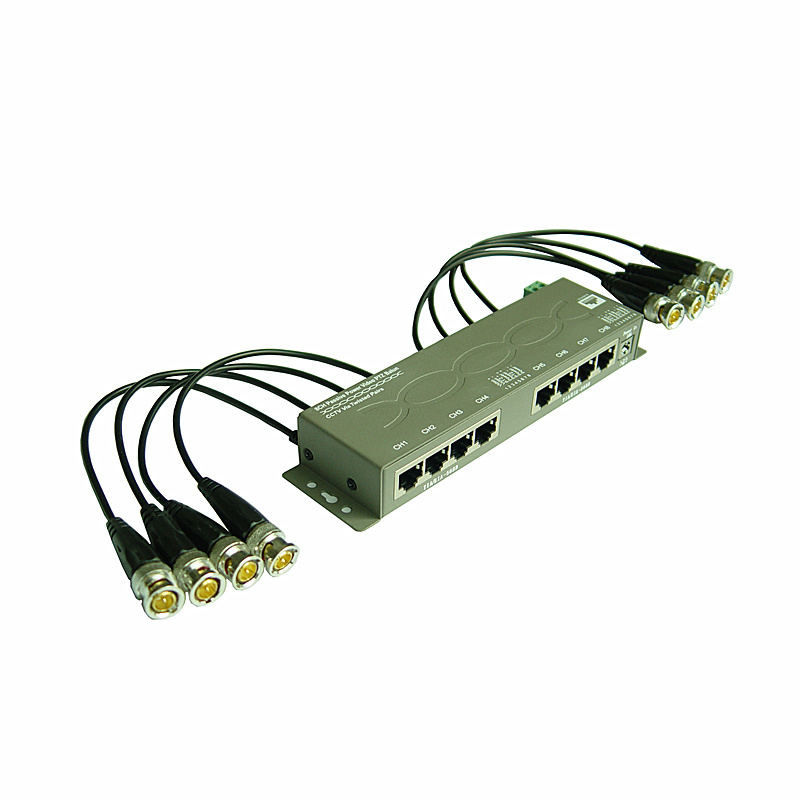

8 Channel HD-CVI/TVI/AHD CCTV UTP Passive Power Video Data Balun (PVD308H)
8 Channel AHD-CVI/TVI/AHD CCTV UTP Passive Power Videob Data Balun (PVD308H)
| Features | |
| 1. | Compact size and easy installation |
| 2. | Built-in transient suppression protection |
| 3. | Built-In Surge Protector |
| 4. | 60 dB cross talk and noise immunity |
| 5. | Compatible with all HD-CVI, HD-TVI, HD-AHD c ameras and analog cameras |
|
Technical Specifications |
||||||||||
| Model |
VB213&A PV22H |
PV23H
PV26H |
PVD22H |
PVD23H PVD26H |
VB213&B PVA22H |
PVA23H PVA26H |
PVD25H | PVD25 | PVC26H | |
| UTP Connection | RJ45 | |||||||||
|
Power Video Data |
DC BNC |
DC BNC Wire |
DC BNC RCA |
DC
BNC Screw Terminal Blocks |
DC BNC |
|||||
| Transmission |
Power Video |
Power Video Data or Audio |
Power Video Audio |
Power Video Data or Audio |
Power Video |
|||||
| Innovative connectable design | × | √ | × | √ | × | √ | × | √ | √ | |
| Power | Input | 12VDC |
20~36 VDC |
|||||||
| Output | 12VDC | 12VDC | ||||||||
| Video Format | HD-CVI/TVI/AHD, CVBS | |||||||||
| Frequency Response | DC to 60MHz | |||||||||
| Attenuation | 0.5dB typ | |||||||||
| CMRR | 60 dB | |||||||||
| Surge Protection | 4KV | |||||||||
| ESD | 8KV | |||||||||
| Impedance | Coax, Male BNC | 75 ohms | ||||||||
| Terminal Block | 100 ohms | |||||||||
| Working Environment | Working Temperature | -10℃ to +50℃ | ||||||||
| Storage Temperature | -30℃ to +70℃ | |||||||||
| Humidity | 0 to 95% | |||||||||
|
Transmission
Distance |
720P CVI/TVI/AHD Cameras | Up to 300m | ||||||||
| 1080P CVI/TVI/AHD Cameras | Up to 200m | |||||||||
| 3MP, 4MP, 5MP CVI/TVI/AHD Cameras | Up to 170m | |||||||||
| Power |
12VDC---about 100m 36VDC---about 300m |
|||||||||
| Wire Type | CAT5, CAT5E, CAT6 | |||||||||
| Power | No power required | |||||||||
| Case | ABS Plastic | |||||||||
