Quick Details
-
Brand Name:
-
PNG Solar
-
Model Number:
-
PNG182M-229
-
Certificate:
-
TUV IEC CE ISO
-
Product name:
-
Solar Cell
-
Application:
-
Solar panel
-
Material:
-
Monocrystalline Silicon Cell
-
Color:
-
blue
-
Busbar:
-
9bb
-
Situation:
-
New
-
Solar cell:
-
Mono 166*166mm
Quick Details
-
Type:
-
PERC
-
Cell Efficiency:
-
22.9%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
PNG Solar
-
Model Number:
-
PNG182M-229
-
Certificate:
-
TUV IEC CE ISO
-
Product name:
-
Solar Cell
-
Application:
-
Solar panel
-
Material:
-
Monocrystalline Silicon Cell
-
Color:
-
blue
-
Busbar:
-
9bb
-
Situation:
-
New
-
Solar cell:
-
Mono 166*166mm
Product Description
Characteristic:

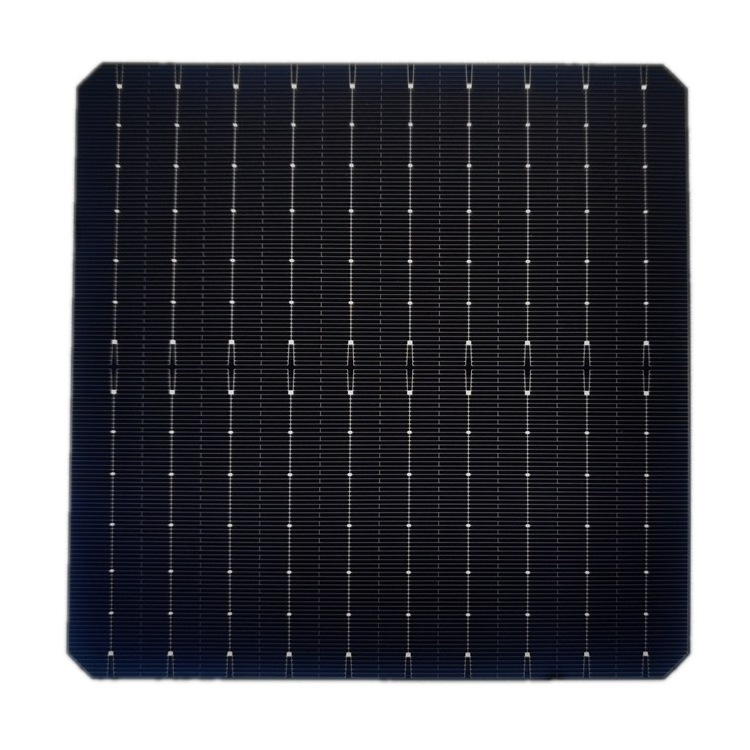

Size: 182mm × 182mm ± 0.25mm (diameter 247± 0.25mm)
Thickness: 175± 17.5μm
Front(-):Silicon dioxide + blue silicon nitride composite anti-reflection film (PID Free); bus bar width is 0.08±0.03mm, and the bus bar has two forks on the head; the size of 182 at the junction of bus bar and the fingers is 0.6mm × 1mm.
Back (+):AlOx and SiNx dual layer and Rear Contact (Al); the rear electrode is composed of 10 roots rear compound bus bar and 152 roots rear Al fingers. 6 sections, 1.4±0.30 mm silver anode, no laser pattern under the rear electrode. Silver electrode has roundhead, and silver electrode is 1.2±0. 1mm hollow at both ends.
Thickness: 175± 17.5μm
Front(-):Silicon dioxide + blue silicon nitride composite anti-reflection film (PID Free); bus bar width is 0.08±0.03mm, and the bus bar has two forks on the head; the size of 182 at the junction of bus bar and the fingers is 0.6mm × 1mm.
Back (+):AlOx and SiNx dual layer and Rear Contact (Al); the rear electrode is composed of 10 roots rear compound bus bar and 152 roots rear Al fingers. 6 sections, 1.4±0.30 mm silver anode, no laser pattern under the rear electrode. Silver electrode has roundhead, and silver electrode is 1.2±0. 1mm hollow at both ends.
|
FRONT ELECTRICAL PERFORMANCE PARAMETERS
|
|
|
|
|
|
|
|
|||||||
|
Code
|
Efficiency(%)
|
Pmpp(W)
|
Umpp(V)
|
Impp(A)
|
Voc(V)
|
Isc(A)
|
FF(%)
|
|||||||
|
PNG182M-232
|
23.2
|
7.66
|
0.5933
|
10.582
|
0.6874
|
11.113
|
82.18
|
|||||||
|
PNG182M-231
|
23.1
|
7.63
|
0.5916
|
10.566
|
0.6859
|
11.100
|
82.10
|
|||||||
|
PNG182M-230
|
23.0
|
7.59
|
0.5905
|
10.540
|
0.6837
|
11.105
|
81.97
|
|||||||
|
PNG182M-229
|
22.9
|
7.56
|
0.5887
|
10.525
|
0.6822
|
11.090
|
81.89
|
|||||||
|
PNG182M-228
|
22.8
|
7.53
|
0.5873
|
10.503
|
0.6811
|
11.082
|
81.73
|
|||||||
|
PNG182M-227
|
22.7
|
7.49
|
0.5856
|
10.486
|
0.6807
|
11.075
|
81.46
|
|||||||
|
PNG182M-226
|
22.6
|
7.46
|
0.5835
|
10.477
|
0.6790
|
11.060
|
81.41
|
|||||||
|
PNG182M-225
|
22.5
|
7.43
|
0.5817
|
10.462
|
0.6780
|
11.046
|
81.26
|
|||||||
|
PNG182M-224
|
22.4
|
7.4
|
0.5799
|
10.448
|
0.6777
|
11.039
|
80.98
|
|||||||
|
PNG182M-223
|
22.3
|
7.36
|
0.5781
|
10.433
|
0.6774
|
11.021
|
80.81
|
|||||||
|
PNG182M-222
|
22.2
|
7.33
|
0.5760
|
10.424
|
0.6748
|
11.014
|
80.79
|
|||||||
|
PNG182M-221
|
22.1
|
7.30
|
0.5742
|
10.409
|
0.6743
|
10.996
|
80.60
|
|||||||
|
PNG182M-220
|
22.0
|
7.26
|
0.5720
|
10.401
|
0.6729
|
10.990
|
80.45
|
|||||||
|
PNG182M-219
|
21.9
|
7.23
|
0.5701
|
10.386
|
0.6719
|
10.974
|
80.30
|
|||||||
|
PNG182M-218
|
21.8
|
7.20
|
0.5684
|
10.371
|
0.6713
|
10.958
|
80.12
|
|||||||
|
BACK ELECTRICAL PERFORMANCE PARAMETERS
|
|
|
|
|
|
|
||||||
|
Code
|
Efficiency(%)
|
Pmpp(W)
|
Vmpp(V)
|
Impp(A)
|
Voc(V)
|
Isc(A)
|
||||||
|
PNG182M-16.2
|
>16%
|
5.29
|
0.5884
|
7.549
|
0.6788
|
8.019
|
||||||
|
PNG182M-15.7
|
15.5%~16%
|
5.13
|
0.5782
|
7.492
|
0.6688
|
7.940
|
||||||
|
PNG182M-15.2
|
15%~15.5%
|
4.96
|
0.5721
|
7.335
|
0.6650
|
7.735
|
||||||
|
PNG182M-14.8
|
<15%
|
4.96
|
0.5657
|
7.173
|
0.6592
|
7.554
|
||||||
STC (Standard Testing Conditions)：1000W/m2，AM1.5，25℃
Technical parameters above-mentioned subjects to technical changes and tests.
Technical parameters above-mentioned subjects to technical changes and tests.
Pinergy Solar reserves the right of final interpretation.
Packing & Delivery
Packing Details:
>100PCS Solar Cells In One Paper Box
>16 Boxes In One Carton
>24 CTNS In One Pallet
>24 CTNS In One Pallet
Production Process
TEXTURING
DIFFUSION
ETCHING
PECVD
SCREEN PRINTING
FLASH TEST
