Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000k-6500k
-
Product Weight（kg）:
-
0.85
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
3600lm
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huahan
-
Model Number:
-
HH-PN-8103
-
Watt:
-
48W
-
LED Chip:
-
SMD2835-240pcs
-
LED Driver:
-
External Isolated Constant Current Driver
-
Dimmable:
-
Triac Dimmable available
-
Beam angle:
-
120degree
-
Size:
-
595*595mm
-
Installation:
-
Reccessed / Suspended/ Ceiling Mounted
-
Power Factor:
-
0.5
-
Certification:
-
ce/EMC/LVD/RoHS
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Application:
-
Home Office
-
Lamp Body Material:
-
Aluminum Alloy
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000k-6500k
-
Product Weight（kg）:
-
0.85
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
3600lm
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huahan
-
Model Number:
-
HH-PN-8103
-
Watt:
-
48W
-
LED Chip:
-
SMD2835-240pcs
-
LED Driver:
-
External Isolated Constant Current Driver
-
Dimmable:
-
Triac Dimmable available
-
Beam angle:
-
120degree
-
Size:
-
595*595mm
-
Installation:
-
Reccessed / Suspended/ Ceiling Mounted
-
Power Factor:
-
0.5
-
Certification:
-
ce/EMC/LVD/RoHS
Product Description
|
Product Name
|

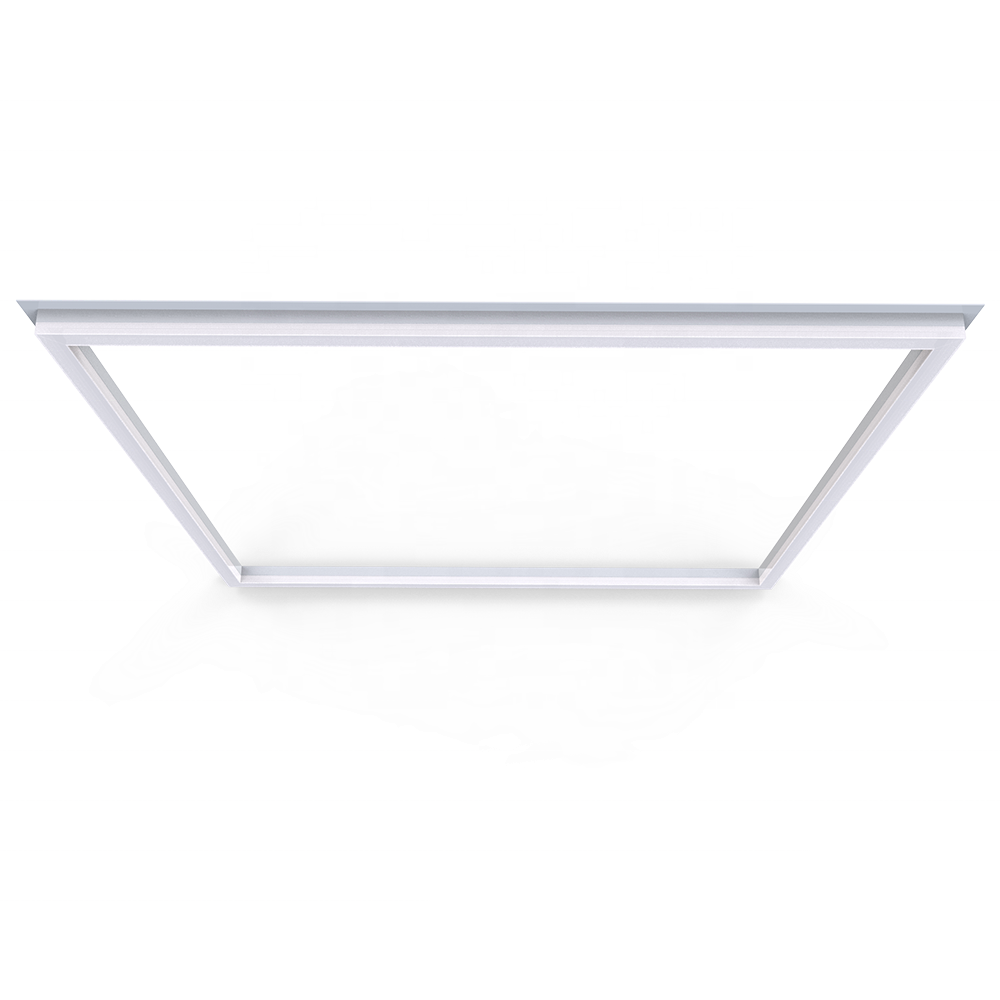

Project led frame panel light
|
|
Size
|
595x595mm
|
|
Watt
|
48W
|
|
Input Voltage
|
AC85-265V, 50/60Hz
|
|
LED Driver
|
Isolated led driver
|
|
Power Factor
|
PF>0.5
|
|
CRI
|
Ra>80
|
|
LED Type
|
SMD2835
|
|
Lumen
|
100±5%lm/w
|
|
Certificate
|
CE, RoHs
|
|
Warranty
|
3 years
|
|
IP Rating
|
IP20
|
|
Packaging
|
Brown/color box + carton, or as required package
|
|
Application
|
office, factory, supermarket, hotel, school, hospital, restaurant etc.
|
Features of our led frame panel light:
--Innovative & simple design.
--Perfectly replace the standard panels & grille light.
--The frame lamp would not affect the overall decorative effect of the ceiling.
--Frame panels can be put together into a variety of fashionable shapes.
--Higher Light efficiency and good color rendering index: 100-110lm/W, Ra>80.
--Light weight for easy carry, installation & storage.
--One light with 3 different installation methods--recessed, hanging and surface mount, while surface mounting does not need to use the transfer frame, direct screws can be.
