Quick Details
-
Brand Name:
-
SONGBAI
-
Voltage:
-
380V, customized
-
Dimension(L*W*H):
-
1000*450*850mm
-
Motor Power (Kw):
-
7.5 KW
-
Power (kW):
-
7.5 KW
-
Weight (KG):
-
250 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Wood Sawdust Pellet Biomass Wood Pellet Mill
-
Type:
-
Flat Die Biomass Pellet Mill
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste
-
Pellet size:
-
6/8/10mm
-
Spare parts:
-
Ring Die+ Rollers
-
Usage:
-
Making Wood Pellets Animal Feed Pellets
-
Application:
-
Producing Biomass Pellet
-
Function:
-
Make Wood Pellet
-
Key words:
-
Wood Pelletizer Machine Production Line
-
Keywords:
-
Wood Pellet Machine Making
Quick Details
-
Pellet Diameter (mm):
-
3 - 12
-
Output (kg/h):
-
100 - 150 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SONGBAI
-
Voltage:
-
380V, customized
-
Dimension(L*W*H):
-
1000*450*850mm
-
Motor Power (Kw):
-
7.5 KW
-
Power (kW):
-
7.5 KW
-
Weight (KG):
-
250 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Wood Sawdust Pellet Biomass Wood Pellet Mill
-
Type:
-
Flat Die Biomass Pellet Mill
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste
-
Pellet size:
-
6/8/10mm
-
Spare parts:
-
Ring Die+ Rollers
-
Usage:
-
Making Wood Pellets Animal Feed Pellets
-
Application:
-
Producing Biomass Pellet
-
Function:
-
Make Wood Pellet
-
Key words:
-
Wood Pelletizer Machine Production Line
-
Keywords:
-
Wood Pellet Machine Making
Related Products
Product Description
Industrial Wood Sawdust Making Machine Fuel Burning Pellets Making Mill Automatic Wood Pellet Machine Price For Sale
|

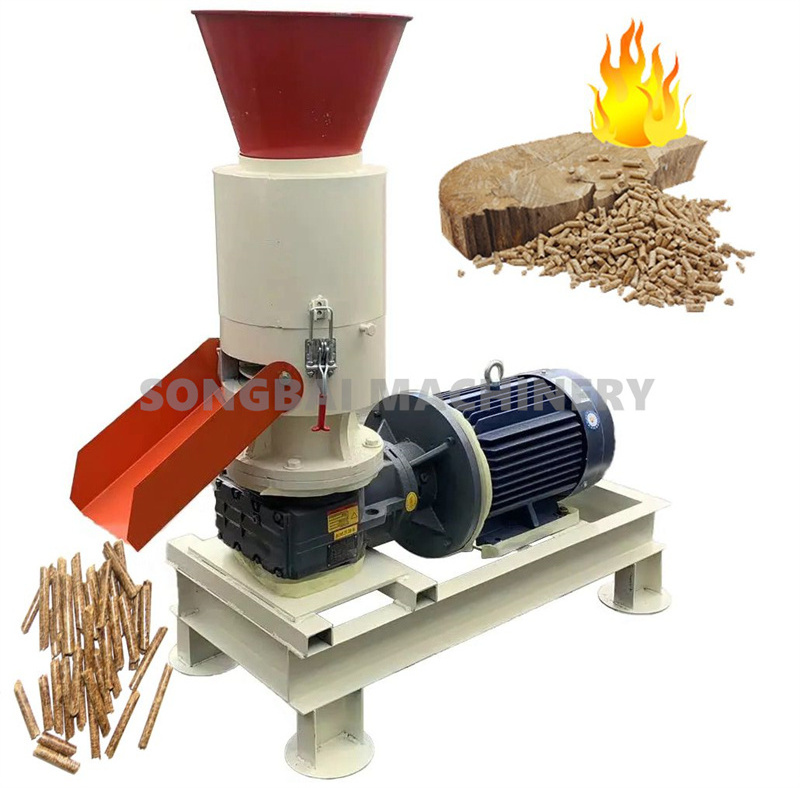

Introduce of Flat Die Wood Sawdust Pellet Making Machine
|
|
Wood pellet machine is biomass new energy equipment, is a pellet making equipment for wood pellet production; Using eucalyptus, birch, poplar, fruit wood, bamboo chips and crop straw as raw materials, finished wood pellets are made through crushing, drying, screening, granulation, cooling, packaging and other processes. Its finished products are used in biomass power generation, boilers, fireplaces, household equipment, etc.
|
|
Household biofuel pellet machine, mainly suitable for family and small processing plant use, the machine is mainly for wood chips,straw, cotton stalk, straw, rice husk, peanut shell, bamboo powder, palm empty fruit string and other plant waste and carbon powder, waste paper and other materials granulator, the machine structure is tight, easy to operate, stable operation, can work continuously, The pressed particles have the characteristics of high density, high combustion value, low moisture and low ash content. The machine is driven by a reducer.
|
|
Advantages of Roller Rotate Wood Pellets Machine Biomass Fuel Pellet Mill Wood Pelletizer
|
|
(1) We produce the wood pellet making machine in accordance with the European standard.
|
|
(2) All of our machines have passed CE certificate.
|
|
(3) Our flat die type wood pellet machine is for pressing biomass materials to be solid pellets which are used for burning;
|
|
(4) You can use nearly all kinds of biomass as raw materials, such as agricultural waste, straw, fodder, forestry wastes, lumber leftover, sawdust, wood chips and so on.
|
|
(5) As for the power, you can choose diesel engine driven or electric motor driven. And we have many different models for your option.
|
|
(6) Our pellet machines are ideal pellet press for personal, family and small plants. It’s very easy to operate and maintain.
|
|
(7) Flat die pellet machine is specially for making wood pellets, unique design for motor and gearbox, new roller rotating instead of previous die rotating. More than 20% output capacity increase than old models.
|
Specification
Different Capacity Biomass Wood Pellets Sawdust Press Pelleting Machine Specifications
According the the different pellets production, we have many models for the wood pellet mill, you can check the below specification to check which model you prefer to , if you have any interest, you can contact us freely, we glad to provide more professional recommend to you.
Contacts : Jesse Zhang
Whatsapp / Tel : +86 15638172840
Email Address: jessiezhang@songbaimachine.com
|
Model
|
Capacity (kg/h)
|
Power
(kw)
|
Pellet Diameter
(mm) |
Weight
(kg)
|
Machine Size
(mm)
|
|
PM-S-200
|
100-120
|
7.5
|
3-12mm
|
230
|
1000*450*850
|
|
PM-S-250
|
200-250
|
11/15
|
3-12mm
|
350
|
1200*550*1050
|
|
PM-S-300
|
250-350
|
18.5/22
|
3-12mm
|
450
|
1250*600*1100
|
|
PM-S-400
|
400-600
|
30/37
|
3-12mm
|
780
|
1400*600*1200
|
|
PM-S-500
|
700-800
|
55
|
3-12mm
|
1300
|
1700*750*1450
|
|
PM-S-600
|
1200-1300
|
90
|
3-12mm
|
1800
|
2100*900*1650
|
|
PM-S-700
|
1700-1800
|
132
|
3-12mm
|
2300
|
2400*1050*1870
|
Product Show
Packing & Delivery
|
Package & Shipping of Pine Oak Beach Fir Eucalyptus Wood Sawdust Pellets Making Machine
|
|
Packed in standard wooden case
|
|
Shipping by FCL, LCL, Shipping by sea
|
