Quick Details
-
Voltage:
-
220V/380V/415V(customizable)
-
Dimension(L*W*H):
-
900*800*1000mm
-
Weight:
-
560kg
-
Air capacity:
-
3Nm3/hr-80Nm3/hr
-
Application:
-
booster
-
Cooling method:
-
Air Cooling
-
Suction Pressure:
-
4bar
-
Discharge Pressure:
-
150-200bar (customizable)
-
Capacity:
-
3-80Nm3/hour
-
Product name:
-
Gas booster
-
Driven way:
-
belt
-
Power Rate:
-
7kw
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
swy
-
Model Number:
-
WWY3-80/4-150/200, Gow3-80/4-150/200
-
Voltage:
-
220V/380V/415V(customizable)
-
Dimension(L*W*H):
-
900*800*1000mm
-
Weight:
-
560kg
-
Air capacity:
-
3Nm3/hr-80Nm3/hr
-
Application:
-
booster
-
Cooling method:
-
Air Cooling
-
Suction Pressure:
-
4bar
-
Discharge Pressure:
-
150-200bar (customizable)
-
Capacity:
-
3-80Nm3/hour
-
Product name:
-
Gas booster
-
Driven way:
-
belt
-
Power Rate:
-
7kw

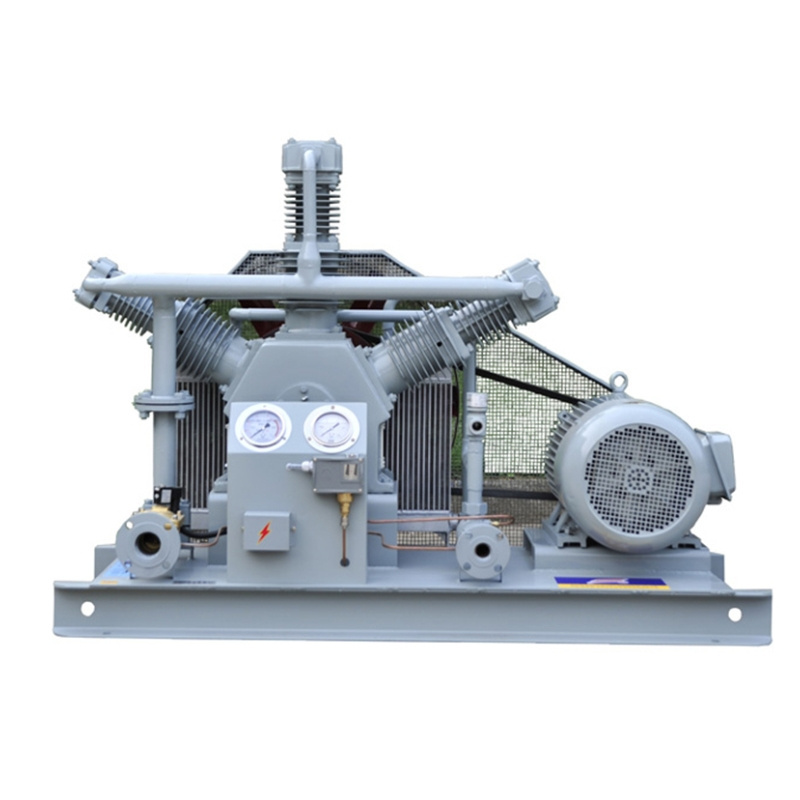

Easy Maintenance And High Economical 15Mpa Oxygen Gas Booster Pump
The series oilless semi-hermetic Oxygen Gas Booster Pump adopts hermetic construction for its motor without pollution to the medium to be compressed and without leakage. This series booster has numerous advantages of reliable performance, simple operation, compact construction, quick connection etc, and thus is deeply favored by the users. It can be applied in the compression and recovery of toxic ,rare and precious gases such as SF6, helium , methane, ammonia, freon, carbon dioxide etc.
-
1. Oilless and non-lubricating reciprocating Oxygen Gas Booster Pump
2. Long service life for compressor components
3. Air-cooler or Water-cooled type
4. Power range:1.5~45kw
5. Speed range:400~800rpm
6. Flow range: 1~200Nm3/hour
7. Inspiratory pressure range: -1.0bar~20bar
8. Exhaust pressure range: 2bar~200bar
9. Number of compression stage:1~5
10. Compact structure ,low cost for operation and maintenance
11. Suitable for booster
12. Alternative forms of mechanical seal ,magnetic coupling seal and magnetic seal.
Nitrogen Booster used for Laser cutting
