Digital Control Single Phase NBC 220 Igbt MIG Inverter Welding Machine Mig Welder Other ARC Welders

Digital Control Single Phase NBC 220 Igbt MIG Inverter Welding Machine Mig Welder Other ARC Welders

FOB Reference Price: Get Latest Price

≥1 Cartons

US $229.99

≥50 Cartons

US $220.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rated Input Voltage:: 220 V

Rated Output Voltage (MIG):: 25 V

Wire Feeding Speed:: 15 m/min

Place of Origin:: Shenzhen China

Brand Name:: HITBOX

Usage:: Inverter MIG MAG gasless welding machine

Weight (KG):: 20 KG

Model:: MIG250

Power input AC(V):: 220V voltage

Function:: MIG welder, with Lift TIG function, ARC(MMA) / MIg 3 in 1.

Welding material:: carbon steel, Iron or stainless steel.

Rated duty cycle(%):: 40% at 120 amps

Technology:: Igbt Inverter Welding

Welding current range(A):: 30-120(MIG)

Application:: Welding Wire 0.8/1.0mm

Frequency:: 50/60 Hz MIG Welder

Packing:: Carton Packing

Quick Details

Wire Melting Type:: Short Circuit Transfer

Max. Load Power Capacity:: 7.1KVA

Rated Duty Cycle @40°C (MIG):: 60%

Rated Input Voltage:: 220 V

Rated Output Voltage (MIG):: 25 V

Wire Feeding Speed:: 15 m/min

Place of Origin:: Shenzhen China

Brand Name:: HITBOX

Usage:: Inverter MIG MAG gasless welding machine

Weight (KG):: 20 KG

Model:: MIG250

Power input AC(V):: 220V voltage

Function:: MIG welder, with Lift TIG function, ARC(MMA) / MIg 3 in 1.

Welding material:: carbon steel, Iron or stainless steel.

Rated duty cycle(%):: 40% at 120 amps

Technology:: Igbt Inverter Welding

Welding current range(A):: 30-120(MIG)

Application:: Welding Wire 0.8/1.0mm

Frequency:: 50/60 Hz MIG Welder

Packing:: Carton Packing

Product Overview

* * Synergic Control MIG Function allows the automatic change of the voltage & wire feeding speed by adjusting the amperage or choosing different thicknesses. It will match the welding chart set in the data. making it extremely easy for your welding works
* MMA/ARC Stick : Hot start function make the arc ignition in MMA welding easier and avoid adhesion. The arc force up to 200A current obviously improve the performance of the machine in long-cable welding. Ability to use up to 165 feet (50 meters) leads without any power loss at the weld
* Lift Tig: For welding with higher requirements, the lift-tig mode is recommended.to use this process, you will need to purchase the appropriate torch, regulator, hose, tungsten electrodes and gas separately(available in our shop)

FEATURES AT A GLANCE

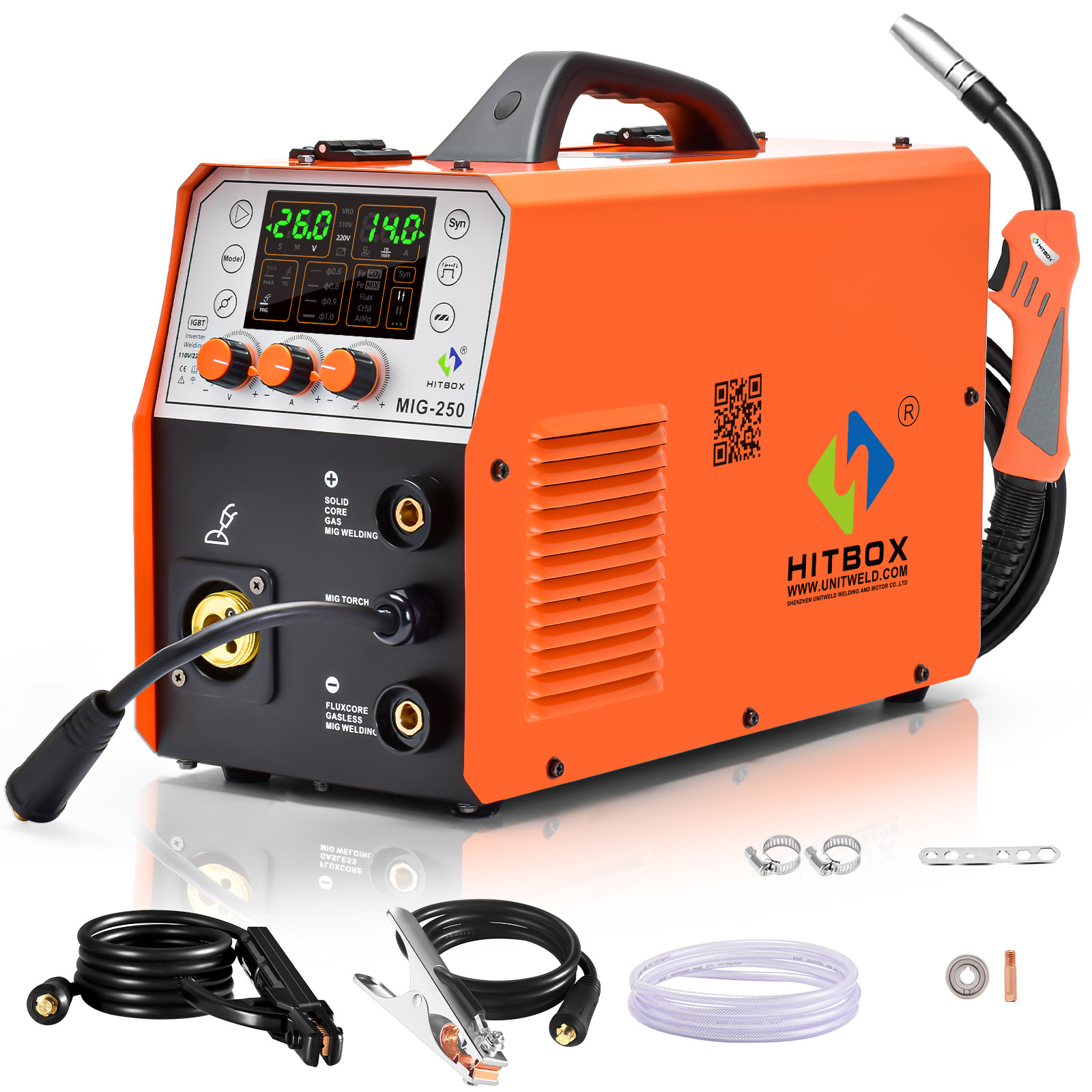

HITBOX MIG250 mig welder

* Welding functions: Support for MIG gas, MIG mix, Flux cored/MIG gasless, Lift TIG, MMA.
* Clear display: The new digital LED panel display shows every detail of the weld clearly.
* Easy adjustment: easy switching of welding modes and adjustment of welding parameters.
* Automatic wire feed function: quickly feeds the wire out of the gun, even to inaccessible interiors.
* Inductance adjustment: adjusts the softness of the arc, reduces spatter/deepens the fusion pool.
* Multiple upgrade functions: 2T/4T welding mode, inductance adjustment, voltage adjustment

PRODUCT SPECIFICATIONS

Rated input voltage (V)	220V
Frequency (HZ)	50/60 HZ
Rated input power (KW)	MIG: 5.7; TIG: 4.37; MMA: 6.3
Rated input current (A)	MIG: 36.0; TIG: 28.1; MMA: 40.5
Rated input apparent power (KVA)	MIG: 7.8; TIG: 6.21; MMA: 8.9
Welding current adjust range (A)	10 ~ 200
Welding voltage adjust range (V)	10 ~ 26
No load voltage (V)	50V (adjustable)
Function	MIG gasless welder、MIG MIX gas welder、MIG CO2 gas welder、TIG welder（Lift）、ARC welder.

About mig welding

* MAG welding: Connect the ground clip to the negative terminal.
* MIG gasless: connects the ground clamp to the positive terminal.
* Flux wire .035"; Aluminum Wire .035"/.045"(Gasless MIG)
* Selection Wire Diameters (Solid Wire .023"/.030"/.035")

Note: The MIG function does not display the current, only the wire feed speed(0-14m/min)

About Lift TIG welding

* Connect the ground clip to the positive terminal
* Connect the WP-17V tig torch to the negative terminal
* Application of Tungsten electrodes diameter:1/8”,3/32",3/16",1/16",5/32"

Recommend using tungsten needles within a diameter of 3.2mm for arc start.
Note: WP-17V torch not included,

About MMA welding

* Connect the ground clip to the negative terminal
* Connect the electrode holder to the positive terminal

Ideal performance for most 6010, 6011, 6013 and 7018 rods. electrodes up to 5/32"
