Quick Details
-
Brand Name:
-
huarui
-
Model Number:
-
AG 60/SG 55, SG-55 AG-60
-
MOQ:
-
1 PC
-
Length:
-
4M, 8M(CUSTOMIZE)
-
Rear Connector:
-
3/8'' BSP, M16*1.5
-
Weight::
-
3-5kg
Quick Details
-
Type:
-
CUTTING TORCH
-
Warranty:
-
3months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
huarui
-
Model Number:
-
AG 60/SG 55, SG-55 AG-60
-
MOQ:
-
1 PC
-
Length:
-
4M, 8M(CUSTOMIZE)
-
Rear Connector:
-
3/8'' BSP, M16*1.5
-
Weight::
-
3-5kg

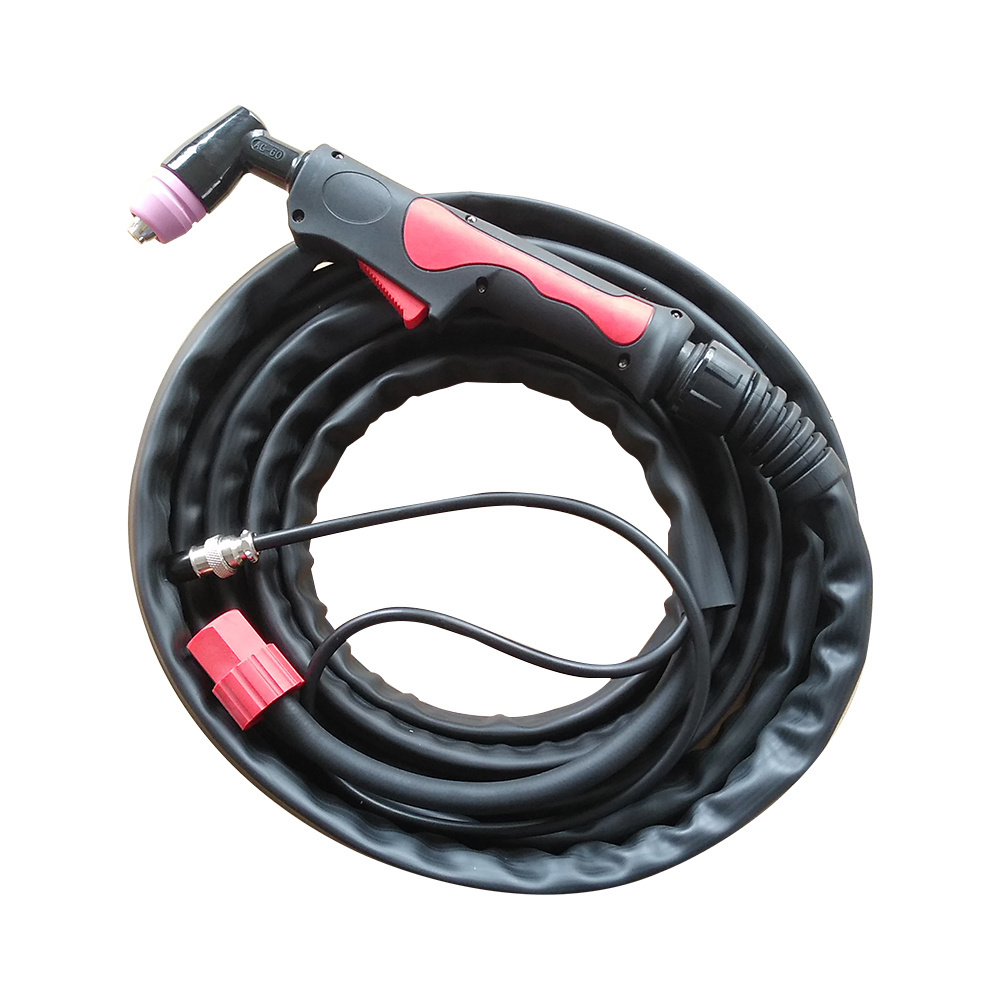

AG60 SG55 plasma cutting torch
|
Rating
|
40 Amps @ 35% Duty Cycle Cutting Capacity: 10mm
|
|
|
Gas
|
Single Air,0.35-0.45 litres Mpa
|
|
|
Rear Connector
|
3/8'' BSP, M16*1.5
|
|
|
Certification
|
ISO9001, CCC, CE, ROHS, TUV
|
|
|
Packing
|
1set/box neutral packing, 5sets/Carton Box
|
|
|
CONSUMABLES
|
|
|
|
A.
|
Torch Head -Hand
|
|
|
B.
|
Handle c/w Switch
|
|
|
1. 18205
|
Electrode - Zirconium
|
|
|
2. 19683
|
Electrode HD - 30-50 amp - Hafnium
|
|
|
3. 20862
|
Electrode - Hafnium
|
|
|
4. 18785
|
Swirl Baffle - 4 Holes
|
|
|
5. 20463
|
Swirl Baffle - 6 Holes
|
|
|
6. 18204
|
Shield Cup
|
|
|
7. 18866
|
Nozzle 1.0 - .039 - 30 amp
|
|
|
8. 19682
|
NozzleHD 0.96 - .038 - 30 amp
|
|
|
20079
|
Nozzle HD 1.35 - .053 - 50 amp
|
|
|
9. 20860
|
Nozzle 0.96 - .038 - 30 amp
|
|
|
21008
|
Nozzle 1.07 - .042 - 40 amp
|
|
|
20861
|
Nozzle 1.17 - .046 - 50 amp
|
|
|
|
|
|
Changzhou Hu
aru
i W
elding
& Cut
ting Co., LTD
used in ship-building, railway, aviation and other related welding industry. Our torches can fit different kinds of foreign equipment.
Q1: Can I get a samples to check the quality?
A:Sure,we can supply samples. For regular goods, the sample cost is different from the amount you want. For our new products, there's a MOQ of the samples.
Q2: Can I put my logo on the boxes/cartons?
A: Yes, this can be made according to your requirements, but you should send us the trademark authorization letter.
Q3: How can you guarantee your products quality ?
A: Huarui’s each torch must pass the following tests before packing: Insulation resistance test, High voltage test, Air/Water flow test, Air/Water seal test.
If there are defective items, we usually credit to our customer or replace in the next shipment.
Q4: What's the order procedure?
A: Firstly, we discuss the details together by e-mail or TM. Then we issue you a PI for your confirmation or Trade Assurance Order Payment Link. You will be requested to do the pre-paid full payment before we go into the production. After we get the payment, we start to process the order. It usually takes 5-15days if we don't have the items in stock.
