Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
Nuclear industry and used in the manufacture of uranium enrichment
-
Grade:
-
monel400
-
Ni (Min):
-
63%
-
Model Number:
-
ERNiCu-7
-
Brand Name:
-
GY
-
Type::
-
Round wire
-
Colour::
-
bright,shinny
-
Finish condition::
-
Soft ,anneled
-
Surfurce::
-
Smooth
Quick Details
-
Powder Or Not:
-
Not Powder
-
Ultimate Strength (≥ MPa):
-
>690
-
Elongation (≥ %):
-
>25
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
Nuclear industry and used in the manufacture of uranium enrichment
-
Grade:
-
monel400
-
Ni (Min):
-
63%
-
Model Number:
-
ERNiCu-7
-
Brand Name:
-
GY
-
Type::
-
Round wire
-
Colour::
-
bright,shinny
-
Finish condition::
-
Soft ,anneled
-
Surfurce::
-
Smooth

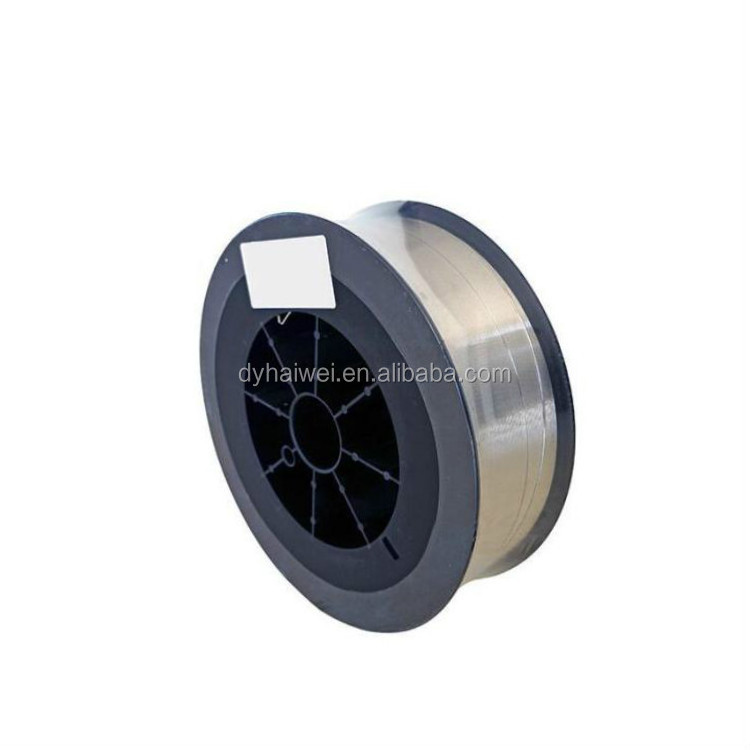

High quality Nickel copper alloy Monel 400 mig welding wire ERNiCu-7
| Type | ERNiCu-7 |
| Size | 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM |
| Form | MIG(15kg/spool), TIG(5kg/box),Strip |
Application : used for welding the Monel 400/k500, and other stainless steel with Mo by the way of gas metal arc welding, tungstun-inert-gas arc welding.
Monel 400 International brand:
| USA | GE | UK | FR | |
| UNS | SEW VDIUV | BS | AFNOR | |
| Monel 400 | N04400 | W.Nr.2.4360 NiCu30Fe | NA 12 | Nu 30 |
Chemical Composition:
| Grade | Ni% | Cu% | Fe% | Mn% | C% | Si% | S% |
| Monel 400 | Min 63 | 28-34 | Max 2.5 | Max 2.0 | Max 0.3 | Max 0.5 | Max 0.024 |
Physical Properties:
| Grade | Density | Melting Point |
| Monel 400 | 8.83 g/cm3 | 1300°C-1390°C |
Mechanical Properties:
| Alloy | Tensile Strength (Rm N/mm2) | Yield strength (RP0.2N/mm2) | Elongation (A5 %) | HB |
| Monel400 | 480 | 170 | 35 | ≥331 |
Production Standard:
| Bar | Forging | Pipe | Sheet/Strip | Welding Wire | |
| Standard | ASTM B164 | ASTM B564 | ASTM B165 | ASTM B127 | ERNiCu-7ERNiCu-7 |
Packaging:
Size:1.3-10.00mm
About 20kgs one coil wraped with plastic film put on wodden pallet or accord to customer's requirement.
Size:0.01-1.2mm
In spool warpped with plastic film put into carton then put on the wodden pallet.
One spool can put into 0.5/1/1.5/3/5/15/20 kgs wire accord to wire size.
Shipping: sample order send 3-5 days
Regular order 15-25 days accord to quantity.
