Quick Details
-
Operating Voltage (Un):
-
5V
-
Nominal Discharge Current:
-
5KA
-
core - shell Limit voltage:
-
≤15V
-
Transmission rate (bit/s)::
-
10M
-
Insertion Loss::
-
≤0.2dB
-
Response Time:
-
≤1ns
-
Interface Model:
-
BNC-75Ω
-
Protected Core::
-
Coaxial type
-
Dimension(mm) ::
-
82*25*25
-
Weight(kg):
-
0.05
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KERBS
-
Model Number:
-
KLF-X/10M/BNC
-
Operating Voltage (Un):
-
5V
-
Nominal Discharge Current:
-
5KA
-
core - shell Limit voltage:
-
≤15V
-
Transmission rate (bit/s)::
-
10M
-
Insertion Loss::
-
≤0.2dB
-
Response Time:
-
≤1ns
-
Interface Model:
-
BNC-75Ω
-
Protected Core::
-
Coaxial type
-
Dimension(mm) ::
-
82*25*25
-
Weight(kg):
-
0.05

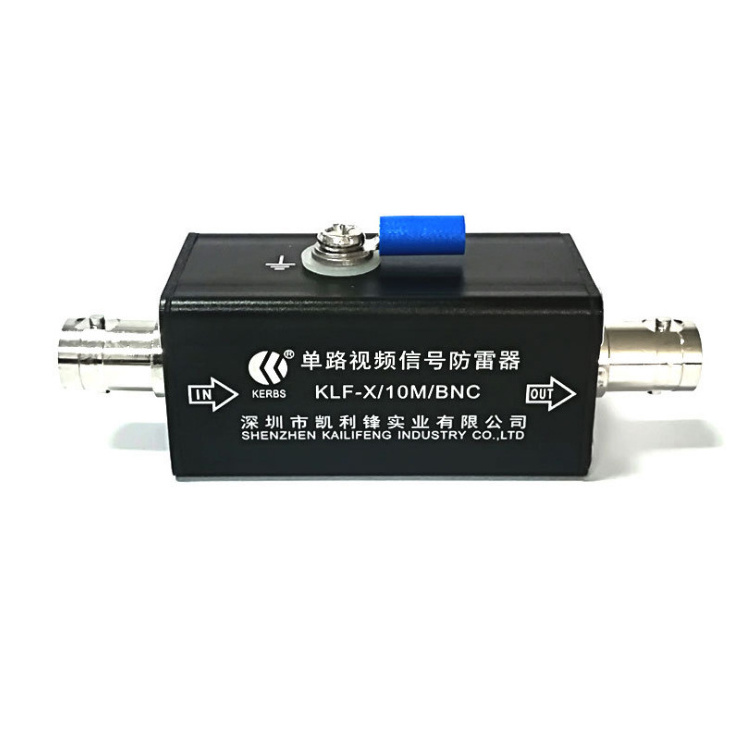

BNC connector Coaxial cable surge protector for CCTV protection
Feature:
- One channels video BNC interface.
- Core components are selected international brands,
- Multistage protection, low residual voltage, fast response.
- Low-volume design, excellent transmission performance,
- Large intake capacity and long lifetime.
Application :
Monitor system(such as video matrix switchers, cameras, video surveillance equipment, video distributor, etc),video line surge protection .
Technical Parameters:
|
TYPE |
KLF-X/10M/BNC |
|
|
Operating Voltage (Un): |
5V |
|
|
Nominal Discharge Current (8/20μs) (In): |
5KA |
|
|
Transmission rate (bit / s): |
10M |
|
|
Insertion Loss (dB): |
≤0.2dB |
|
|
Limit voltage ( V ) : |
core - shell |
≤15V |
|
Shell-the ground |
≤100V |
|
|
Response Time: |
≤1ns |
|
|
Input and output impedance: |
75Ω |
|
|
Interface Model: |
BNC-75Ω |
|
|
Protected Core: |
Coaxial type |
|
|
Working Environment: |
Temperature -25°C +70°C; Relative humidity<95%; |
|
|
Dimension(mm) : |
82*25*25 |
|
|
Weight(kg): |
0.05 |
|
Rich Experience: Our factory was founded in 2004 , have a long history in manufacturing and selling of a complete range of surge arresters. We firmly promise to top quality, competitive price, quick delivery And good before/after sales services. OEM service is welcomed.
Good after sales service: Any small problems happening in our SPD will be solved at the most prompt time. We always offer relative technical support/consultant. Quick response , all your inquiry will be replied within 24 hours.
Quality warranty: one year replacement, five years warranty .
