Quick Details
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SumAir
-
Model Number:
-
ADC-030ICY
-
Function:
-
Pool heating and cooling
-
Refrigerant:
-
R32
-
Compressor:
-
Panosonic
-
Voltage:
-
220V/380V~Inverter
-
COP:
-
6.4~3.05
-
Controller:
-
Touch Screen + WIFI
-
Settig temperature range:
-
12°C~40°C
-
Working Ambient Temperature:
-
Minus 5C-43C
-
OEM Service:
-
Accept
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Power Source:
-
Electric, Solar
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SumAir
-
Model Number:
-
ADC-030ICY
-
Function:
-
Pool heating and cooling
-
Refrigerant:
-
R32
-
Compressor:
-
Panosonic
-
Voltage:
-
220V/380V~Inverter
-
COP:
-
6.4~3.05
-
Controller:
-
Touch Screen + WIFI
-
Settig temperature range:
-
12°C~40°C
-
Working Ambient Temperature:
-
Minus 5C-43C
-
OEM Service:
-
Accept
Products Description

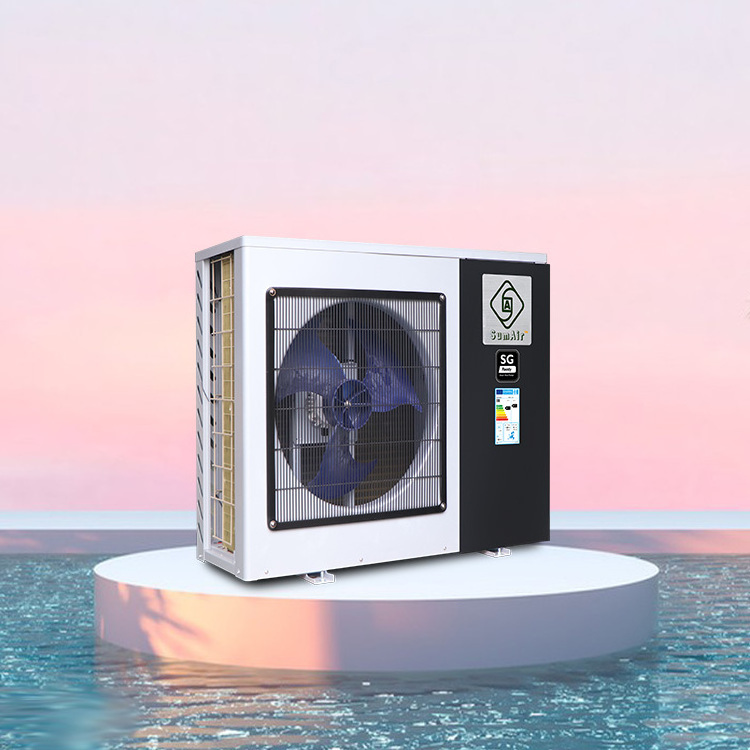

Touch Screen+WIFI R32 swim heating system Mini Dc Inverter Swimming Pool Heat pumps Water Heater Solar Pools Heaters
Features
1.
Super Efficiency
Top SCOP in cold, ENERGY SAVING in homoeothermy, Panasonic DC Inverter Dual Rotary compressor & ECO R32/R290 refrigerant for max heating capacity and least refrigerant, large volume of latent heat from the air in extremely harsh climate.
2. Advanced Operate System
Ultra intelligent, WIFI available, Moto IC, especially superior heat dissipation circuit board design, longer service, over 3 time of other brand's, simple click and fully play the characteristics of DC inverter frequency conversion system to achieve
overlocking performance.
3. Mute Operation
Superior low-noise DC infinity fan motor with , plus high-density aviation insulation sound-absorbing foam & adhesive tape,
compressor housing, keeping high running noise far away from you, your families & neighborhood.
4. Constant Reliability, at least 5 years
High quality Titanium Tube in PPR Heat Exchanger guaranties pool heat pump water heating heating pool water after chlorine,salts and bromine treatments.
5. 4-season 24H Operation
Pool heat pump enable it work in wide ambient temperature, range from -25℃ to 43℃, providing all-year-round satisfied water temperature 28℃-45℃, even the device is installed in cold outdoor.
Top SCOP in cold, ENERGY SAVING in homoeothermy, Panasonic DC Inverter Dual Rotary compressor & ECO R32/R290 refrigerant for max heating capacity and least refrigerant, large volume of latent heat from the air in extremely harsh climate.
2. Advanced Operate System
Ultra intelligent, WIFI available, Moto IC, especially superior heat dissipation circuit board design, longer service, over 3 time of other brand's, simple click and fully play the characteristics of DC inverter frequency conversion system to achieve
overlocking performance.
3. Mute Operation
Superior low-noise DC infinity fan motor with , plus high-density aviation insulation sound-absorbing foam & adhesive tape,
compressor housing, keeping high running noise far away from you, your families & neighborhood.
4. Constant Reliability, at least 5 years
High quality Titanium Tube in PPR Heat Exchanger guaranties pool heat pump water heating heating pool water after chlorine,salts and bromine treatments.
5. 4-season 24H Operation
Pool heat pump enable it work in wide ambient temperature, range from -25℃ to 43℃, providing all-year-round satisfied water temperature 28℃-45℃, even the device is installed in cold outdoor.
6.
Precise Water Temperature Outlet
28℃ to 45℃ hot water or 7℃-12℃ chilled water outlet meet either indoor or outdoor pool for swimming or SPA, comfortable & leisure.
28℃ to 45℃ hot water or 7℃-12℃ chilled water outlet meet either indoor or outdoor pool for swimming or SPA, comfortable & leisure.
Paramenters
|
Model
|
|
ADC-010ICY
|
ADC-015ICY
|
ADC-025ICY
|
ADC-030ICY
|
ADC-045ICY
|
|||||
|
Heating
|
Heating capacity (kW)
|
3.36
|
5.17
|
10.34
|
13.8
|
18.1
|
|||||
|
|
Input power (kW)
|
0.75
|
1.05
|
2.05
|
2.7
|
3.58
|
|||||
|
|
COP
|
5.2
|
5.71
|
5.85
|
5.93
|
5.87
|
|||||
|
Heating
|
Heating capacity (kW)
|
2.58
|
3.87
|
7.67
|
10.17
|
12.93
|
|||||
|
|
Input power (kW)
|
0.7
|
1.02
|
1.98
|
2.65
|
3.35
|
|||||
|
|
COP
|
4.29
|
4.41
|
4.49
|
4.45
|
4.48
|
|||||
|
Power supply(V/Ph/Hz)
|
|
220-240V/1ph/50Hz or 380-415V/3Ph/50Hz
|
|
|
|
|
|||||
|
Max power input(KW)
|
|
1.05
|
1.6
|
2.4
|
2.65
|
3.6
|
|||||
|
Max current(A)
|
|
4.78
|
7.4
|
10.9
|
12.4
|
16.4
|
|||||
|
Settig temperature range(Heating)
|
|
15°C～40°C
|
|
|
|
|
|||||
|
Settig temperature range(Cooling)
|
|
12°C～25°C
|
|
|
|
|
|||||
|
Running temperature range
|
|
-5°C～43°C
|
|
|
|
|
|||||
|
Housing Material
|
|
Galvanized steel, powder coating
|
|
|
|
|
|||||
|
Compressor
|
|
Panasonic DUAL ROTARY
|
|
|
|
|
|||||
|
Refrigerant type
|
|
R32
|
|
|
|
|
|||||
|
Operating System
|
|
DC Operate system, Micro-PC, Moto chipset, LED Screen with Touch screen
|
|
|
|
|
|||||
|
Fan Motor
|
|
DC TYPE
|
|
|
|
|
|||||
|
Air side heat exchanger
|
|
Hydrophilic Aluminum FinHMd Evaporator
|
|
|
|
|
|||||
|
Water side heat exchanger
|
|
Titanium Heat Exchanger
|
|
|
|
|
|||||
|
Water flow (m³/h)
|
|
1.4
|
2.6
|
4.4
|
5.2
|
6.9
|
|||||
|
Net size LxWxH (mm)
|
|
880×353×618
|
|
|
980×353×660
|
|
|||||
|
Net weight （kg）
|
|
33
|
36
|
39
|
49
|
56
|
|||||
|
Noise in 1M dB(A)
|
|
45
|
45
|
46
|
47
|
48
|
|||||
|
Water Pipe ConHMction Inlet/Outlet
|
|
1 1/2”
|
|
|
|
|
|||||
Why Choose Us
3-row thicker & more anti-wear copper tubes, 7*21mm hole distance, "plain" + "windows" fins in evaporator: 1.8-2 times faster defrosting speed, & air residence is delayed, improving heat exchanging COP greatly, 3-time higher.
Copper paint spray sealing on welding port/soldering point surface, highly anti-rusting & deeply balancing uneven tension by poor welding.
TWO solders high-temp. welding, fully improving welds' strength to reduce gas leakage. Mysteriouse flux miraculously improves auxiliary heat conduction, removing oxides, reducing welded surface tension & increasing the area, preventing re-oxidation &＞2-time prolonging pipeline's life.
