Quick Details
-
Model Number:
-
T8301-SZBQ-H
-
Max. Current:
-
5A
-
Mechanical Life:
-
50000 Cycles
-
Function option:
-
ON-OFF-(ON)
-
Rating:
-
5A@125 VAC/28VDC
-
Product Name:
-

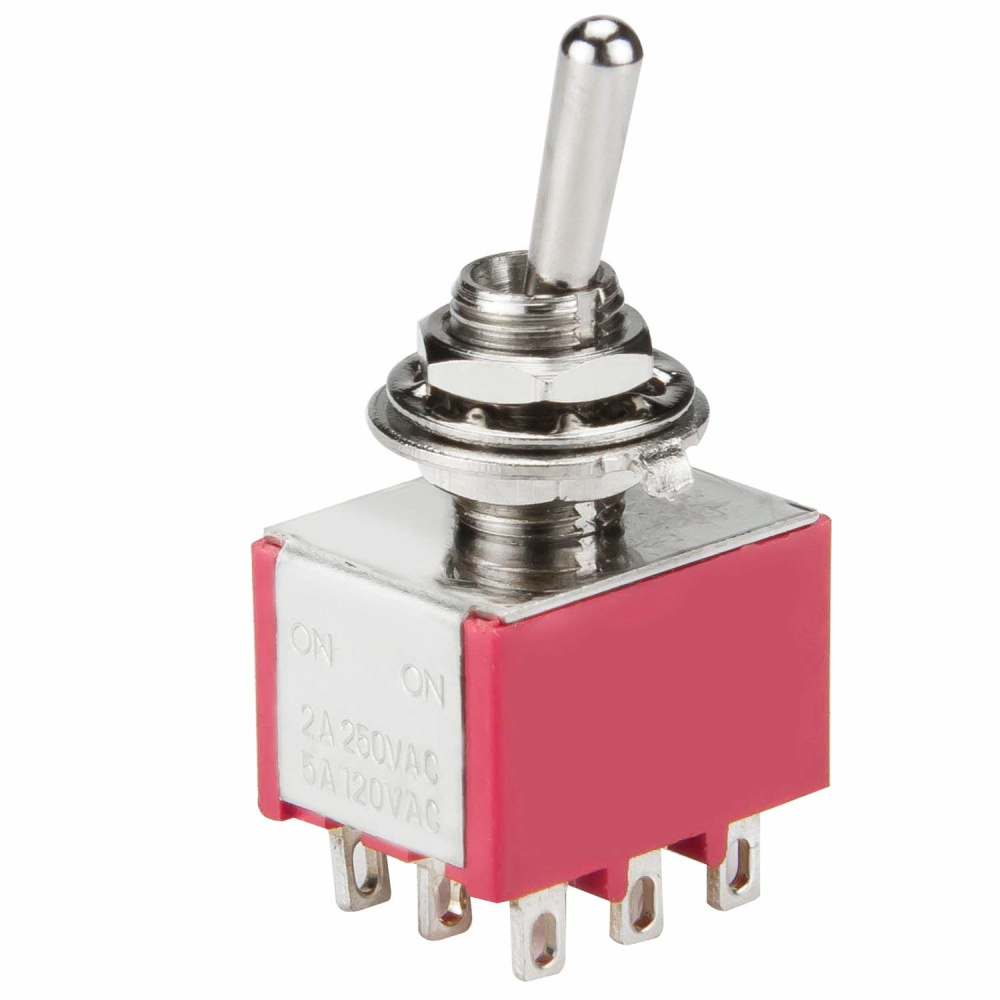

5A 125VAC ON-ON 9PIN DPDT Miniature Toggle Switch
-
Operated Temperature:
-
-30℃~85℃
-
Electrical life:
-
50,000 make and break cycles at full load
-
Dielectric withstanding voltage:
-
1500VRMS at Sea Level
-
Contact resistance:
-
10mΩ max. (initial) @2-4 VDC, 100Ma
-
Actuator:
-
5/7/10/11/13/16/21mm handle
-
Contacts:
-
Silver-plated/Gold-plated/tin-plated
-
Certifications:
-
RoHS, CQC
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
125VAC/28VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SH
-
Model Number:
-
T8301-SZBQ-H
-
Max. Current:
-
5A
-
Mechanical Life:
-
50000 Cycles
-
Function option:
-
ON-OFF-(ON)
-
Rating:
-
5A@125 VAC/28VDC
-
Product Name:
-
5A 125VAC ON-ON 9PIN DPDT Miniature Toggle Switch
-
Operated Temperature:
-
-30℃~85℃
-
Electrical life:
-
50,000 make and break cycles at full load
-
Dielectric withstanding voltage:
-
1500VRMS at Sea Level
-
Contact resistance:
-
10mΩ max. (initial) @2-4 VDC, 100Ma
-
Actuator:
-
5/7/10/11/13/16/21mm handle
-
Contacts:
-
Silver-plated/Gold-plated/tin-plated
-
Certifications:
-
RoHS, CQC
-
Certification:
-
CE
Product Description
Specification
|
item
|
value
|
|
Certification
|
REACH,ROHS
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
HONGJU
|
|
Model Number
|
T8019L-TNQ
|
|
Contacting rating
|
5A 125VAC
|
|
Electrical Life
|
50000 make and break cycles at full load
|
|
Contact Resistance
|
10m Ω Max. Initial
|
|
Insulation Resistance
|
1000MΩ 1Min
|
|
Dielectric Strength
|
1500VRMS @ Sea Level
|
|
Operating temperature
|
-30℃-85℃
|
