- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V
-
Power:
-
1.3KW
-
Dimension(L*W*H):
-
720*705*730
-
Weight (KG):
-
30
-
Applicable Industries:
-
lab
-
Evaporation Capacity(kg/h):
-
/
-
Freeze Drying Area:
-
0.12 m2
-
Tray:
-
4 pcs
-
Height Between Trays:
-
50mm
-
Cold Trap Temperature:
-
≤-56℃
-
Cold Trap Capacity:
-
9.5L
-
Cold Trap Size (Diameter*H):
-
O215*260mm
-
Vacuum Degree:
-
<10 Pa
-
Water Capture Capacity:
-
3 Kg/24h
-
Tray Size (D*H):
-
O200*20mm
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Voltage:
-
220V
-
Power:
-
1.3KW
-
Dimension(L*W*H):
-
720*705*730
-
Weight (KG):
-
30
-
Applicable Industries:
-
lab
-
Evaporation Capacity(kg/h):
-
/
-
Freeze Drying Area:
-
0.12 m2
-
Tray:
-
4 pcs
-
Height Between Trays:
-
50mm
-
Cold Trap Temperature:
-
≤-56℃
-
Cold Trap Capacity:
-
9.5L
-
Cold Trap Size (Diameter*H):
-
O215*260mm
-
Vacuum Degree:
-
<10 Pa
-
Water Capture Capacity:
-
3 Kg/24h
-
Tray Size (D*H):
-
O200*20mm

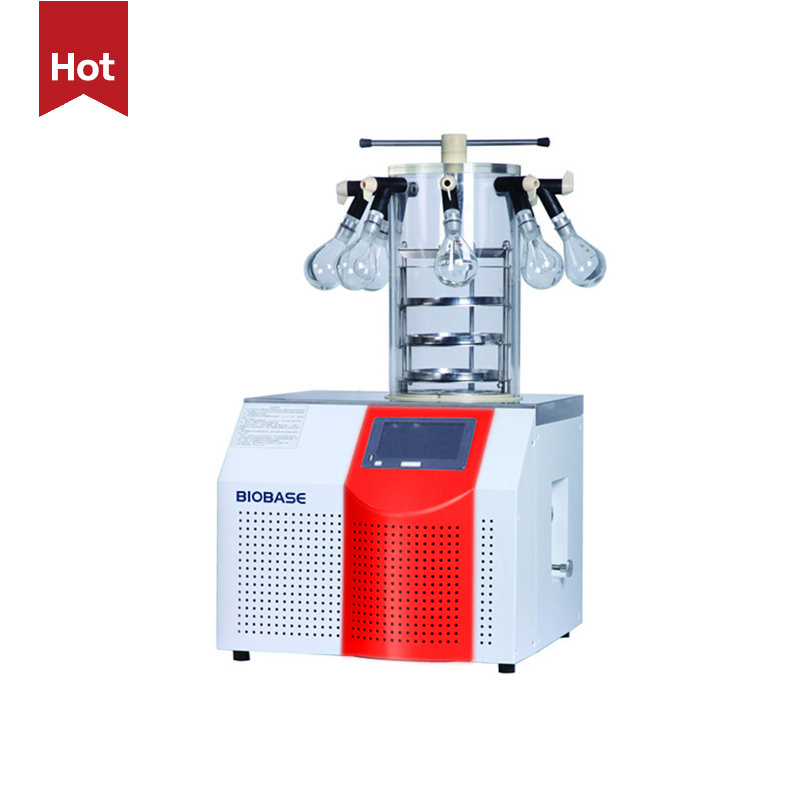

BIOBASE Freeze Dryer BK-FD10P
Product Description
1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements .
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements .
Technical Parameters
|
Model
|
|
BK-FD10P
|
|
|
Type
|
|
Standard chamber
|
|
|
Freeze Drying Area
|
|
0.12 m2
|
|
|
Tray
|
|
4/6(Optional) pcs
|
|
|
Height Between Trays
|
|
76/50mm
|
|
|
Cold Trap Temperature
|
|
≤-60℃
|
|
|
Cold Trap Capacity
|
|
6.9L
|
|
|
Cold Trap Size (Diameter*H)
|
|
Φ215*190mm
|
|
|
Vacuum Degree
|
|
<10 Pa
|
|
|
Water Capture Capacity
|
|
3kg/24h
|
|
|
Freeze Drying Time
|
|
24h
|
|
|
Loading Capacity/Shelf (Liquid)
|
|
0.3L
|
|
|
Total Loading Capacity (Liquid)
|
|
1.2L
|
|
|
Drying Chamber Size (Diameter*H)
|
|
Φ260*310mm
|
|
|
Total Qty. Of Vial Φ22
|
|
260
|
|
|
Total Qty. Of Vial Φ16
|
|
480
|
|
|
Total Qty. Of Vial Φ12
|
|
920
|
|
|
Refrigerant
|
|
R600a+R290+R23
|
|
|
Cooling System
|
|
Air cooling
|
|
|
Power Supply
|
|
220V/50Hz,60Hz (single phase)
110V/60Hz (single phase) |
|
|
Power Consumption
|
|
1.3KW
|
|
|
Power Supply
|
|
AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase)
|
|
|
Standard Accessory
|
|
Vacuum pump 2L/S, 8m3/h (for all models)
Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) |
|
|
Optional Function & Accessory
|
|
Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT)
Import vacuum pump |
|
|
External Size (W*D*H)
|
|
600*560*374/820mm
|
|
|
Package Size(W*D*H)mm/
Gross Weight |
Main Body
|
670*700*560mm
|
|
|
|
Drying Chamber
/Vacuum Pump |
620*400*400(15kg)
570*360*240(22kg) |
|
