Quick Details
-
Row Distance(mm):
-
550 - 800 mm
-
Place of Origin:
-
China
-
Brand Name:
-
LS
-
Dimension(L*W*H):
-
1800*1000*980mm
-
Weight:
-
180 KG
-
Working depth:
-
250mm
-
Potato exposing rate:
-
>96%
-
Breakage rate:
-
≤2%
Quick Details
-
Number of Rows:
-
1,2
-
Working Width(mm):
-
650 mm
-
Tractor Power(HP):
-
22 - 35 HP
-
Row Distance(mm):
-
550 - 800 mm
-
Place of Origin:
-
China
-
Brand Name:
-
LS
-
Dimension(L*W*H):
-
1800*1000*980mm
-
Weight:
-
180 KG
-
Working depth:
-
250mm
-
Potato exposing rate:
-
>96%
-
Breakage rate:
-
≤2%

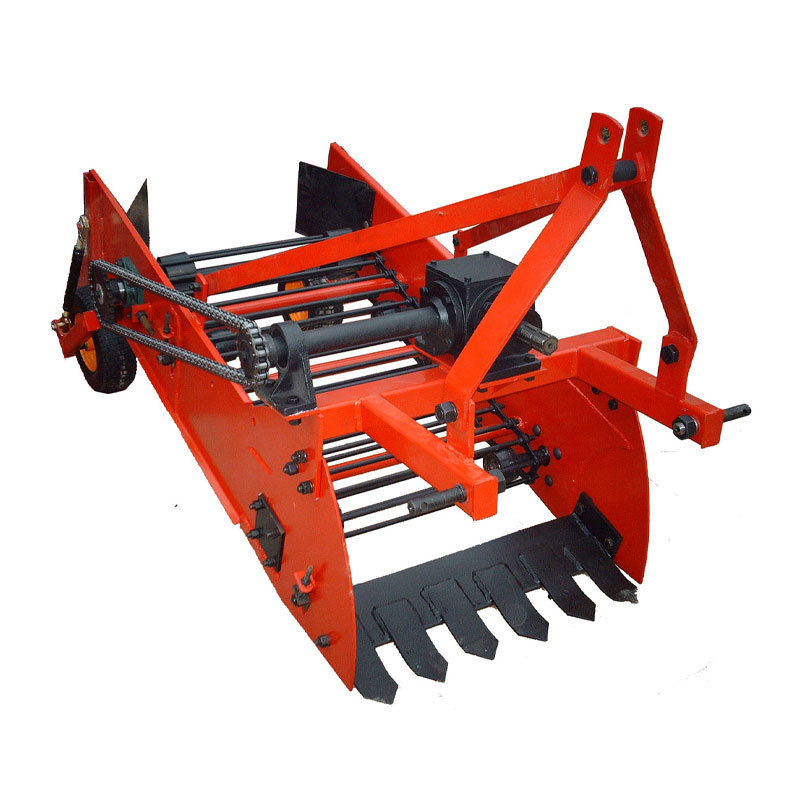

The potato is separated from the soil by a vibrating screen,which is composed of a plow and a screen.
The excavation depth is set by the third connection point on the tractor.
Because of its small size,it is suitable for digging new potatoes in narrow,flat and mountainous soil.
|
Model
|
4U-1
|
4U-1
|
4UZ-1
|
4U-2
|
4U-2B
|
4u-3
|
|||||
|
Row number
|
Single row(casting)
|
Single row(casting)
|
Single row(casting)
|
Double row(Casting)
|
Double
Row(Self-loading)
|
Double row(Self-loading)
|
|||||
|
cm
|
55-80
|
50-60
|
55-80
|
|
|
|
|||||
|
Productivity(mu/hr)
|
1-3
|
3-5
|
|
5-8
|
|
8-15
|
|||||
|
Total weight(Kg)
|
180
|
100
|
160
|
700
|
800
|
1200
|
|||||
|
Matching power(HP)
|
22-35
|
8-15
|
22-35
|
50-80
|
50-80
|
70-120
|
|||||
|
Working depth(cm)
|
25
|
20
|
25
|
25
|
25
|
25
|
|||||
|
Working width(m)
|
0.65
|
0.60
|
0.60
|
1.65
|
1.65
|
1.65
|
|||||
|
Potato-exposing rate(%)
|
≥96
|
|
|
|
|
|
|||||
|
Breakage rate(%)
|
≤2
|
|
|
|
|
|
|||||
|
Rev of power take-off shaft(RPM)
|
560/1250
|
1000
|
560/1250
|
560
|
560
|
560
|
|||||
|
Overall dimension(cm)
|
180*100*98
|
90*70*70
|
120*100*75
|
230*220*100
|
280*220*100
|
330*390*310
|
|||||
|
Packing dimension(cm)
|
165*85*45
|
85*70*65
|
150*90*70
|
200*190*45
|
220*190*45
|
260*220*100
|
|||||
Shandong Lisheng
Shandong Lisheng Machinery Manufacturing Co.,Ltd.is a technical agricultural equipment enter-prise specializing in the production of wheeledtractors and tractor accessories,integrating R&D,production,sales and service.The company always adheres to the policy of
"Quality first,customer first"and adheres to the development of 'science and technology,innovation,cooperation and win-win"
Concept and corporate vision,and strive to make"intelligent tractor.Benefit the people"a reality inthe near future.
