Quick Details
-
Moter Power:
-
0.75kw, 1.1kw, 1.5kw, 2.2kw, 3.0kw and so on
-
Pump Displacement (ml/r):
-
0.45, 0.75, 1.0, 1.6, 2.0, 2.5, 3.3, 4.2,5.8 and so on
-
Solenoid Valve Voltage:
-
DC12V, DC24V, AC24V, AC110V, AC220V, manual valve
-
Mounting Way:
-
Horizontal, Vertical
-
Mounting position:
-
valve block, bracket, oil tank, electric motor
-
System Pressure:
-
10mpa, 16mpa, 20mpa, 25mpa
-
Capacity of tank:
-
1.7L, 2.8L, 3.6L, 5.0L, 6.0L, 8.0L, 10.0L, 12.0L and so on
-
Circuit:
-
01-20
-
Port:
-
3/8" (BSPP/NPT) and so on
Quick Details
-
Brand Name:
-
YS
-
Place of Origin:
-
Jiangsu, China
-
Power Voltage:
-
AC110, AC220, AC380, DC12V, DC24V and so on
-
Moter Power:
-
0.75kw, 1.1kw, 1.5kw, 2.2kw, 3.0kw and so on
-
Pump Displacement (ml/r):
-
0.45, 0.75, 1.0, 1.6, 2.0, 2.5, 3.3, 4.2,5.8 and so on
-
Solenoid Valve Voltage:
-
DC12V, DC24V, AC24V, AC110V, AC220V, manual valve
-
Mounting Way:
-
Horizontal, Vertical
-
Mounting position:
-
valve block, bracket, oil tank, electric motor
-
System Pressure:
-
10mpa, 16mpa, 20mpa, 25mpa
-
Capacity of tank:
-
1.7L, 2.8L, 3.6L, 5.0L, 6.0L, 8.0L, 10.0L, 12.0L and so on
-
Circuit:
-
01-20
-
Port:
-
3/8" (BSPP/NPT) and so on
Product Description

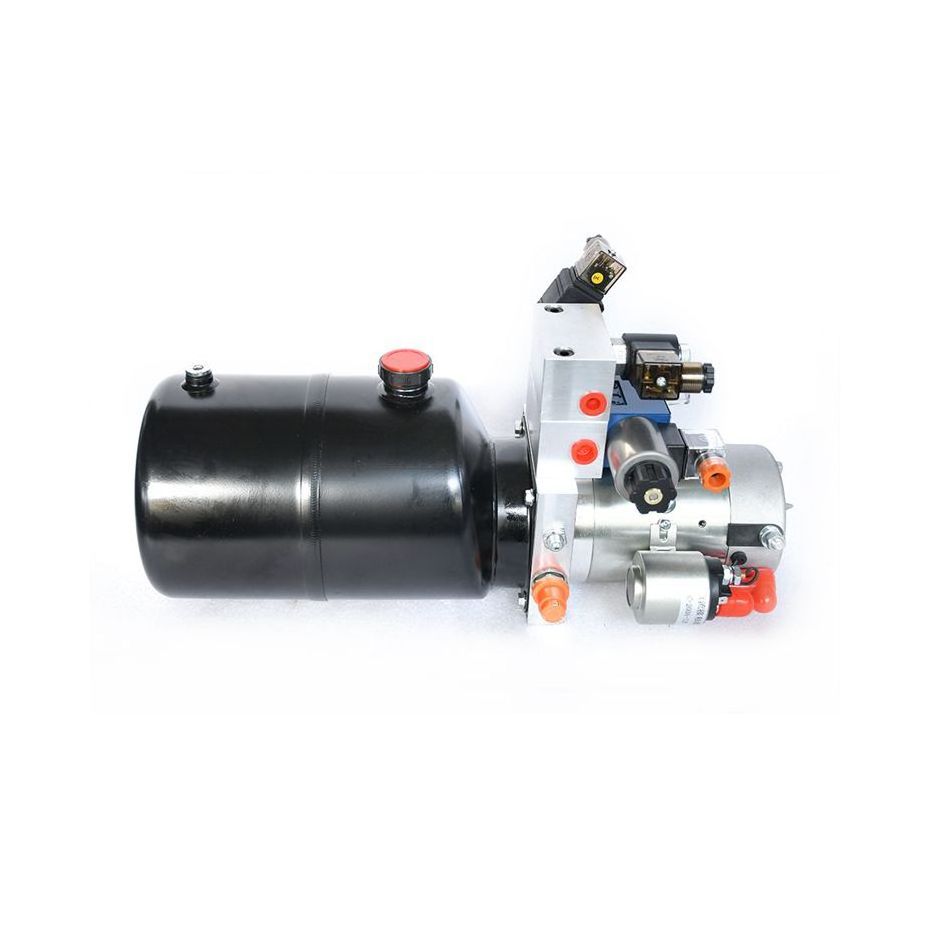

Hydraulic power unit
| Power Voltage | AC110, AC220, AC380, DC12V, DC24V or customized |
| Moter Power | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3.0kw or customized |
| Pump Displacement | 0.45ml/r, 0.75 ml/r , 1.0 ml/r , 1.6 ml/r , 2.0 ml/r , 2.5 ml/r , 3.3 ml/r , 4.2 ml/r ,5.8 ml/r or customized |
| Solenoid Valve Voltage | DC12V, DC24V, AC24V, AC110V, AC220V, manual valve |
| Mounting Way | Horizontal, Vertical |
| Mounting position | Valve block, bracket, oil tank, electric motor |
| System Pressure | 10mpa, 16mpa, 20mpa, 25mpa |
| Capacity of tank | 1.7L, 2.8L, 3.6L, 5.0L, 6.0L, 8.0L, 10.0L, 12.0L or customized |
| Circuit | 01-20 |
| Port | 3/8" (BSPP/NPT) or customized |
| Working | Continute working, short time working |
| Frequency | 50HZ, 60HZ |
