Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
0.6
-
Year:
-
2020
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SYNTOP
-
Model Number:
-
JYP210V
-
Voltage:
-
As custom's requirement
-
Dimension(L*W*H):
-
910*480*850mm
-
Weight (KG):
-
150 KG
-
Swing Over Bed:
-
210mm
-
Taper Of Spindle Bore:
-
MT3
-
Spindle Bore:
-
38mm
-
Step Of Spindle Speeds:
-
Variable speed
-
Range Of Spindle Speed:
-
0-2500rpm
-
Range of Metric Threads:
-
0.5-3mm
-
Top slide travel:
-
55mm
-
Cross slide travel:
-
75mm
-
Max. Swing Diameter (mm):
-
210 mm
Quick Details
-
Max. Length of Workpiece (mm):
-
400 mm
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
38 mm
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
0.6
-
Year:
-
2020
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SYNTOP
-
Model Number:
-
JYP210V
-
Voltage:
-
As custom's requirement
-
Dimension(L*W*H):
-
910*480*850mm
-
Weight (KG):
-
150 KG
-
Swing Over Bed:
-
210mm
-
Taper Of Spindle Bore:
-
MT3
-
Spindle Bore:
-
38mm
-
Step Of Spindle Speeds:
-
Variable speed
-
Range Of Spindle Speed:
-
0-2500rpm
-
Range of Metric Threads:
-
0.5-3mm
-
Top slide travel:
-
55mm
-
Cross slide travel:
-
75mm
-
Max. Swing Diameter (mm):
-
210 mm
Product Description
Features
Supersonic frequency hardened bed way.
Spindle speed readout.
Variable Speed.
DC motor
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.
Various threads cutting function available.
|

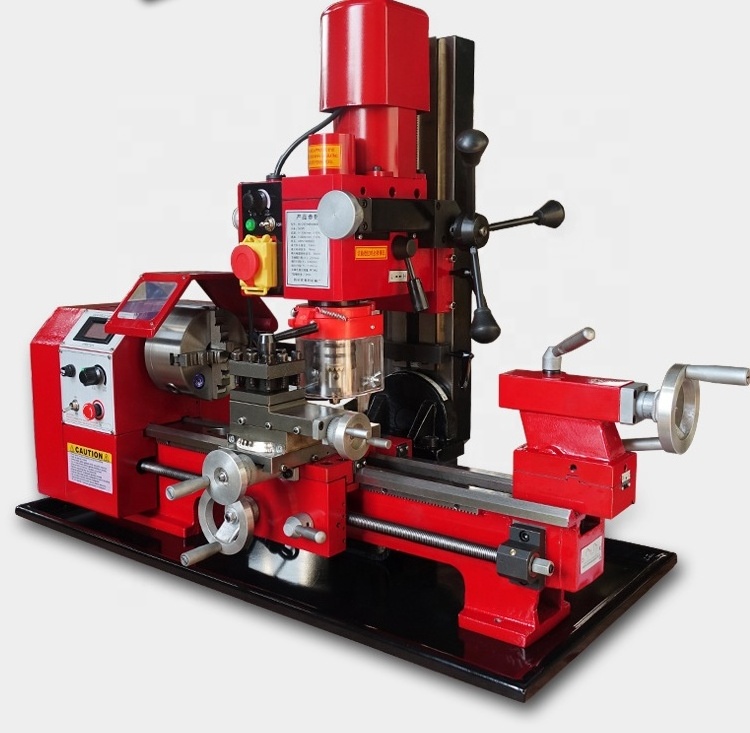

Specifications of JYP210V
|
|
|
||
|
Turning
|
Swing Over Bed
|
210mm
|
||
|
|
Distance Between Centers
|
400mm
|
||
|
|
Compound travel
|
55mm
|
||
|
|
Taper Of Spindle Bore
|
MT3
|
||
|
|
Diamenter of chuck
|
125mm
|
||
|
|
Spindle Bore
|
38mm
|
||
|
|
Width of bed
|
100mm
|
||
|
|
Tool Of Tailstock Quill
|
MT2
|
||
|
|
Tailstock quill travel
|
60mm
|
||
|
|
Cross slide travel
|
75mm
|
||
|
|
Spindle Speed
|
0-2500rpm
|
||
|
|
Range of Metric Thread
|
0.5-3mm
|
||
|
|
Motor
|
600W
|
||
|
Drilling and Milling
|
Max Drilling Capacity
|
13mm
|
||
|
|
Max. End Milling Capacity
|
16mm
|
||
|
|
Max. Face Mill Capacity
|
30mm
|
||
|
|
Z Travel
|
220mm
|
||
|
|
Spindle Taper
|
MT3
|
||
|
|
T-slot Size
|
10mm
|
||
|
|
Range Of Spindle Speed
|
L: 0-1100 rpm, H: 0-2500rpm
|
||
|
|
Motor
|
550W
|
||
|
|
Packing Size
|
900*550*930mm
|
||
|
|
G.W
|
150kgs/180kgs
|
||
We have other bigger model lathe mill combo machine, HQ500, HQ800, JYP250VF, JYP290VF, JYP300VF, CQ6230BZ. Most models are in stock now. pls check the pictures following:
JYP300VF
JYP290VF
JYP250VF
