2.Spindle box
3.Wire laying Mechanism
4.Tail
5.Decoiler
6.Electrical Control System
- Product Details
- {{item.text}}
Quick Details
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ORINNO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Certification:
-
CE ISO
Products Description
|
Items
|
Data
|
|
Winding height
|
800mm or customized
|
|
Winding diameter
|
600mm or customized
|
|
Winding speed
|
400RPM
|
|
Main motor power
|
4.5KW or customized
|
|
Round wire diameter
|
Max. 5mm
|
|
Flat wire
|
4*15mm
|
|
Layer insulation width
|
800mm or customized
|
Machine Composition
1.Machine body
2.Spindle box
3.Wire laying Mechanism
4.Tail
5.Decoiler
6.Electrical Control System
2.Spindle box
3.Wire laying Mechanism
4.Tail
5.Decoiler
6.Electrical Control System
Main Feature
Smooth start and braking of spindle by using stepless velocity regulation. Tight laying of coil wires by tensioning device and
stepless automatic wire laying mechanism. Up-to-date PLC controlled,electronic counter (automatic counting and power off memory )
are used.
stepless automatic wire laying mechanism. Up-to-date PLC controlled,electronic counter (automatic counting and power off memory )
are used.
Application

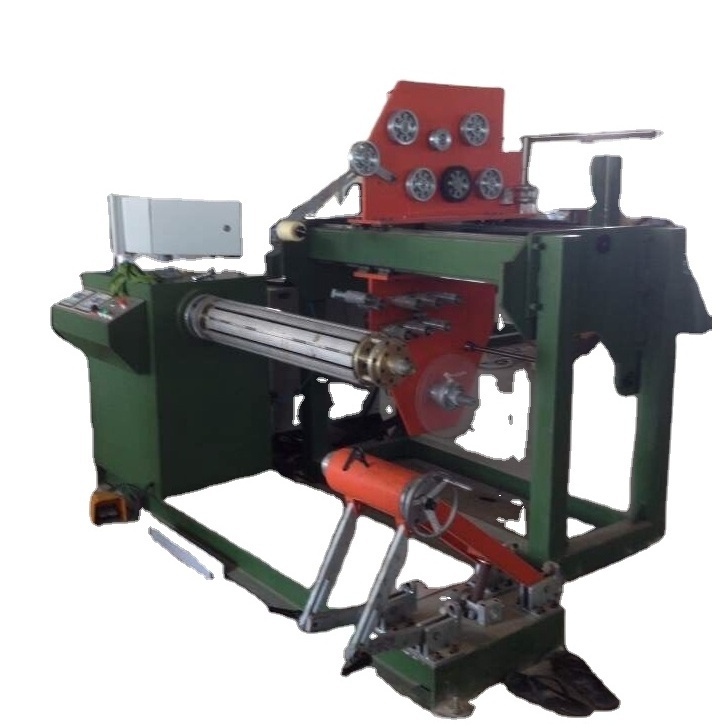

Automatic winding machine is mainly used for winding coils of medium and small size transformers.
