Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Baihao
-
Model Number:
-
BL1220B2VV-ARL
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
8400*2200*1880mm
-
Weight:
-
4000 KG
-
Marketing Type:
-
New Product
-
After-sales Service Provided:
-
Online
-
Product name:
-
Fully Automatic Bag Making Machine
-
After Warranty Service:
-
Onlinesupport
-
Application:
-
PLACSTIC BAG PRODUCING
-
Name:
-
Bga Making Machine
-
Function:
-
Producing Plastic Bag
-
Suitable material:
-
LDPE HDPE Biodegradable Film
-
Keywords:
-
Bag Marking Machine
-
Usage:
-
Pastic Bag
-
Type:
-
Full-auto Plastic Bags Making Machine
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
GARBAGE BAG
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Baihao
-
Model Number:
-
BL1220B2VV-ARL
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
8400*2200*1880mm
-
Weight:
-
4000 KG
-
Marketing Type:
-
New Product
-
After-sales Service Provided:
-
Online
-
Product name:
-
Fully Automatic Bag Making Machine
-
After Warranty Service:
-
Onlinesupport
-
Application:
-
PLACSTIC BAG PRODUCING
-
Name:
-
Bga Making Machine
-
Function:
-
Producing Plastic Bag
-
Suitable material:
-
LDPE HDPE Biodegradable Film
-
Keywords:
-
Bag Marking Machine
-
Usage:
-
Pastic Bag
-
Type:
-
Full-auto Plastic Bags Making Machine
Products Description

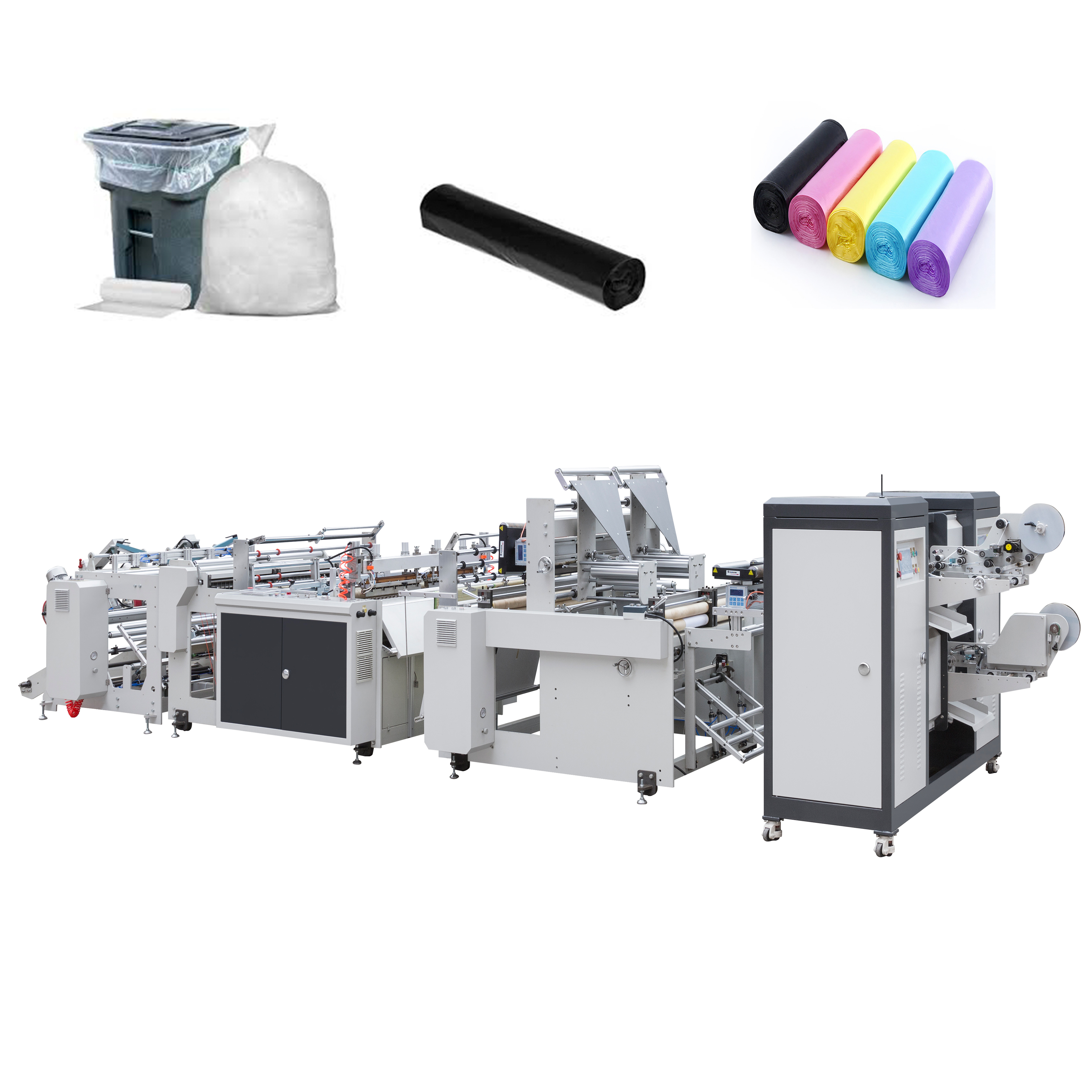

BL1220B2VV-ARL Double lines garbage bag making machine
The BL1220B2-AR equipment is for making rolling garbage bags in efficient production by automatically changing plastic rolls. The rewinder rolls are tight and in order. Sealing type can be Star sealing. And it uses heat sealing and heat cutting, it also suits for printing and non-printing bag making. The materials for making bag can be HDPE, LDPE, LLDPE, PLA or any other biodegradable materials.
Machine type: Feeding Folded Film Rolls Before Sealing, Double V-folding Devices
Product Video
Product Paramenters
|
Model
|
BL1220B2VV-ARL
|
|
|
Voltage
|
380V
|
|
|
Total Power
|
25KW
|
|
|
Production roll width
|
100-240mm
|
3.94 - 9.45 inches
|
|
Bag Width
|
250-500mm
|
9.84 - 19.69 inches (Extra 47.24 inches)
|
|
Bag Length
|
300-1000mm
|
11.81 - 39.37 inches
|
|
Line Speed
|
100-120m/min
|
|
|
Production Speed
|
400-480pcs/min
|
|
|
Machine Weight
|
4000KG
|
|
|
Machine length
|
8400mm
|
|
|
Machine Width
|
2200mm
|
|
|
Machine Height
|
1880mm
|
|
Product Details
High precision perforation heat sealing & cutting
EPC
PLC touch screen control
Automatic rewinding unit with high-speed auto sticker
V-folding device
Production Bag Samples
