Quick Details
-
Screw Speed (rpm):
-
75 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHAOXU
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
17600X5700X3300MM
-
Power (kW):
-
130
-
Weight:
-
14 KG
-
Applicable Industries:
-
Luggage industry Refrigerator industry
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine type:
-
ABS PC Two Lines Plastic Sheet Extruder Machine YX-21AP
-
Sheet thickness:
-
1-4MM
-
Sheet width:
-
1-900MM
-
Used for:
-
Luggage/Suitcase making machine
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
40:1
-
Screw diameter (mm):
-
110/70
-
Screw Speed (rpm):
-
75 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHAOXU
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
17600X5700X3300MM
-
Power (kW):
-
130
-
Weight:
-
14 KG
-
Applicable Industries:
-
Luggage industry Refrigerator industry
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine type:
-
ABS PC Two Lines Plastic Sheet Extruder Machine YX-21AP
-
Sheet thickness:
-
1-4MM
-
Sheet width:
-
1-900MM
-
Used for:
-
Luggage/Suitcase making machine
Products Description

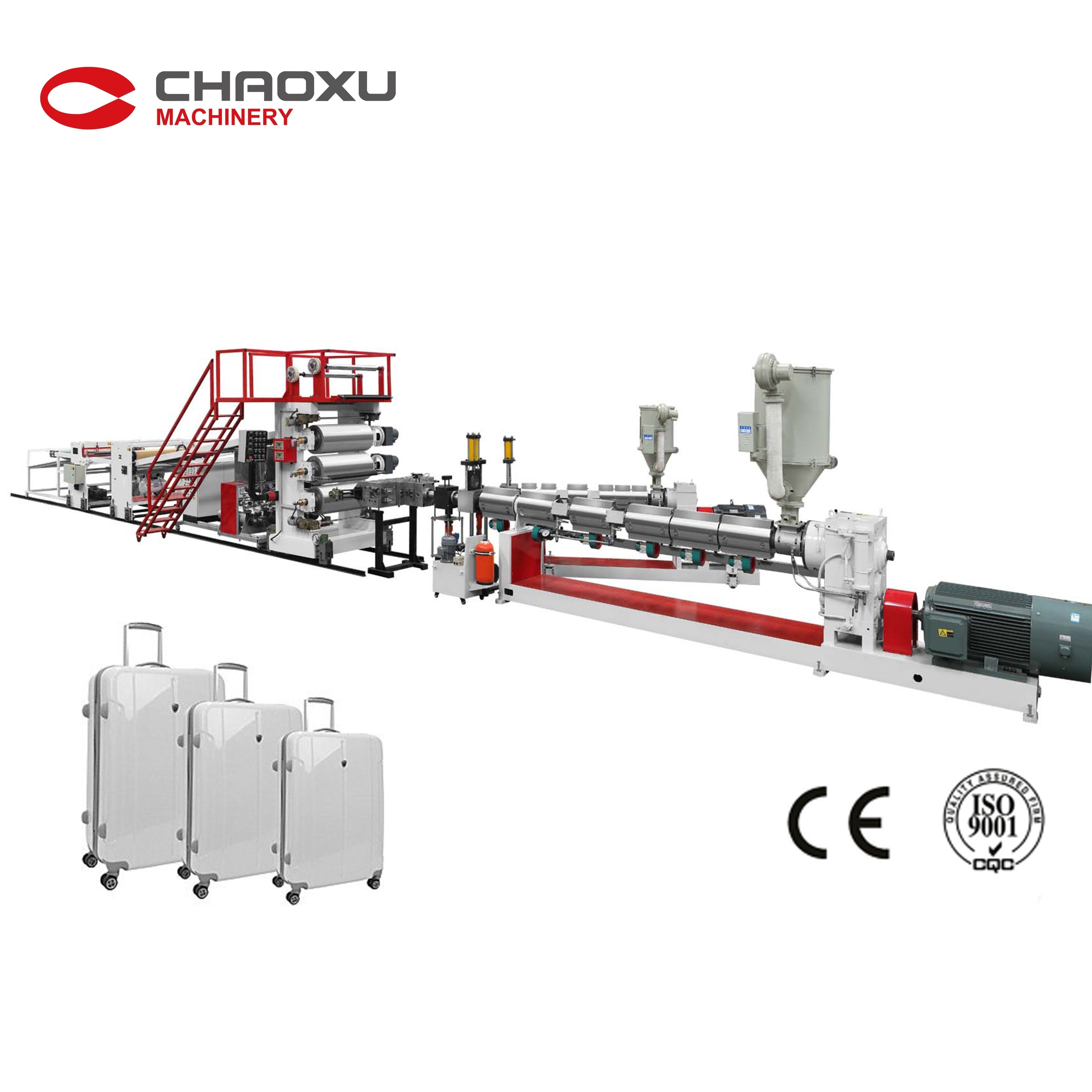

Abs Pc Sheet Making Machine Luggage Plate Extrusion Machine
|
Model
|
YX-23P
|
YX-22P
|
YX-21AP
|
YX-21P
|
|||
|
Plate thickness
|
1-4MM
|
|
|
|
|||
|
Plate Width
|
1-900MM
|
|
|
|
|||
|
Weight
|
19.5T
|
16T
|
14T
|
13T
|
|||
|
Total Power
|
200KW
|
170KW
|
130KW
|
120KW
|
|||
|
Overall Dimension
|
18300*7000*3300MM
|
18300*5700*3300MM
|
17600*5700*3300MM
|
18000*4000*3300MM
|
|||
|
Auto Grade
|
Full Auto
|
|
|
|
|||
|
Brand of Main Electrical Parts
|
Schneider, RKC, Rittal, Siemens, etc.
|
|
|
|
|||
|
Diameter of Roller
|
400MM or customized
|
|
|
|
|||
|
Diameter of Barrel
|
100/70/50MM or customized
|
|
|
|
|||
|
Lamination Device
|
Included, printed film on the sheet is ok
|
|
|
|
|||
|
Distribution Device
|
Included, more layers sheet can be made
|
|
|
|
|||
|
Layers of Sheet
|
1-5 layers
|
1-3 layers
|
1-3 layers
|
1 layer
|
|||
Extrusion Screws
Three-roller Calender
Mould
Hauling Machine
Cutting Machine
Description:
1. Sheet Extrusion Machine is
a combination of extruder, mould, three roll calender, temperature controller, hauling machine, cutting machine and electric control cabinet.
2.
Screw and barrel
adopt superior alloy steel (38CrMoAIA) with nitriding treatment, which is
high hardness, strong corrosions resistance and long operating life.
3. Good plasticizing, high output and
stability,
full automatic controlled by PLC.
4.
This machine is suitable for mono-layer or multi-layer ABS, PC, PS, HDPE plastic sheet.
It's widely used in the fields of luggage, refrigerator, air conditioner, advertisement, bathroom, automotive trim etc.
