Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Welfound
-
Model Number:
-
0001
-
Product name:
-
Screw Photovoltaic Pile
-
Surface treatment:
-
Hot Dip Galvanized, Powder coated
-
Application:
-
Building Construction
-
Certificate:
-
ISO9001:2015, BSCI
-
Size:
-
Many sizes
-
MOQ:
-
5000PCS
-
Port:
-
Tianjin Port
-
Packing:
-
steel pallet
-
Raw Material:
-
Q235B
-
Payment Terms:
-
TT 30% Deposit
Quick Details
-
System of Measurement:
-
Metric
-
Material:
-
Steel
-
Capacity:
-
1000kg
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Welfound
-
Model Number:
-
0001
-
Product name:
-
Screw Photovoltaic Pile
-
Surface treatment:
-
Hot Dip Galvanized, Powder coated
-
Application:
-
Building Construction
-
Certificate:
-
ISO9001:2015, BSCI
-
Size:
-
Many sizes
-
MOQ:
-
5000PCS
-
Port:
-
Tianjin Port
-
Packing:
-
steel pallet
-
Raw Material:
-
Q235B
-
Payment Terms:
-
TT 30% Deposit
Product Information

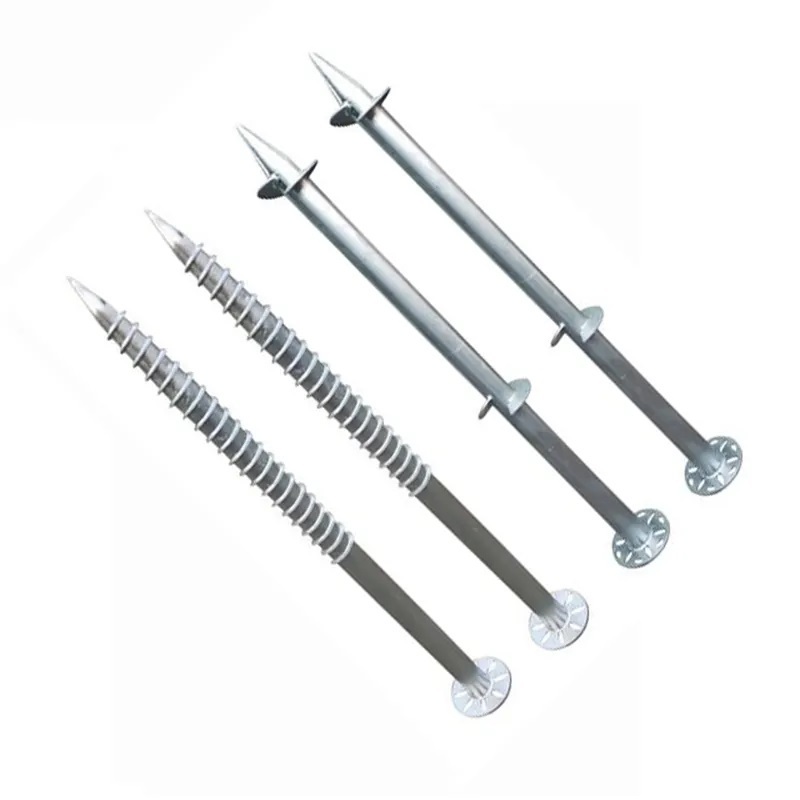

Ground screw system is a modern foundation system.Using the drilling machine can easily put the screw into the earth in minutes, which makes it the most efficient and cost-saving footing solution.
The ground screw we supply has stronger bearing capacity, pull-out resistance and horizontal resistance, which make the ground screw resistant to the side friction occurred when screwing into the ground. The surface of the ground screw is galvanized, which means it is corrosion resistant and anti-rust. So it has a long life and can be reused. Additionally, it has better stability for saving the installation time and costing effectively.
Feature & Advantage
Advantages
:
--Grasp the earth more firmly
--Strong and durable
--Cost effectively
--Saving time: no digging and no concrete
--Easy and fast to install
--Long life time
--Environment friendly: no damage to surrounding area
--Reusable: fast and inexpensive to relocate
--Corrosion resistant, etc
High Quality Earth Anchor Screw Pile Foundation Solar Ground Screw Post Anchor
Solar has developed different series of screws to meet varied applications and lands . The material is high quality Q235,with the surface treatment : hot-galvanizaion ,so that to make sure the excelent anti-corrosie and 20 years duration.
|
Name
|
Ground screw anchor
|
|
|
||
|
Material
|
Steel Q235
|
|
|
||
|
Pipe Diameter
|
48mm, 60mm, 65mm, 68mm, 76mm, 89mm, 114mm
|
|
|
||
|
Wall Thickness
|
2.5mm, 2.75mm, 3.0mm, 3.25mm, 3.5mm, 4.0mm, or as required
|
|
|
||
|
Length
|
550mm, 580mm, 700mm, 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm, 2500mm, 3000mm
|
|
|
||
|
Flange Type
|
D180x8mm, D200x8mm, D220x8mm, or as required
|
|
|
||
|
Finish
|
Hot dip galvanized
|
|
|
||
|
MOQ
|
500 PCS
|
|
|
||
|
Sample time
|
3-7 days
|
|
|
||
|
Service Life
|
More than 25 years life service
|
|
|
||
|
Usage
|
for construction and building foundation
|
|
|
||
|
Foundation
|
sandy, loosening soil, tight soil, etc
|
|
|
||
|
Characteristics
|
Rust-proof; Good tension support;
|
|
|
||
|
Package
|
pallet
|
|
|
||
|
Payment Terms
|
30% prepayment ,the balance at sight B/L copy
|
|
|
||
|
Delivery Time
|
35~40 days after receipt of deposit.
|
|
|
||
Workshop
Spiral process flow chart
