Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JMTech
-
Model Number:
-
JM-X2UV
-
Dimensions:
-
105*56*35mm
-
Frequency Range:
-
136-174MHz 400-480MHz
-
Color:
-
Black walkie talkie
-
Product Name:
-
Dual Band Walkie Talkie
-
Output Power:
-
5 Watts walkie talkie
-
Battery:
-
2500mAh
-
Function:
-
IP67
-
Keyword:
-
dual band radio
-
Frequency:
-
136-174MHz 400-480MHz
-
Battery type:
-
Li-Lon
-
Warranty:
-
1 Year
-
Feature:
-
VOX
Quick Details
-
Talk Range:
-
5-10km
-
Terminal style:
-
Handheld
-
Storage Channel:
-
128
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JMTech
-
Model Number:
-
JM-X2UV
-
Dimensions:
-
105*56*35mm
-
Frequency Range:
-
136-174MHz 400-480MHz
-
Color:
-
Black walkie talkie
-
Product Name:
-
Dual Band Walkie Talkie
-
Output Power:
-
5 Watts walkie talkie
-
Battery:
-
2500mAh
-
Function:
-
IP67
-
Keyword:
-
dual band radio
-
Frequency:
-
136-174MHz 400-480MHz
-
Battery type:
-
Li-Lon
-
Warranty:
-
1 Year
-
Feature:
-
VOX

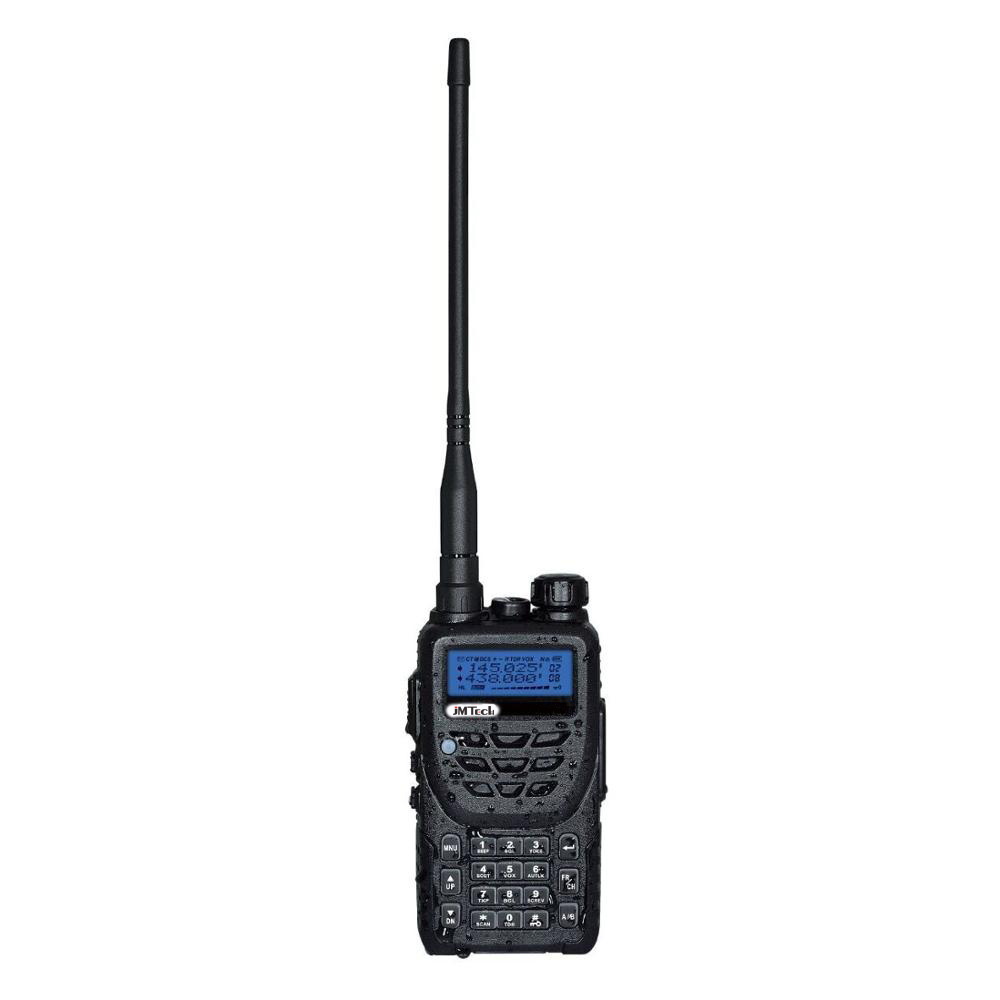

discount ham radio hf transceiver 5W Dual Band Cheap strong walkie talkie professional two way radio walkie talkie JM-X2UV
Main features:
| Dual band, dual display, dual standby |
| 128 memory channels |
| A/B band independent operation |
| W/N band selective |
| VOX function |
| PTT ANI ID code |
| Built in CTCSS/DCS and auto scan |
| FM radio |
| Tri-color backlight |
| H/L power selective |
| Emergency alarm |
| DTMF |
| Auto keypad lock |
| Busy channel lock-out |
| PC/keyboard channel name editing |
| TOT function |
| IP66 waterproof |
| General Specifications | |
| Power Supply | 7.5V DC ±20% |
| Operating Temperature | -25℃~ + 60℃ |
| Number of Channels | 128 |
| Dimensions: H x W x D (mm) | 110 x 55 x 35 (mm) |
| Weight: (g) | 195g |
| Transmitter Specifications | |
| Frequency Range | 135~175MHz, 400MHz~480MHz |
| Frequency Stability | ±2.5ppm |
| Output Power(high/low) | VHF:5W/1W UHF:5W/1W |
| Modulation Limiting | <5KHz @ 25KHz,<2.5KHz @ 12.5KHz |
| FM Hum&Noise | 45dB @ 25KHz |
| Conducted/Radiated Emission | -36dBm < 1GHz, -30dBm > 1GHz |
| Adjacent Channel Power | <-65dB @ 25KHz,<-65bB @ 12.5KHz |
| Transmitting | ≤1.5A |
| Audio Distortion | < 5% |
| Receiver Specifications | |
| Sensitivity(12 dB SINAD)EIA | 0.20μV @ 12.5KHz/25KHz typical |
| Intermodulation EIA | >60dB |
| Intermodulation Rejection | 70dB |
| Rated Audio | 1W |
| Standby Current | 30mA |
