1. Vehicle intelligent management, write CARDS effect: parking lot, highway no parking charge, customs clearance, automatic weighing, etc
2. Personnel management of entrance guard, write CARDS effect: school gate in and out management, factory in and out management.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Getsmart
-
Reading Distance:
-
60~80cm
-
Interface:
-
Double USB Desktop UHF RFID board module
-
Antenna Gain:
-
3 dbi
-
Free Software and Demo:
-
C++, c#, java,
-
Writing Range:
-
1~10cm
-
Feature:
-
Can encode the card tag directly with this demo
-
SDK:
-
Free SDK and technical support
-
Output format:
-
up to 7 different output formats
Quick Details
-
Frequency:
-
860-960mhz
-
Protocol:
-
ISO 18000-6C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Getsmart
-
Reading Distance:
-
60~80cm
-
Interface:
-
Double USB Desktop UHF RFID board module
-
Antenna Gain:
-
3 dbi
-
Free Software and Demo:
-
C++, c#, java,
-
Writing Range:
-
1~10cm
-
Feature:
-
Can encode the card tag directly with this demo
-
SDK:
-
Free SDK and technical support
-
Output format:
-
up to 7 different output formats
Product Description
Free Demo SDK USB Portable Desktop ISO18000 6C Gen 2 UHF RFID Module Board Reader with antenna
This Desktop ISO18000 6C Gen 2 UHF RFID Module Reader Writer can support 860~960mhz ISO18000-6C Gen2, and provides automatic reading card and write CARDS Free DEMO software. It is convenient for customer to read and write CARDS
1. Reading and writing in equipment limited area above 0-60 CM of the narrow space
2.Provide setups SDK, and can provide C#,VC,VB,Java development routines;
3.EPC area, reservations, the user area support locking unlock function, can be used for privacy and security requirements of high occasion
4.Support adjacent discriminant function, can prevent with a card in short time (1-255 seconds adjustable) upload repeat inside
5.Supports fast write operation, convenient for reading and writing;
6. Wake up the tag:the tag only be waked up when communicate with reader, prevent the disturbing from other tags, ensure the correct information between reader and system's tag
7. Read data: it can get the ID number of tag, and also get the data which in the specify area, multi tags reading will be available.
8. Write data: can write data in specify tag's storage area.
9. Can connect with the device which has W26 and W34 interface, no need to develop.
10. Communicate with controller or PC, that can get the data; provide SDK development kit, user can develop it.
11.Has USB keyboard input port, get the data whatever the cursor where is
|
Antenna gain
|
3dBi circular polarization
|
|
|
Protocol
|
ISO18000-6C(EPC C1 GEN2)
|
|
|
Communication port
|
Double USB port: Left side USB port connect with software, parameter change, development; Right Side USB port is an analog keyboard function( serial port ) for 7 different Data output interface to meet different applications
|
|
|
Software & SDK
|
DEMO and C#,VC,VB,Java,DELPH, etc.,
|
|
|
Encryption
|
Can be directly encrypted, copy prevention.
|
|
|
Reading range
|
Stable reading 60~80cm
|
|
|
Writing range
|
Stable writing 0~10cm
|
|
|
Physical parameters:
|
|
|
|
Power
|
USB
|
|
|
Output power
|
0~18±1dBm
|
|
|
Working temperature
|
-20℃~+75℃
|
|
|
Storage temperature
|
-45℃~+85℃
|
|
|
Item size
|
120x78x28mm
|
|
|
Package size
|
180x120x50mm
|
|
|
Net weight
|
200g
|
|
|
Shell material
|
ABS
|
|

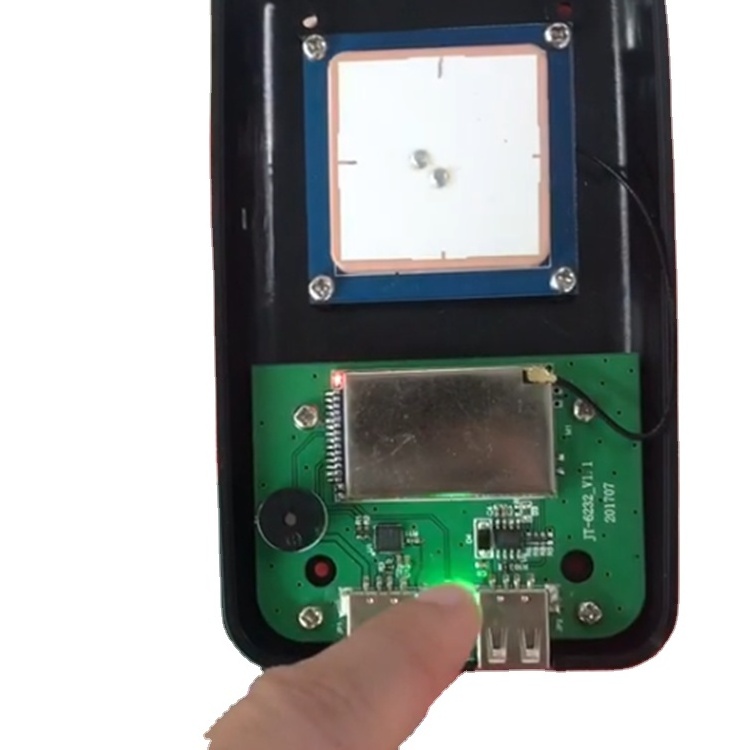

Products & SDK Show
Application
Desktop ISO18000 6C Gen 2 UHF RFID Module Reader Writer Encoder
FAQ
Q: Are you trading company or manufacturer ?
A: We are a leading professional manufacturer of UHF RFID reader, UHF RFID antenna and UHF RFID tag.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, normally it needs to pay; But can deduct this charge when bulk orders
Q: What is your terms of payment ?
A: 100% T/T or paypal in advance ,balance before shippment.
