Quick Details
-
Warranty(Year):
-
1-Year
-
Support Dimmer:
-
.
-
Input Voltage(V):
-
.
-
Lamp Luminous Flux(lm):
-
lm
-
Working Temperature(℃):
-
-40 - 90
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
Super Brite/ All Brite
-
Emitting Color:
-
rgbw
-
LED Light Source:
-
5050 smd
-
Certification:
-
RoHS
Quick Details
-
Color Temperature(CCT):
-
., Warm White
-
Type:
-
Beam Lights
-
Application:
-
.
-
Warranty(Year):
-
1-Year
-
Support Dimmer:
-
.
-
Input Voltage(V):
-
.
-
Lamp Luminous Flux(lm):
-
lm
-
Working Temperature(℃):
-
-40 - 90
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
Super Brite/ All Brite
-
Emitting Color:
-
rgbw
-
LED Light Source:
-
5050 smd
-
Certification:
-
RoHS
Specification

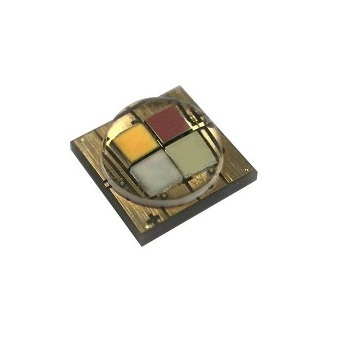

5050 10W RGB Warm White LED
AT5050H-10LERGBX
Product Description
Dimensions
Features
•
Compact light source
•
R, G, B, X four color in one package
• Maximum drive current: 700mA per LED die
• Lead free reflow soldering
• Superior ESD protection
•
RoHS compliant
Absolute Maximum Ratings
|
Parameter
|
Red/ Green/ Blue/ Warm White
|
|
DC Forward Current (mA)
|
700
|
|
Peak Pulsed Forward Current (mA)
|
1000 (less than 1/10 duty cycle@1KHz)
|
|
ESD Sensitivity
(HBM per MIL-STD-883E Method 3015.7) |
±4000 V(Class III)
|
|
LED Junction Temperature
|
120 °C
|
|
Operating Board Temperature at Maximum DC Forward Current
|
-40°C - 90°C
|
|
Storage Temperature
|
-40°C -120°C
|
|
Soldering Temperature
|
JEDEC 020c 260°C
|
|
Allowable Reflow Cycles
|
3
|
|
Reverse Voltage
|
Not designed to be driven in reverse bias
|
Flux Characteristics , TJ= 25°C
Emitter Reel Packaging
