Quick Details
-
Weight:
-
3800 KG, 3800kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Implements:
-
Front end loader, Cultivator
-
Color:
-
Green
-
Engine:
-
YTO Diesel Engine
-
Options:
-
Hydraulic Valve
-
Clutch:
-
Dual-stage
-
Tire:
-
12.4-24/16.9-34
-
Product name:
-
Farming tractor with front end loader
-
Product Keywords:
-
tractor spare part,tractor parts ford,power tractor price in india
Quick Details
-
Rated Power (HP):
-
100
-
Brand Name:
-
YTO
-
Place of Origin:
-
Shandong, China
-
Weight:
-
3800 KG, 3800kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Implements:
-
Front end loader, Cultivator
-
Color:
-
Green
-
Engine:
-
YTO Diesel Engine
-
Options:
-
Hydraulic Valve
-
Clutch:
-
Dual-stage
-
Tire:
-
12.4-24/16.9-34
-
Product name:
-
Farming tractor with front end loader
-
Product Keywords:
-
tractor spare part,tractor parts ford,power tractor price in india

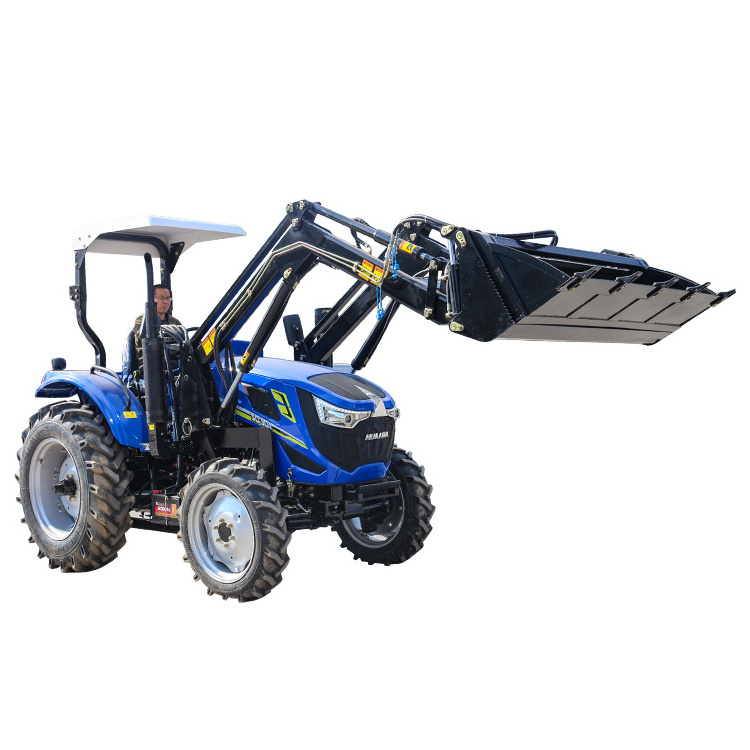

100HP Farm Tractor With Front Loader
Product Description
Product Description
| Main Technical Specifications: | |||
| Model | HW1004 | ||
| Type | 4×4 Wheeled Type | ||
| Dimensions of Tractor (mm) | Length | 4480 | |
| Width | 2050 | ||
| Height | 2570 | ||
| Tread | Front Wheel | 1610(usual) | |
| Rear Wheel | 1608(usual) | ||
| Wheel Base | 2480 | ||
| Min. Ground Base | 405(the bottom of front axle) | ||
| Min. Usage Mass(kg) | 3900 | ||
| Engine | Model | YTO LR4M3Z | |
| Type | Vertical, water cooled and 4-stroke | ||
| Rated Power(kw) | 66.2 | ||
| Rated Rev.(r/min) | 2300 | ||
| Fuel | Diesel Oil | ||
| Tire | Front Wheel | 12.4-24 | |
| Rear Wheel | 16.9-34 | ||
| Clutch | Dry-friction, single disc and two stage | ||
| Steering | Hydraulic type | ||
| Transmission Box | 4×(2+1)×2 Composed | ||
| Suspension Type | Post Positioned Tri-point Suspension Catalogue Ⅱ or Ⅲ (optional) | ||
| PTO |
Type and Rev.(r/min) |
Post-position, independent,
760/850 or 540/1000 or 540/760 (optioanl) |
|
| Spline Size | I38 Rectangle Spline with 8 teeth | ||
Details Pictures
The Details Of 100HP Tractor
